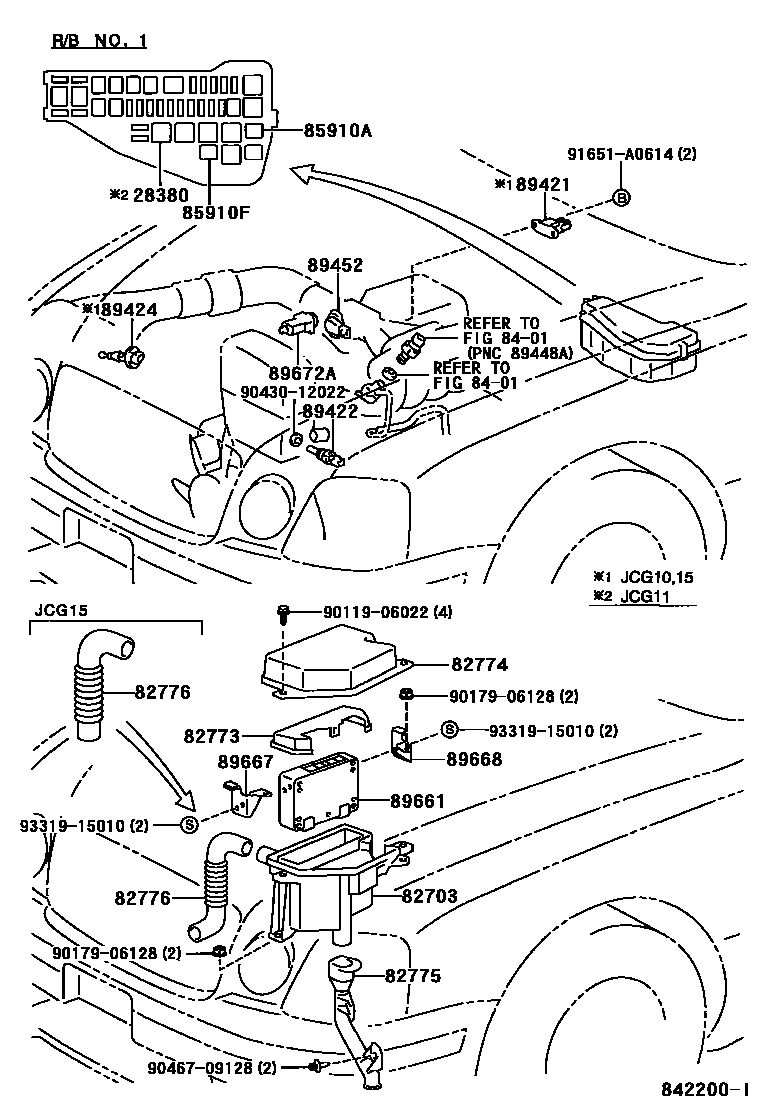

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
82773HOOD, ENGINE ROOM ECU
82776DUCT, ENGINE ROOM ECU OUTLET
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906022
main90119-06022
9017906128
main90179-06128
9043012022
main90430-12022
9046709128
main90467-09128
91651A0614
main91651-A0614
9331915010
main93319-15010
23 parts on this diagram · 2 diagrams in section
