WIRING & CLAMP

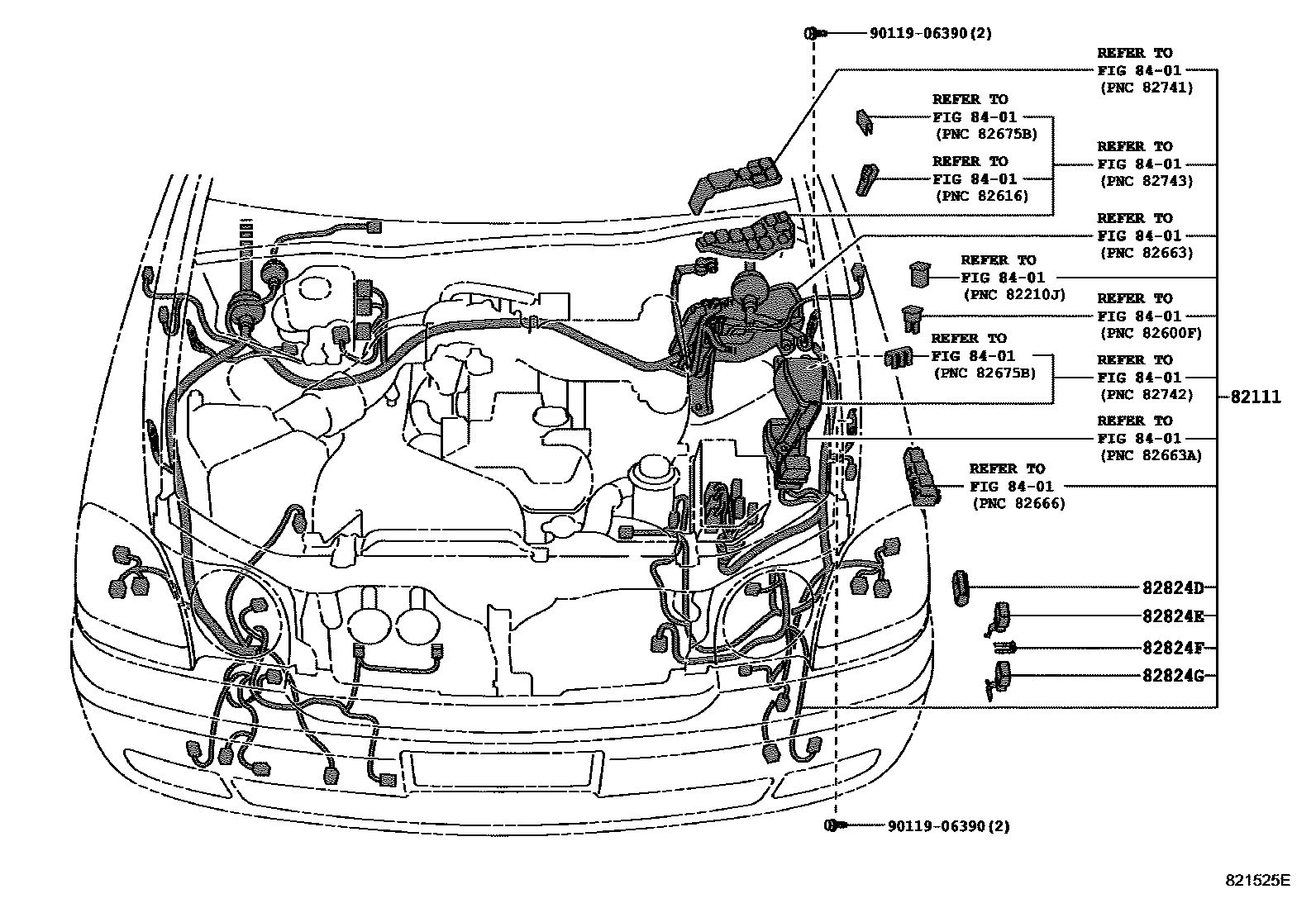

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-51010i199805-200005

main82111-51011i200005-200104

main82111-51012i200104-200404

main82111-51020i199805-200005

main82111-51021i200005-200104

main82111-51022i200104-200404

main82111-51030i199805-200005

main82111-51031i200005-200104

main82111-51032i200104-200404

main82111-51040i199805-200005

main82111-51041i200005-200104

main82111-51042i200104-200404

main82111-51050i199912-200005

main82111-51051i200005-200104

main82111-51052i200104-200404

main82111-51070i200104-200404

main82111-51071i200404-200512

main82111-51072i200512

main82111-51080i200104-200404

main82111-51081i200404-200512

main82111-51082i200512

main82111-51090i200104-200404

main82111-51091i200404-200512

main82111-51092i200512

main82111-51100i200104-200404

main82111-51101i200404-200512

main82111-51102i200512

main82111-51110i200104-200404

main82111-51111i200404-200512

main82111-51112i200512

82824CONNECTOR, WIRING HARNESS

main82824-28180i200203-200404

main82824-51020i200404-200607

82824DCONNECTOR, WIRING HARNESS

main82824-12210i199805-200104

82824ECONNECTOR, WIRING HARNESS

main82824-20130i199805-200104

82824FCONNECTOR, WIRING HARNESS

main82824-24010i199805-200104

82824GCONNECTOR, WIRING HARNESS

main82824-48010i199805-200104

8401

9011906390

main90119-06390

8 parts on this diagram · 11 diagrams in section
