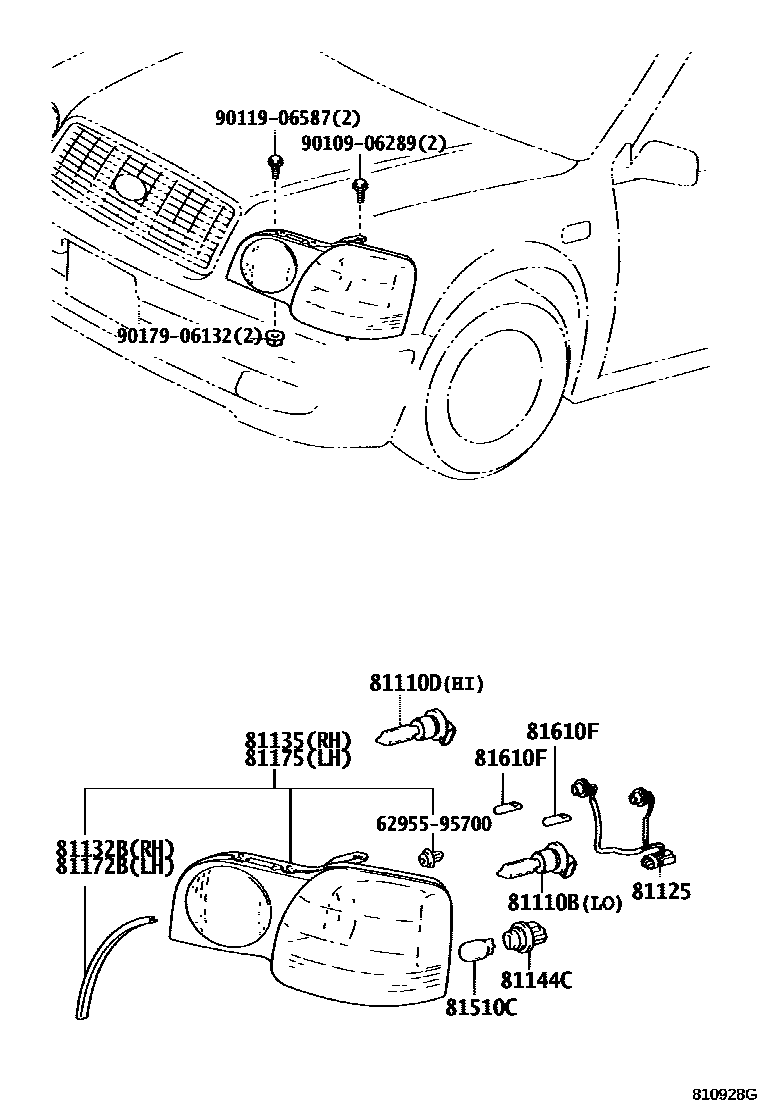

HEADLAMP

0001 1 0002 1 0003 1������-�� �������� 0004 1

81110HEADLAMP ASSY, RH

main81110-51050iJCG1#200104-200512

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040iJCG1#199805-200104

sub90981-13047

main90981-13047iJCG1#200104-200404

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041iJCG1#199805-200511

sub90981-13046

81125CORD, HEADLAMP

main81125-51010iJCG1#199805-200404

main81125-51050iJCG1#200104-200511

main81125-51110iJCG1#200512

81132BGASKET, HEADLAMP LENS

main81132-51010iJCG1#199805-200104

81135UNIT ASSY, HEADLAMP, RH

main81130-51010iJCG1#199805-200103

sub81130-51011

main81130-51011iJCG1#200103-200104

main81130-51020iJCG10,11199905-200103

sub81130-51021

main81130-51021iJCG10,11200103-200104

main81140-51050iJCG1#200104-200512

main81145-51110iJCG1#200512

81144COVER, HEADLAMP, NO.1

main81135-3A150iJCG1#200104-200511

81144CCOVER, HEADLAMP SOCKET

main90075-65006iJCG1#200104-200512

main90075-99128iJCG1#199805-200104

81172BGASKET, HEADLAMP LENS

main81172-51010iJCG1#199805-200104

81175UNIT ASSY, HEADLAMP, LH

main81070-51050iJCG1#200104-200512

main81170-51010iJCG1#199805-200103

sub81170-51011

main81170-51011iJCG1#200103-200104

main81170-51020iJCG10,11199905-200103

sub81170-51021

main81170-51021iJCG10,11200103-200104

main81185-51110iJCG1#200512

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iJCG1#199805-200104

main90981-15011iJCG1#200104-200511

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iJCG1#199805-200511

6295595700SEAL, ROOF SIDE VENT

main62955-95700

9010906289

main90109-06289

9011906587

main90119-06587

9017906132

main90179-06132

16 parts on this diagram · 4 diagrams in section
