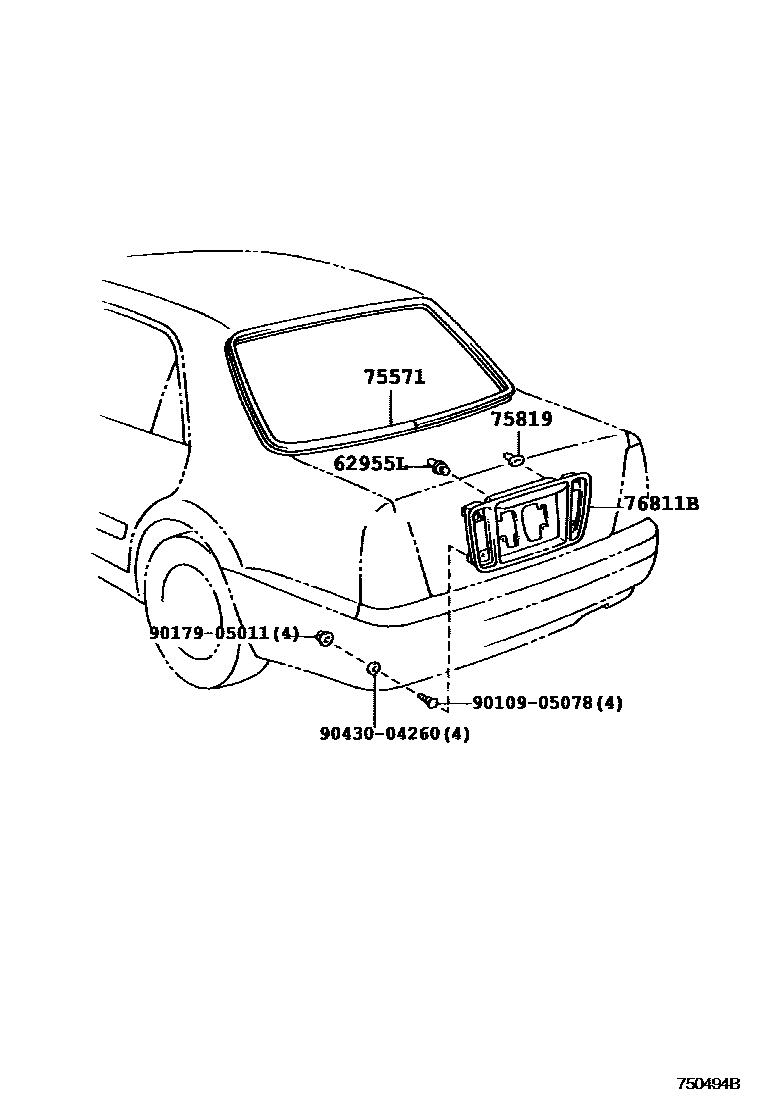

REAR MOULDING

0001 1 0002 1

62955LRETAINER, QUARTER VENT LOUVER

main62955-20040iJCG1#199805-200104

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-51010iJCG1#199805-200104

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-51010iJCG1#199805-200104

76811BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76811-51010-B0iJCG1#199805-200104

SILVER ME.,1C0

sub76811-51010

main76811-51010-D0iJCG1#199805-200005

RED MC.,3N1

sub76811-51010

main76811-51010-D1iJCG1#199805-199905

DK.RED MC.,3N4

sub76811-51010

main76811-51010-D2iJCG1#200005-200104

BORDEAUX MC.,3P2

sub76811-51010

main76811-51010-F0iJCG1#199805-200104

YELLOW PM.,579

sub76811-51010

main76811-51010-G0iJCG1#199805-200005

DK.GREEN MC.P.I.O.,6N9

sub76811-51010

main76811-51010-G1iJCG1#199805-200104

GREEN M.M.,6R2

sub76811-51010

main76811-51010-G2iJCG1#200005-200104

BLACKISH GREEN MC.CC,6R5

sub76811-51010

main76811-51010-J0iJCG1#199805-200104

BLUE MC.,8M6

sub76811-51010

main76811-51010-J1iJCG1#199805-200104

BLUE ME.,8N0

sub76811-51010

main76811-51020-A0iJCG1#200104-200404

WHITE PEARL CS.,062

sub76811-51900

main76811-51020-B0iJCG1#200104-200404

SILVER ME.,1C0

sub76811-51900

main76811-51020-B1iJCG1#200212-200404

GRAY ME.,1D2

sub76811-51900

main76811-51020-D0iJCG1#200104-200404

BORDEAUX MC.,3P2

sub76811-51900

main76811-51020-F0iJCG1#200104-200404

GOLD ME.,585

sub76811-51900

main76811-51020-G0iJCG1#200104-200404

GREEN M.M.,6R2

sub76811-51900

main76811-51020-G1iJCG1#200104-200404

BLACKISH GREEN MC.CC,6R5

sub76811-51900

main76811-51020-G2iJCG1#200212-200404

LT.GREEN M.M.,6S8

sub76811-51900

main76811-51020-J0iJCG1#200104-200404

BLUE MC.,8M6

sub76811-51900

main76811-51020-J1iJCG1#200104-200404

BLUE ME.,8N0

sub76811-51900

main76811-51020-J2iJCG1#200212-200404

DARK BLUE MC.,8P8

sub76811-51900

main76811-51021-A0iJCG11200404-200607

WHITE PEARL CS.,062

sub76811-51901

main76811-51021-B0iJCG10,15200404-200607

SILVER ME.,1C0

sub76811-51901

main76811-51021-B1iJCG11200404-200607

GRAY ME.,1D2

sub76811-51901

main76811-51021-D0iJCG10,15200404-200607

DORDEAUX MC.,3P2

sub76811-51901

main76811-51021-G1iJCG11200404-200607

BLACKISH GREEN MC.CC.,6R5

sub76811-51901

main76811-51021-G2iJCG11200404-200607

LT.GREEN M.M.,6S8

sub76811-51901

main76811-51021-J1iJCG10,15200404-200607

BLUE ME.,8N0

sub76811-51901

main76811-51021-J2iJCG11200404-200607

DARK BLUE MC.,8P8

sub76811-51901

main76811-51060-A0iJCG1#200404-200706

sub76811-51902

main76811-51060-B0iJCG1#200404-200706

sub76811-51902

main76811-51060-B1iJCG1#200404-200706

sub76811-51902

main76811-51060-B2iJCG10,15200512-200706

SILVER ME.,1F7

sub76811-51902

main76811-51060-D0iJCG1#200404-200706

sub76811-51902

main76811-51060-G0iJCG1#200404-200706

sub76811-51902

main76811-51060-G1iJCG1#200404-200706

sub76811-51902

main76811-51060-G2iJCG10,15200512-200706

OLIVE M.M.,6T7

sub76811-51902

main76811-51060-J0iJCG1#200404-200706

sub76811-51902

main76811-51060-J1iJCG1#200404-200706

sub76811-51902

main76811-51060-J2iJCG10,15200512-200706

DK.BLUE MC.,8S6

sub76811-51902

main76811-51060-J2iJCG10,15200512-200706

sub76811-51902

9010905078

main90109-05078

9017905011

main90179-05011

9043004260

main90430-04260

7 parts on this diagram · 2 diagrams in section
