REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM00,01
IVORY,TRIM0#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
IVORY,TRIM00,01
BLACK,TRIM2#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
IVORY,TRIM00,01
IVORY,TRIM0#
BLACK,TRIM2#
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69749BCLAMP, REAR DOOR LOCK LINK
7403
9011906146
main90119-06146
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9165140612
main91651-40612

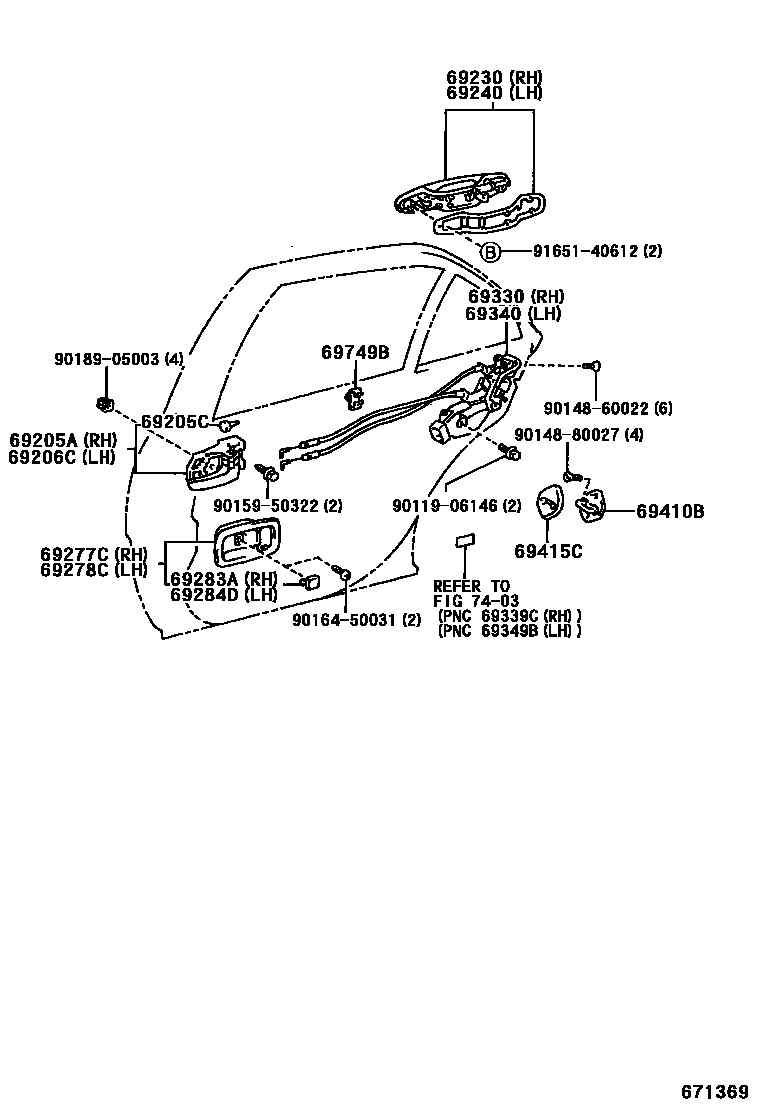

22 parts on this diagram · 1 diagram in section
