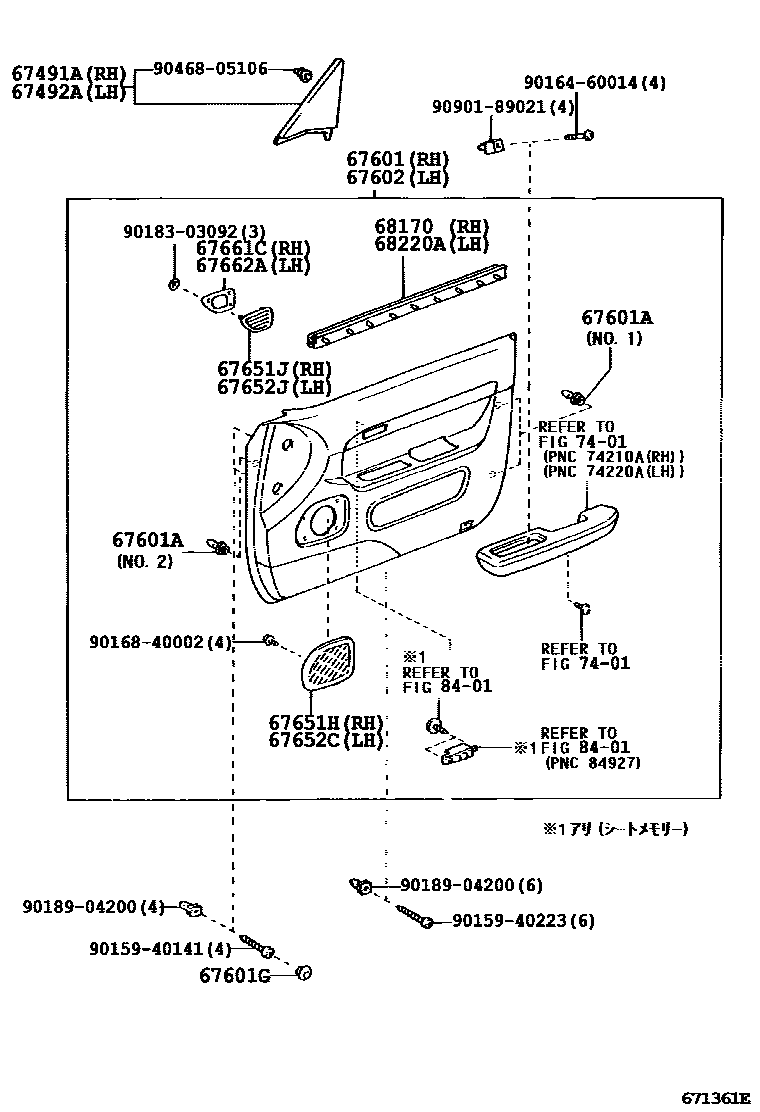

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
PRIME SELECTION *(P),IVORY,TRIM05
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
PRIME SELECTION *(P),IVORY,TRIM05
67651HGRILLE, SPEAKER DOOR, RH
IVORY,TRIM0#
IVORY,TRIM00,01
BLACK,TRIM2#
67651JGRILLE SUB-ASSY, DOOR SPEAKER, RH
BLACK,TRIM2#
SANDALWOOD,TRIM01
SANDALWOOD,TRIM0#
BLUE,TRIM00
67652CGRILLE, SPEAKER DOOR, LH
IVORY,TRIM0#
IVORY,TRIM00,01
BLACK,TRIM2#
67652JGRILLE SUB-ASSY, DOOR SPEAKER, LH
BLACK,TRIM2#
SANDALWOOD,TRIM01
SANDALWOOD,TRIM0#
BLUE,TRIM00
67661CBASE, DOOR SPEAKER GRILLE, RH
67662ABASE, DOOR SPEAKER GRILLE, LH
7401
8401
9015940141
main90159-40141
9015940223
main90159-40223
9016460014
main90164-60014
9016840002
main90168-40002
9018303092
main90183-03092
9018904200
main90189-04200
9046805106
main90468-05106
9090189021
main90901-89021
24 parts on this diagram · 3 diagrams in section
