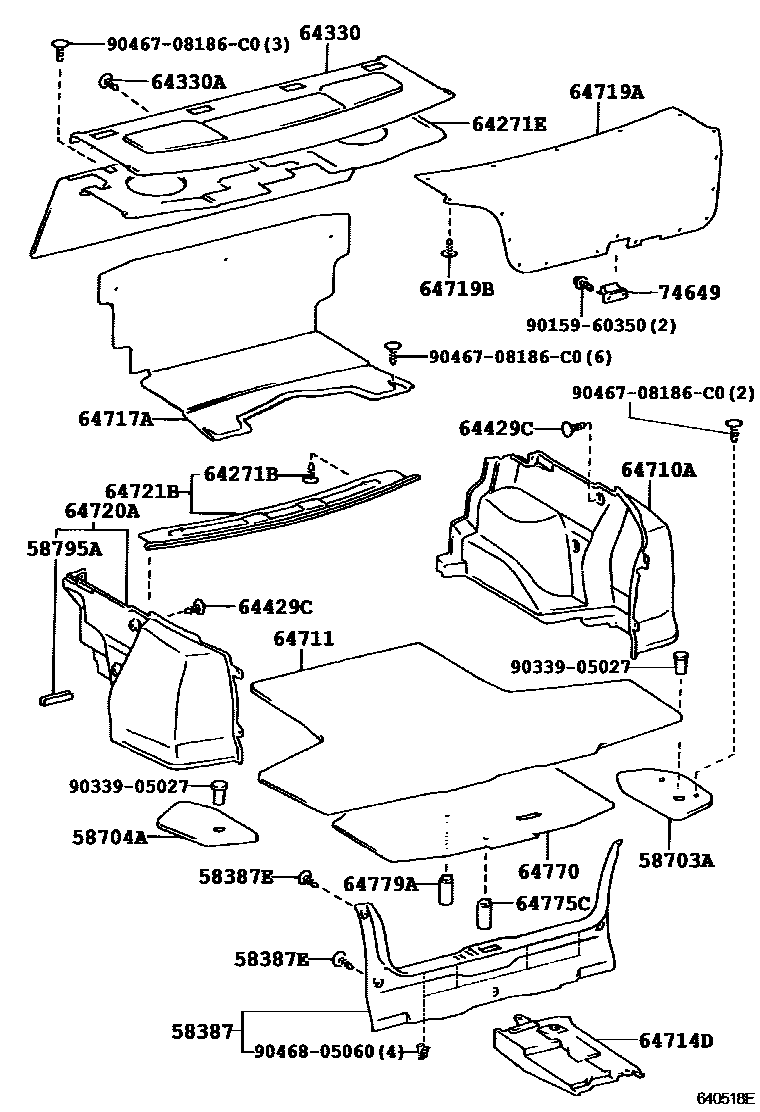

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-51010-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

main58387-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08188iJCG1#199805-200104

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-51010iJCG1#199805-200005

sub58703-51011

main58703-51011iJCG1#200005-200104

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-51010iJCG1#199805-200104

58795ATRIM, JACK HOUSE OPENING

main58795-35010iJCG1#199805-200104

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-09145-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

sub90467-09145

main90467-09145-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

sub90467-09145

64271EPANEL, ROOM PARTITION

main64271-51010iJCG1#199805-200404

sub64271-51011

main64271-51011iJCG1#200404

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-51010-A0iJCG1#199805-200104

IVORY,TRIM00

main64330-51010-C1iJCG1#199805-200706

BLACK,TRIM2#

main64330-51010-E1iJCG1#199805-200104

SANDALWOOD,TRIM01

main64330-51010-E1iJCG1#200104-200706

SANDALWOOD,TRIM0#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05020-01iJCG1#200104-200706

BLACK,TRIM0#,2#

sub90467-05020

sub90467-05027

main90467-05020-A0iJCG1#199805-200104

IVORY,TRIM00,01,2#

sub90467-05020

sub90467-05027

64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)

main90467-08186-C0iJCG10199805-200104

BLACK,TRIM00,01,2#

sub90467-08186

main90467-08186-C0iJCG11199805-199905

BLACK,TRIM00,01

sub90467-08186

main90467-08186-C0iJCG1#200104

BLACK,TRIM0#,2#

sub90467-08186

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-51010-C0iJCG1#199805-200005

BLACK,TRIM00,01,2#

sub64710-51011

main64710-51011-C0iJCG1#200005-200104

BLACK,TRIM00,01,2#

sub64710-51012

main64710-51011-C0iJCG1#200104-200401

BLACK,TRIM0#,2#

sub64710-51012

main64710-51012-C0iJCG1#200401-200706

BLACK,TRIM0#,2#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-51010-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

main64711-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-51010-C0iJCG1#199805-200005

BLACK,TRIM00,01,2#

main64714-51020-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

main64714-51020-C0iJCG1#200005-200104

BLACK,TRIM00,01,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-51010-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

main64075-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

main64719-51030-C0iJCG1#200104-200201

BLACK,TRIM0#,2#

main64719-51050-C0iJCG1#200201-200401

BLACK,TRIM0#,2#

main64719-51051-C0iJCG1#200401-200706

BLACK,TRIM0#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iJCG1#200104

BLACK,TRIM0#,2#

sub90467-08186

main90467-08186-C0iJCG10199805-199905

BLACK,TRIM00,01

sub90467-08186

main90467-08186-C0iJCG10199805-200104

BLACK,TRIM00,01,2#

sub90467-08186

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

main64720-51010-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-51020-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

main64721-51020-C0iJCG1#200104-200706

BLACK,TRIM0#,2#

64770COVER ASSY, SPARE WHEEL

main64770-51010iJCG1#199805-200003

sub64770-51011

main64770-51011iJCG1#200003-200104

main64770-51020iJCG1#199805-200404

64775CSUPPORT, SPARE WHEEL COVER

main64775-22030iJCG1#199805-200104

64779ASTOPPER, SPARE WHEEL COVER

main64779-22030iJCG1#199805-200404

main64779-51010iJCG1#199805-200104

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30010iJCG1#199805-200201

main74649-51010iJCG1#200201

9015960350

main90159-60350

9033905027

main90339-05027

9046708186C0

main90467-08186C0

9046805060

main90468-05060

26 parts on this diagram · 1 diagram in section
