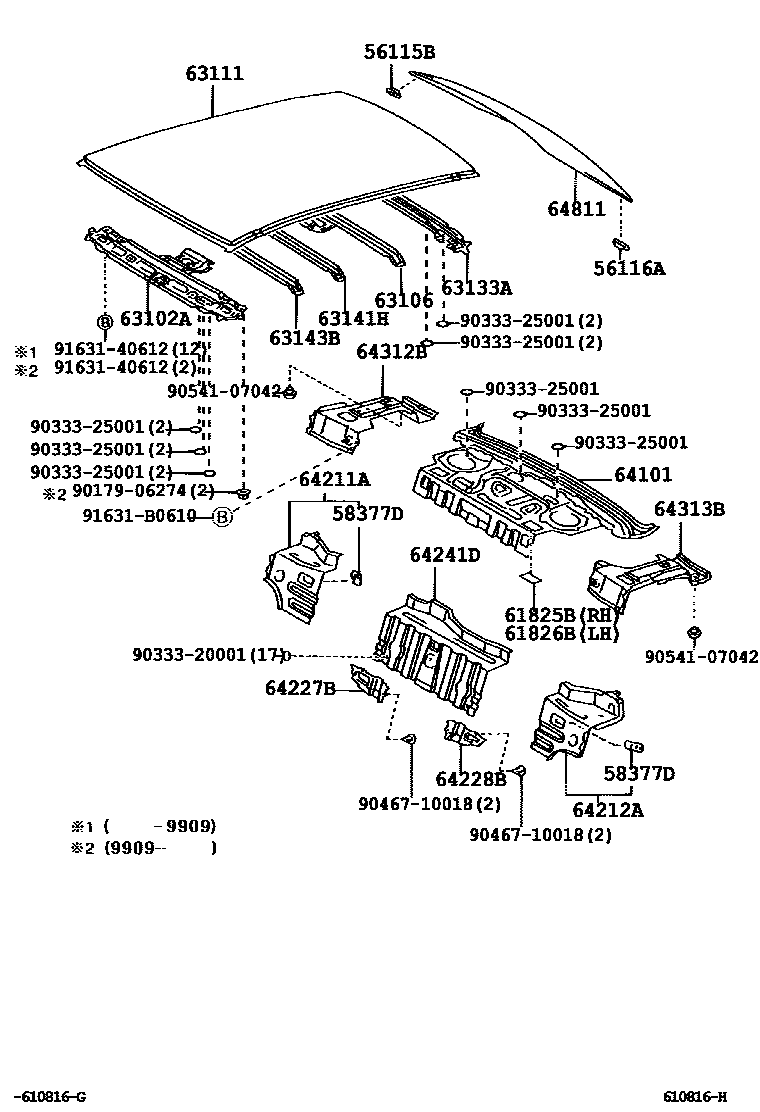

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116ASPACER, WINDSHIELD GLASS
58377DRETAINER, LOWER BACK TRIM
61825BPLATE, NOISE CONTROL, NO.2
61826BPLATE, NOISE CONTROL, NO.3
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63133AFRAME, BACK WINDOW, UPPER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
64101PANEL SUB-ASSY, UPPER BACK
64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH
64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64241DPANEL, ROOM PARTITION
64312BBRACKET, PACKAGE TRAY, RH
64313BBRACKET, PACKAGE TRAY, LH
64811GLASS, BACK WINDOW
9017906274
9033320001
9033325001
9046710018
9054107042
9163140612
91631B0610
27 parts on this diagram · 1 diagram in section
