EPC Data

SIDE MEMBER

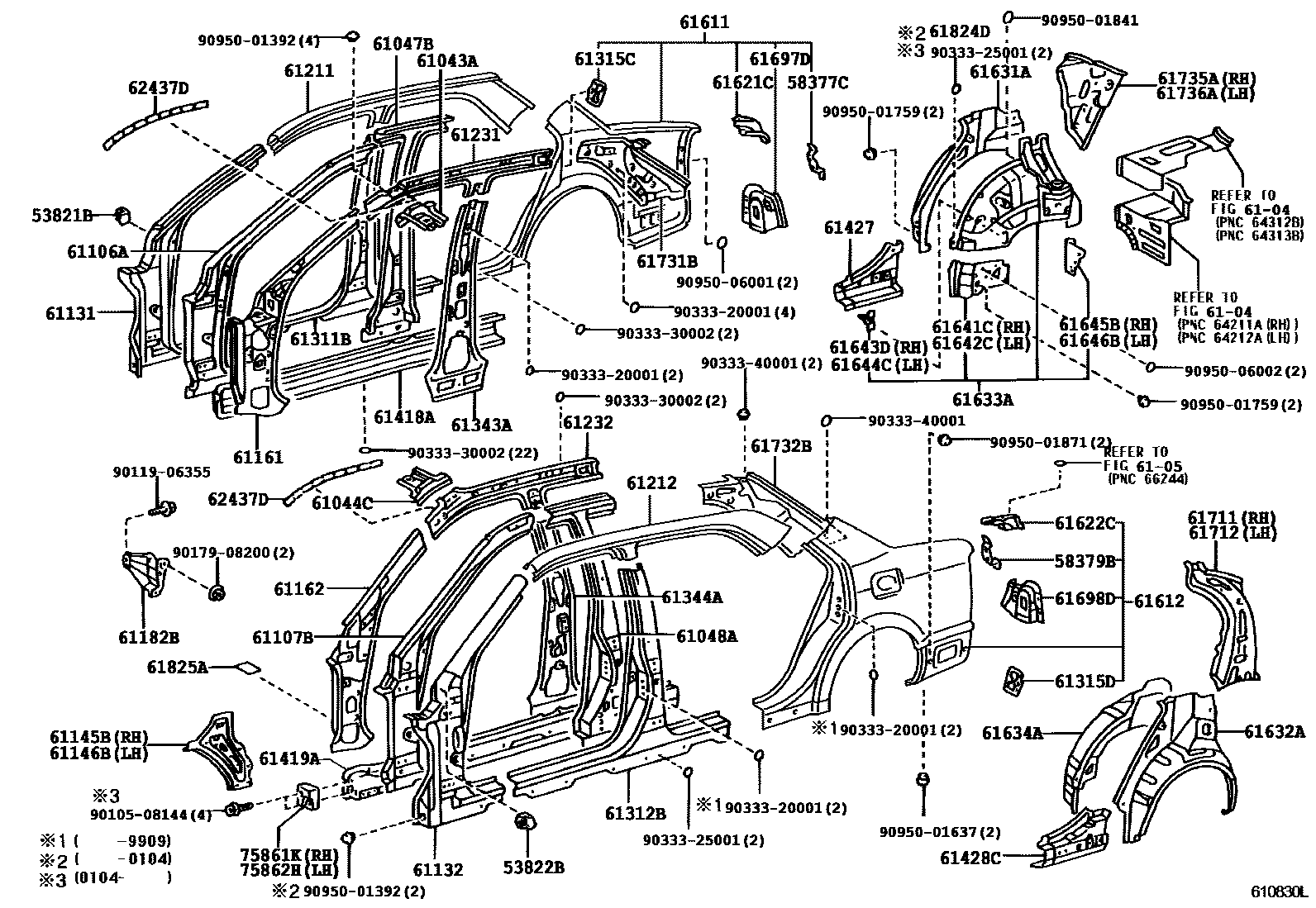

Parts diagram
53821BBRACKET, FRONT FENDER, REAR RH
main53821-16010i199805-200104
53822BBRACKET, FRONT FENDER, REAR LH
main53821-16010i199805-200104
58377CRETAINER, LOWER BACK TRIM, RH
main58377-51010i199805-200104
58379BRETAINER, LOWER BACK TRIM, LH
main58379-51010i199805-200104
6104
61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
main61043-51010i199805-199909
main61043-51011i199909-200104
61044CEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH
main61044-51010i199805-199909
main61044-51011i199909-200104
61047BREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH
main61047-51010i199805-200104
sub61047-51011
sub61311-51030
sub68770-33030
sub90333-25001
main61047-51030i200104
61048AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH
main61048-51010i199805-200104
sub61048-51011
sub61312-51030
sub68780-33030
sub90333-25001
main61048-51030i200104
6105
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
main61106-51010i199805-200104
sub61106-51040
main61106-51040i200104
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
main61107-51010i199805-200104
sub61107-51040
main61107-51040i200104
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-51010i199805-200104
sub61131-51030
sub90333-20001
sub90333-30002
main61131-51030i200104
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-51010i199805-200104
sub61132-51030
sub90333-20001
sub90333-30002
main61132-51030i200104
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-51010i199805-200104
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-51010i199805-200104
61161PILLAR, FRONT BODY, UPPER INNER RH
main61161-51010i199805-200104
sub61161-51030
main61161-51030i200104
61162PILLAR, FRONT BODY, UPPER INNER LH
main61162-51010i199805-200104
sub61162-51030
main61162-51030i200104
61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
main61182-51010i199805-200104
61211RAIL, ROOF SIDE, OUTER RH
main61211-51010i199805-200403
sub61211-51011
main61211-51011i200403
61212RAIL, ROOF SIDE, OUTER LH
main61212-51010i199805-200403
sub61212-51011
main61212-51011i200403
61231RAIL, ROOF SIDE, INNER RH
main61231-51010i199805-200104
61232RAIL, ROOF SIDE, INNER LH
main61232-51010i199805-200104
61311BPILLAR, CENTER BODY, OUTER RH
main61311-51010i199805-200104
sub61311-51030
sub61047-51011
sub68770-33030
sub90333-25001
main61311-51030i200104
61312BPILLAR, CENTER BODY, OUTER LH
main61312-51010i199805-200104
sub61312-51030
sub61048-51011
sub68780-33030
sub90333-25001
main61312-51030i200104
61315CRETAINER, DOOR LOCK STRIKER, RH
main61315-22020i199805-200104
61315DRETAINER, DOOR LOCK STRIKER, LH
main61315-22020i199805-200104
61343APILLAR, CENTER BODY, INNER RH
main61343-51010i199805-200104
main61343-51030i200104
61344APILLAR, CENTER BODY, INNER LH
main61344-51010i199805-200104
main61344-51030i200104
61418AREINFORCEMENT, ROCKER PANEL, RH
main61401-51010i199805-200104
sub61401-51030
sub90333-35001
main61401-51030i200104
61419AREINFORCEMENT, ROCKER PANEL, LH
main61402-51010i199805-200104
sub61402-51030
sub90333-35001
main61402-51030i200104
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
main61427-51010i199805-200104
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
main61428-51010i199805-200104
61611PANEL, QUARTER, RH
main61611-51010i199805-200403
sub61611-51011
main61611-51011i200403
61612PANEL, QUARTER, LH
main61612-51010i199805-200402
sub61612-51011
main61612-51011i200402
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-51010i199805-200104
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-51010i199805-200104
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-51010i199805-200403
sub61631-51011
main61631-51011i200404
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-51010i199805-200104
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-51010i199805-200104
sub61607-51020
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-51010i199805-200104
sub61608-51030
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-51010i199805-200104
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
main61642-51010i199805-200104
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
main58369-47010i199909-200104
61644CPATCH, QUARTER WHEEL HOUSE, NO.1 LH
main58369-47010i199909-200104
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-51010i199805-200104
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-51010i199805-200104
61697DHOUSING, QUARTER PANEL END, RH
main61697-51010i199805-200104
61698DHOUSING, QUARTER PANEL END, LH
main61698-51010i199805-200104
61711PANEL, ROOF SIDE, OUTER RH
main61711-51010i199805-199909
sub61711-51011
main61711-51011i199909-200104
61712PANEL, ROOF SIDE, OUTER LH
main61712-51010i199805-199909
sub61712-51011
main61712-51011i199909-200104
61731BPANEL, ROOF SIDE, INNER RH
main61731-51010i199805-199909
sub61731-51011
main61731-51011i199909-200104
61732BPANEL, ROOF SIDE, INNER LH
main61732-51010i199805-199909
sub61732-51011
main61732-51011i199909-200104
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-51010i199805-200104
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-51010i199805-200104
61824DPLATE, NOISE CONTROL, NO.1
main61824-22030i199805-200104
61825APLATE, NOISE CONTROL, NO.2
main61825-30030i199805-200104
62437DPROTECTOR, BASE EDGE, NO.1
main62437-51010i199805-200104
75861KPROTECTOR, ROCKER PANEL MOULDING, RH
main75861-51010i200104
75862HPROTECTOR, ROCKER PANEL MOULDING, LH
main75862-51010i200104
9010508144
main90105-08144
9011906355
main90119-06355
9017908200
main90179-08200
9033320001
main90333-20001
9033325001
main90333-25001
9033330002
main90333-30002
9033340001
main90333-40001
9095001392
main90950-01392
9095001637
main90950-01637
9095001759
main90950-01759
9095001841
main90950-01841
9095001871
main90950-01871
9095006001
main90950-06001
9095006002
main90950-06002

74 parts on this diagram · 1 diagram in section
