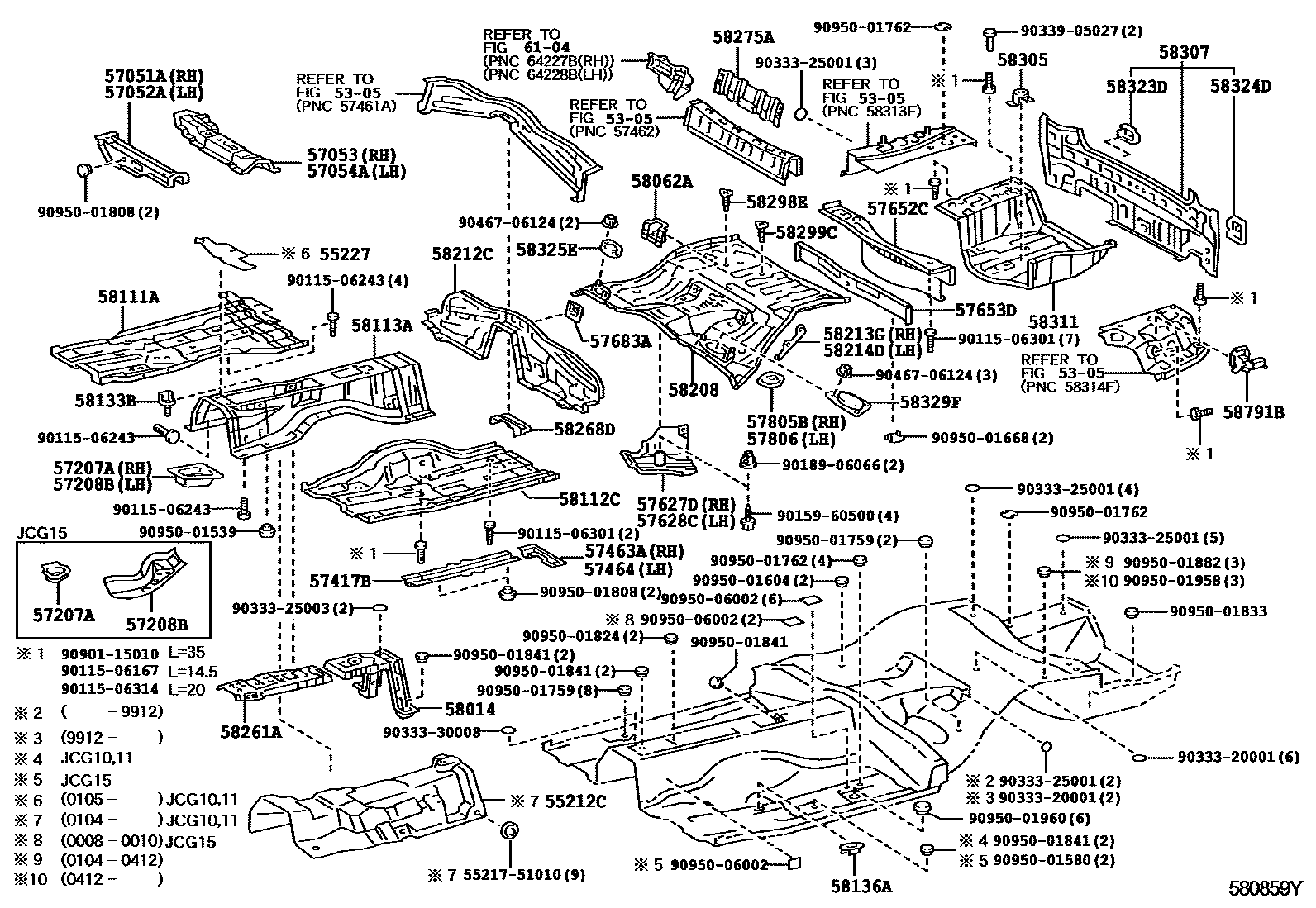

FLOOR PAN & LOWER BACK PANEL

5305

55212CSILENCER, FRONT PANEL, LOWER

main55212-51030iJCG10,11200104

55227SHEET, DASH PANEL INSULATOR, NO.6

main55227-51020iJCG10,11200105

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-51010iJCG10,11199805-200104

main57051-51020iJCG15199912-200104

main57051-51030iJCG10,11200104

main57051-51040iJCG15200104

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-51010iJCG10,11199805-200104

main57052-51020iJCG15199912-200104

main57052-51030iJCG10,11200104

main57052-51040iJCG15200104

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-51010iJCG10,11199805-200104

main57053-51020iJCG15199912-200104

main57053-51030iJCG10,11200104

main57053-51040iJCG15200104

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-51010iJCG10,11199805-200104

main57054-51020iJCG15199912-200104

main57054-51030iJCG10,11200104

main57054-51040iJCG15200104

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-22060iJCG15199912-200104

main57207-51010iJCG10,11199805-200104

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-30010iJCG15199912-200104

main57208-51010iJCG10,11199805-200104

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-51010iJCG1#199805-200104

57463AREINFORCEMENT, CENTER FLOOR CROSSMEMBER

main57463-51010iJCG1#199805-200104

57464STRENGTH, CENTER FLOOR CROSSMEMBER

main57464-51010iJCG1#199805-200104

57627DCOVER, REAR FLOOR SIDE MEMBER

main57627-51010iJCG1#199805-200104

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-51010iJCG1#199805-200104

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-51010iJCG1#199805-200706

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-51010iJCG1#199805-200706

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-51010iJCG1#199805-200104

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-51010iJCG1#199805-200012

sub57805-51011

main57805-51011iJCG1#200012-200104

main57805-53011iJCG1#200104-200404

sub57805-53012

main57805-53012iJCG1#200404

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-51010iJCG1#199805-200012

sub57806-51011

main57806-51011iJCG1#200012-200104

main57806-53011iJCG1#200104-200404

sub57806-53012

main57806-53012iJCG1#200404

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-51010iJCG1#199805-200104

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-30010iJCG1#199909-200104

main58062-51010iJCG1#199805-199909

58111APAN, FRONT FLOOR, RH

main58111-30401iJCG10,11200104

main58111-30410iJCG15199912-200101

sub58111-30411

main58111-30411iJCG15200101-200104

main58111-51010iJCG10,11199805-200104

58112CPAN, FRONT FLOOR, LH

main58112-30081iJCG10,11200104

main58112-30120iJCG15199912-200101

sub58112-30121

main58112-30121iJCG15200101-200104

main58112-51010iJCG10,11199805-200104

58113APANEL, FRONT FLOOR, CENTER

main58113-30131iJCG10,11200104

main58113-30150iJCG15199912-200008

sub58113-30151

main58113-30151iJCG15200008-200104

main58113-51010iJCG1#199805-199906

sub58113-51011

main58113-51011iJCG10,11199906-200104

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-51010iJCG1#199805-200104

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-30040iJCG1#199805-199810

main58136-51010iJCG1#199810-200104

58208PAN, CENTER FLOOR

main58211-51900iJCG1#199805-199903

sub58211-51901

sub58298-30030

sub58299-30010

main58211-51901iJCG1#199903-200012

sub58211-51902

sub57805-53011

main58211-51902iJCG1#200012-200104

58212CPAN, CENTER FLOOR, FRONT

main58212-51010iJCG1#199805-200104

58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH

main58213-51010iJCG1#199805-199906

main58213-51011iJCG1#199906-200104

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-51010iJCG1#199805-199906

main58214-51011iJCG1#199906-200104

58261ACOVER, TRANSMISSION

main58261-51010iJCG10,11199805-200104

main58261-51020iJCG15199912-200104

main58261-51030iJCG10,11200104

58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3

main58268-51010iJCG1#199805-199906

main58268-51011iJCG1#199906-200104

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-51010iJCG1#199805-200104

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30020iJCG1#199805-199903

sub58298-30021

main58298-30030iJCG1#199903-200104

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iJCG1#199903-200104

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iJCG1#199805-199905

main58351-53010iJCG1#199906-200104

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-51010iJCG1#199805-200101

sub58307-51011

main58307-51011iJCG1#200101-200706

58311PAN, REAR FLOOR

main58311-51010iJCG1#199805-200101

sub58311-51011

main58311-51011iJCG1#200101-200104

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-51010iJCG1#199805-200104

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-51010iJCG1#199805-200104

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iJCG1#199805-200104

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58320-51010iJCG1#200104

main58329-30020iJCG1#199805-200104

58791BCARRIER, JACK

main58791-30030iJCG1#199805-200104

6104

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

9011506167

main90115-06167

9011506243

main90115-06243

9011506301

main90115-06301

9011506314

main90115-06314

9015960500

main90159-60500

9018906066

main90189-06066

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9033905027

main90339-05027

9046706124

main90467-06124

9090115010

main90901-15010

9095001539

main90950-01539

9095001580

main90950-01580

9095001604

main90950-01604

9095001668

main90950-01668

9095001759

main90950-01759

9095001762

main90950-01762

9095001808

main90950-01808

9095001824

main90950-01824

9095001833

main90950-01833

9095001841

main90950-01841

9095001882

main90950-01882

9095001958

main90950-01958

9095001960

main90950-01960

9095006002

main90950-06002

72 parts on this diagram · 1 diagram in section
