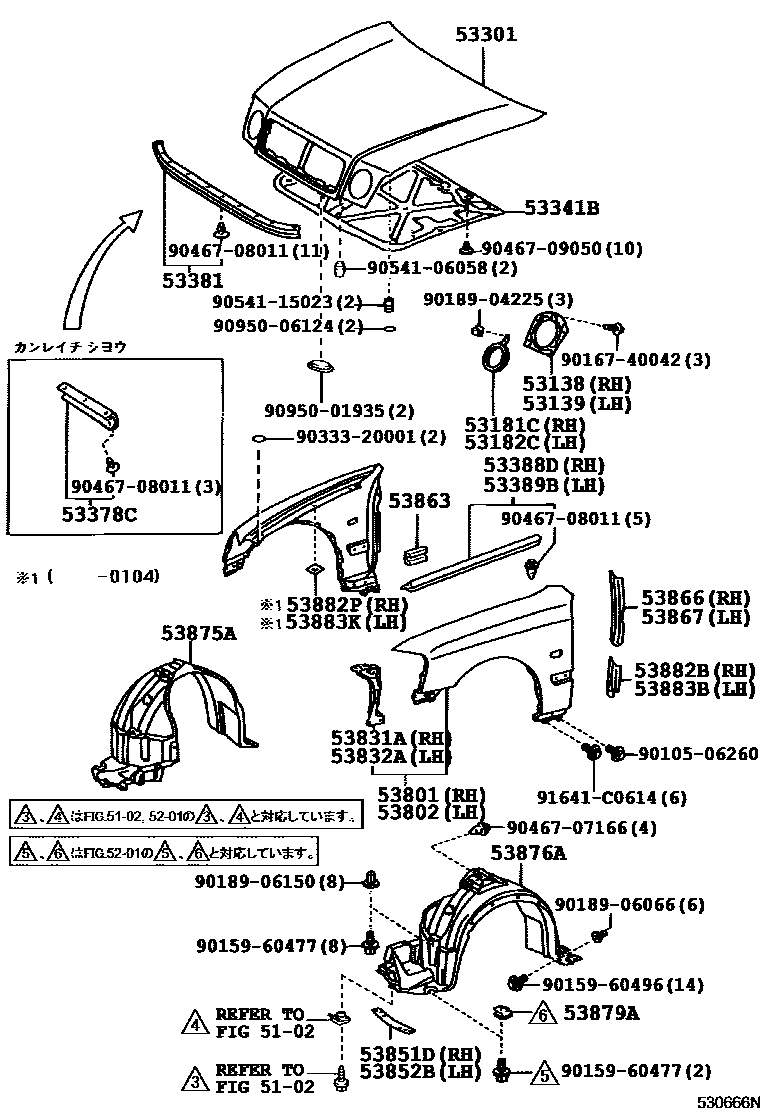

HOOD & FRONT FENDER

5102

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-51010iJCG1#199805-200404

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-51010iJCG1#199805-200404

53181CCOVER, HEADLAMP, RH

main53181-51010iJCG1#199805-200404

main53181-51020iJCG10,11199905-200104

53182CCOVER, HEADLAMP, LH

main53182-51010iJCG1#199805-200404

main53182-51020iJCG10,11199905-200104

53301HOOD SUB-ASSY

main53301-51010iJCG1#199805-199903

sub53301-51011

main53301-51011iJCG1#199903-200404

sub53301-51012

main53301-51012iJCG1#200404-200706

53341BINSULATOR, HOOD

main53341-51010iJCG1#199805-200104

main53341-51030iJCG1#200104-200404

sub53341-51031

main53341-51031iJCG1#200404

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-51010iJCG1#199805-200104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-51010iJCG1#199805-200404

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-51010iJCG1#199805-200404

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-51010iJCG1#199805-200404

53801FENDER SUB-ASSY, FRONT RH

main53801-51010iJCG1#199805-200104

main53801-51040iJCG1#200104-200706

53802FENDER SUB-ASSY, FRONT LH

main53802-51010iJCG1#199805-200104

main53802-51040iJCG1#200104-200706

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-51010iJCG1#199805-200104

main53831-51030iJCG1#200104

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-51010iJCG1#199805-200104

main53832-51030iJCG1#200104

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-30020iJCG1#200104

main53851-51010iJCG1#199805-200104

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30020iJCG1#200104

main53852-51010iJCG1#199805-200104

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-51010iJCG1#199806-200104

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-51010iJCG1#199805-200404

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-51010iJCG1#199805-200404

53875ALINER, FRONT FENDER, RH

main53805-51010iJCG15199912-200104

main53875-51010iJCG1#199805-199806

sub53875-51020

main53875-51011iJCG10,11199806-200104

53876ALINER, FRONT FENDER, LH

main53806-51010iJCG15199912-200104

main53876-51010iJCG1#199805-199806

sub53876-51020

main53876-51011iJCG10,11199806-200104

53879ARETAINER, FRONT FENDER LINER

main53879-17020iJCG1#199805-200104

53882BSEAL, FRONT FENDER, RH

main53882-51010iJCG1#199805-200404

53882PSEAL, FRONT FENDER, RH

main53882-16030iJCG1#199805-200104

53883BSEAL, FRONT FENDER, LH

main53883-51010iJCG1#199805-200404

53883KSEAL, FRONT FENDER, LH

main53882-16030iJCG1#199805-200104

9010506260

main90105-06260

9015960477

main90159-60477

9015960496

main90159-60496

9016740042

main90167-40042

9018904225

main90189-04225

9018906066

main90189-06066

9018906150

main90189-06150

9033320001

main90333-20001

9046707166

main90467-07166

9046708011

main90467-08011

9046709050

main90467-09050

9054106058

main90541-06058

9054115023

main90541-15023

9095001935

main90950-01935

9095006124

main90950-06124

91641C0614

main91641-C0614

43 parts on this diagram · 1 diagram in section
