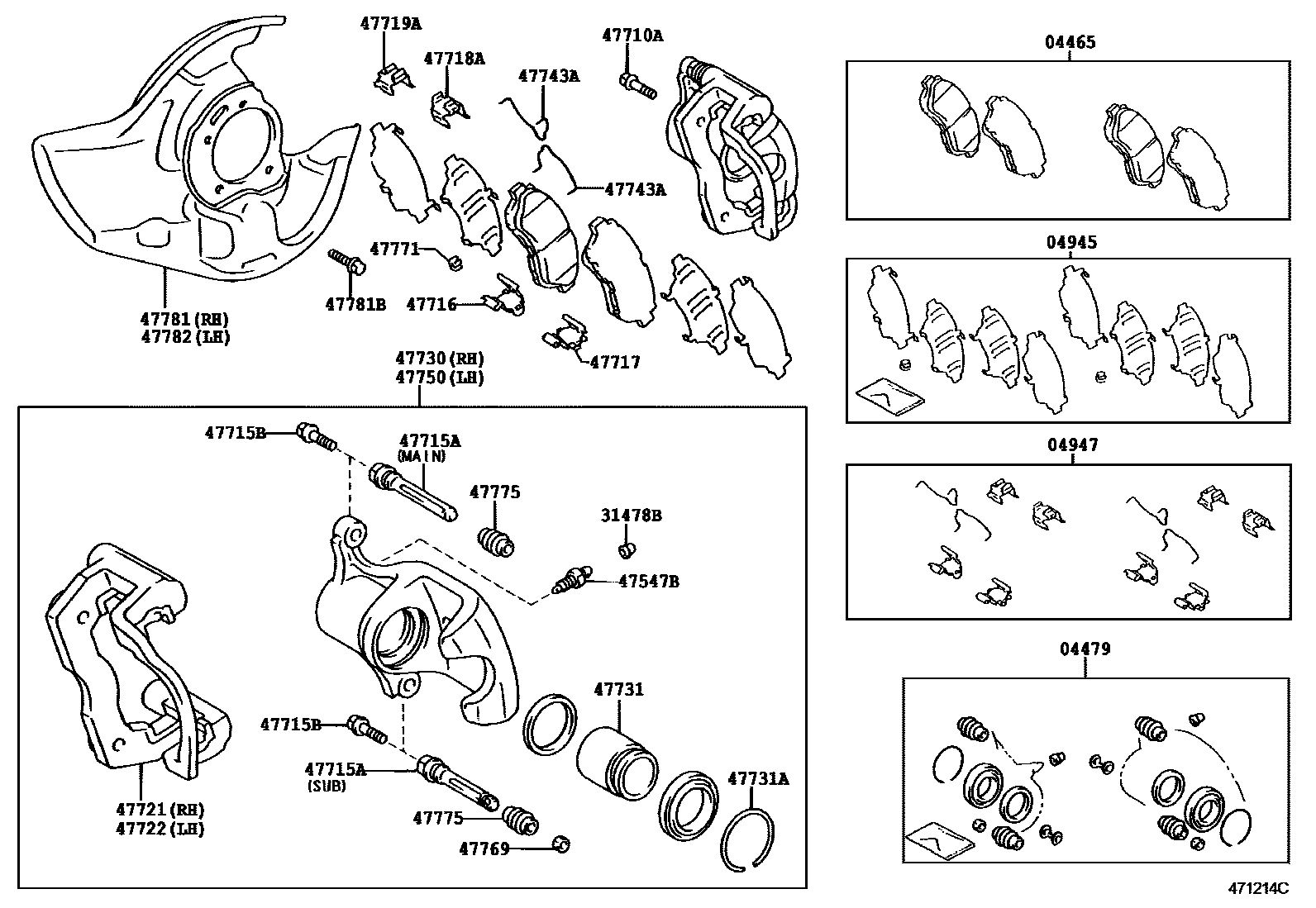

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30080iJCG1#199805-200104

main04465-30280iJCG10,11200104-200201

sub04465-30300

main04465-30300iJCG10,11200201

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30250iJCG15200201

main04478-53020iJCG15200104-200704

sub04478-30250

main04479-30150iJCG1#199805-200101

sub04479-30151

main04479-30151iJCG10,11200101-200201

sub04478-53020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30160iJCG10,11200104-200201

sub04945-30170

main04945-30170iJCG10,11200201

main04945-33020iJCG1#199805-200104

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30100iJCG1#199805-200104

main04947-30131iJCG10,11200104

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iJCG1#199805-200104

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iJCG1#199805-200104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iJCG1#199805-200706

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iJCG10,11199805-200104

main47715-22080iJCG1#199805-200104

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iJCG1#199805-200104

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30140iJCG10,11200104

main47716-30160iJCG15199805-200104

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-30170iJCG1#199805-200104

main47717-51010iJCG10,11200104

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30050iJCG1#199805-200104

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30060iJCG1#199805-200104

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22150iJCG10,11199805-200104

main47721-30210iJCG10,11200104-200209

sub47721-30211

main47721-30211iJCG10,11200209

main47721-50010iJCG15199912-200104

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22110iJCG10,11199805-200104

main47722-30110iJCG10,11200104-200209

sub47722-30111

main47722-30111iJCG10,11200209

main47722-50010iJCG15199912-200104

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30330iJCG10,11199805-200104

main47730-30360iJCG15199912-200104

main47730-30440iJCG10,11200104

47731PISTON, FRONT DISC BRAKE

main47731-30110iJCG15199805-200104

main47731-33070iJCG10,11200104

sub47731-30570

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iJCG1#199805-200104

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50010iJCG1#199805-200104

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30330iJCG10,11199805-200104

main47750-30360iJCG15199912-200104

main47750-30440iJCG10,11200104

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJCG15200104

main47769-50010iJCG1#199805-200104

main47769-50020iJCG10,11200104

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iJCG10,11200104

main47771-50010iJCG1#199805-200104

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iJCG1#199805-200604

sub47775-50010

main47775-50010iJCG1#200605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22161iJCG10,11199805-200009

sub47781-22162

main47781-22162iJCG10,11200009-200706

main47781-22180iJCG15199912-200706

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iJCG1#199805-200706

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22161iJCG10,11199805-200009

sub47782-22162

main47782-22162iJCG10,11200009-200706

main47782-22180iJCG15199912-200706

26 parts on this diagram · 2 diagrams in section
