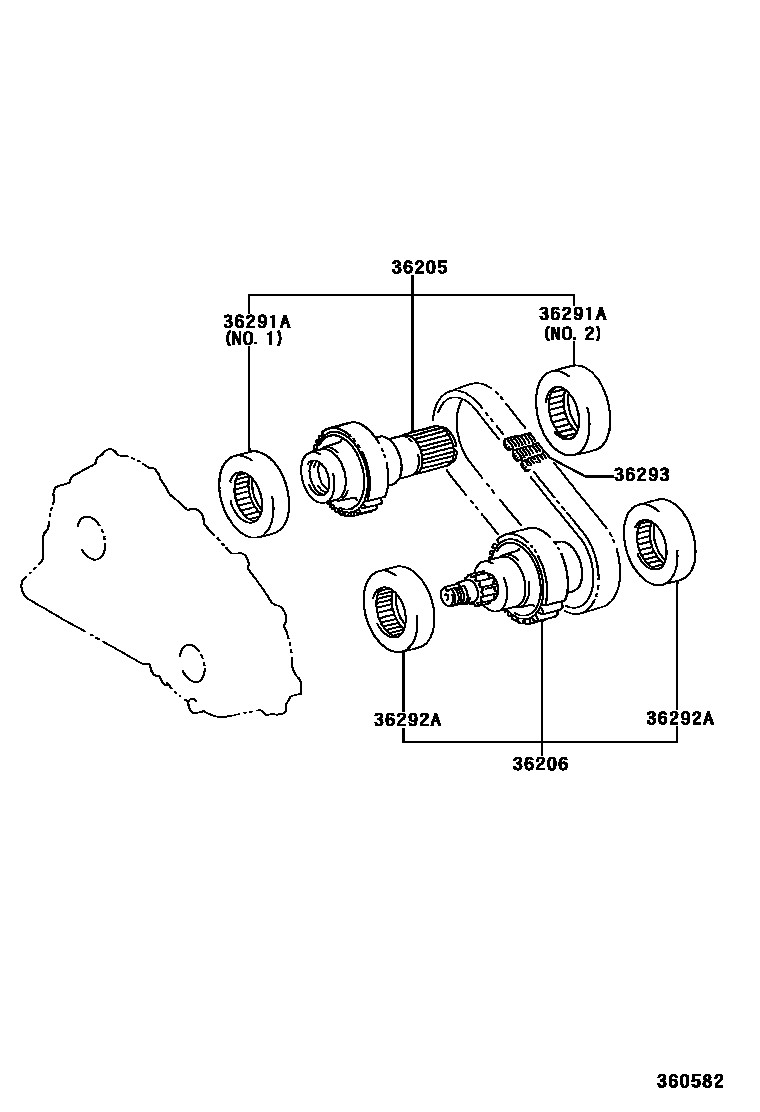

TRANSFER GEAR
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
5 parts on this diagram · 1 diagram in section
