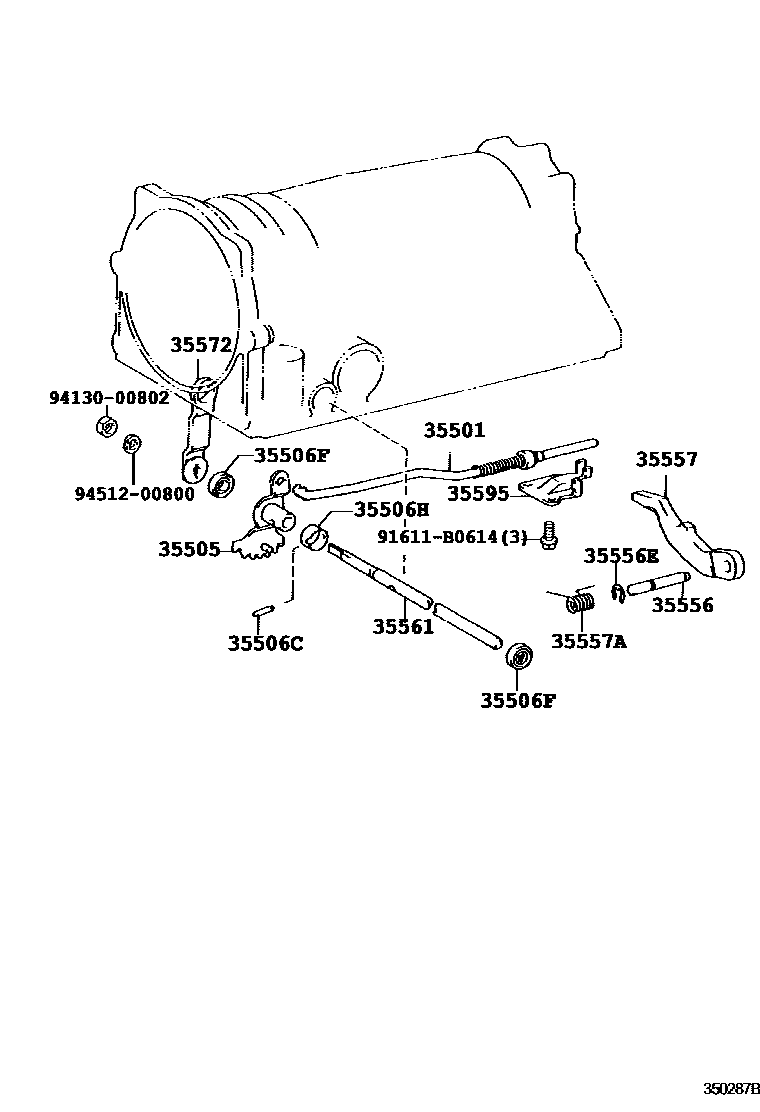

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A650E 0002 1A340H

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iJCG10,11199805-200104

main35501-30020iJCG10,11200104

main35501-60010iJCG15199912-200104

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22060iJCG15199912-200104

main35505-50010iJCG10,11199805-200104

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJCG1#199805-200104

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iJCG1#199805-200104

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJCG1#199805-200302

main90560-20025iJCG1#200302

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJCG1#199805-200104

main35556-30030iJCG10,11200104

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJCG1#199805-200104

35557PAWL, PARKING LOCK

main35557-30020iJCG10,11199805-200104

main35557-60020iJCG15199912-200104

main35590-30010iJCG10,11200104

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJCG1#199805-200104

main90949-03065iJCG10,11200104

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJCG10,11199805-200104

main35561-35010iJCG15199912-200104

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iJCG10,11199805-200104

main35572-30080iJCG10,11200104

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJCG10,11199805-200104

main35595-30020iJCG10,11200104

main35595-60010iJCG15199912-200104

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
