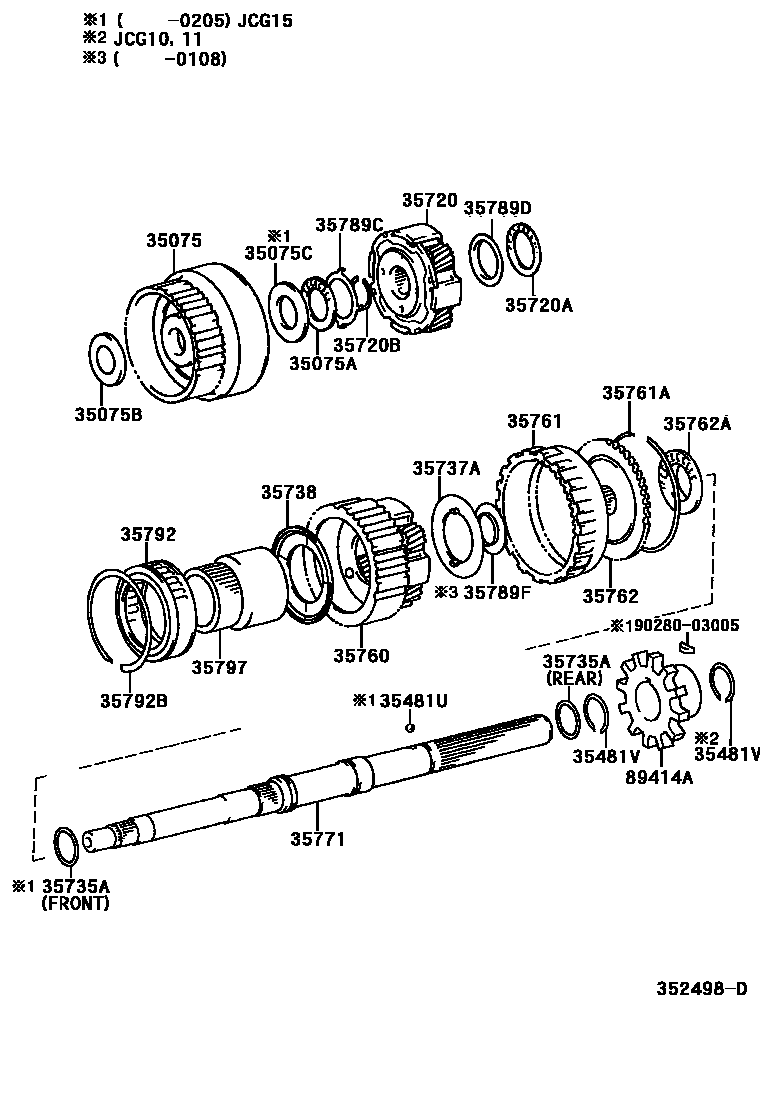

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A340E,A340H 0003 1A650E

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iJCG1#199805-200104

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-32004iJCG15199912-200205

sub90374-35004

main90374-35004iJCG15199805-200104

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iJCG1#199805-200104

35075CRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR)

main35789-30130iJCG15199912-200205

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iJCG15199912-200104

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iJCG1#199805-200104

main90520-32002iJCG10,11199805-200104

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iJCG1#199805-200104

main35720-30120iJCG10,11200104

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iJCG15199805-200104

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iJCG1#199805-200104

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iJCG10,11199805-200104

main35735-30020iJCG15199912-200104

main35735-30030iJCG15199912-200104

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iJCG1#199805-200104

main35737-30040iJCG10,11200104

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-30050iJCG10,11200104

main35739-30030iJCG1#199805-200104

35760GEAR ASSY, REAR PLANETARY

main35705-30010iJCG15199805-200104

35761GEAR, REAR PLANETARY RING

main35761-30020iJCG15199912-200104

main35761-30030iJCG10,11200104

main35761-50010iJCG10,11199805-200104

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99021iJCG10,11200104-200706

main90521-99024iJCG1#199805-200706

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iJCG15199805-200104

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-38003iJCG1#199906-200104

main90374-39001iJCG1#199805-199906

sub90374-38003

35771SHAFT, OUTPUT

main35771-30050iJCG10,11199805-200104

main35771-30100iJCG15199912-200104

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iJCG1#199805-200104

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iJCG1#199805-200104

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-30160iJCG1#199805-200108

35792CLUTCH, 1 WAY, NO.2

main35792-14020iJCG1#199805-200104

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iJCG1#199805-200104

35797RACE, 1 WAY CLUTCH INNER

main35797-30040iJCG10,11200104

main35797-50010iJCG15199805-200104

89414AROTOR, SENSOR

main89414-22030iJCG15199912-200104

main89414-30040iJCG10,11199805-200104

9028003005

main90280-03005

26 parts on this diagram · 2 diagrams in section
