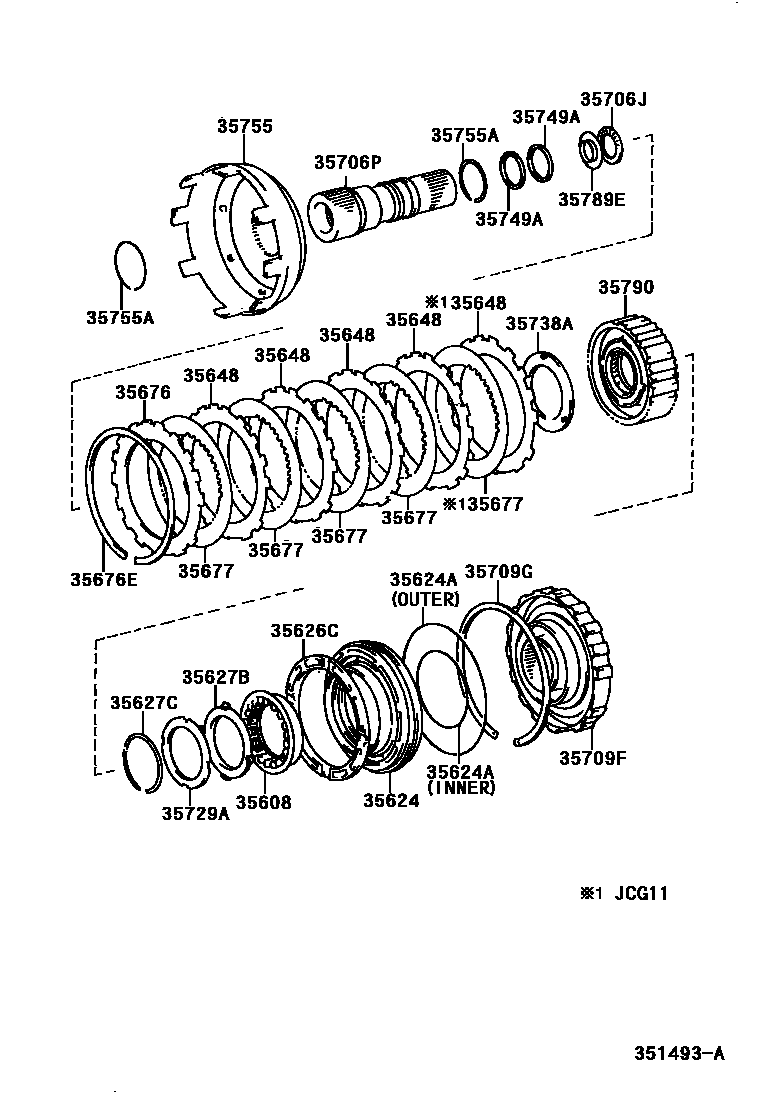

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A340E,A340H 0003 1A650E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iJCG15199912-200104

main35608-50010iJCG10,11199805-200104

35624PISTON, 2ND BRAKE

main35601-50010iJCG10,11200104

main35624-30010iJCG15199805-200104

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iJCG1#199805-200104

main90301-99038iJCG1#199805-200104

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iJCG10,11199805-200104

main35626-35010iJCG15199912-200104

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iJCG15199805-200104

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iJCG1#199805-200104

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020iJCG15199805-200112

main35647-30030iJCG10,11199805-200104

main35647-30050iJCG10199805-200104

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iJCG15199805-200104

main35676-30120iJCG10199805-200104

main35676-30130iJCG10199805-200104

main35676-30140iJCG10199805-200104

main35676-30150iJCG10199805-200104

main35676-30160iJCG10199805-200104

main35676-30170iJCG10199805-200104

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iJCG15199805-200104

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30050iJCG11199805-200104

main35667-30080iJCG10199805-200104

main35667-60010iJCG15199912-200104

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009iJCG15200108

main90374-30006iJCG1#199805-200108

35706PGEAR SUB-ASSY, FRONT PLANETARY SUN

main35706-30061iJCG1#199805-200104

main35706-30090iJCG10,11200104

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iJCG1#199805-200104

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iJCG1#199805-200104

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iJCG1#199805-200104

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iJCG1#199805-200104

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010iJCG1#199805-200104

35755DRUM, SUN GEAR INPUT

main35755-50010iJCG1#199805-200104

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002iJCG1#199805-200104

main90520-49001iJCG1#199805-200104

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30150iJCG15199805-200108

main35789-30240iJCG15200108

35790CLUTCH ASSY, 1 WAY

main35790-30050iJCG1#199805-200104

main35790-30080iJCG10,11200104

21 parts on this diagram · 2 diagrams in section
