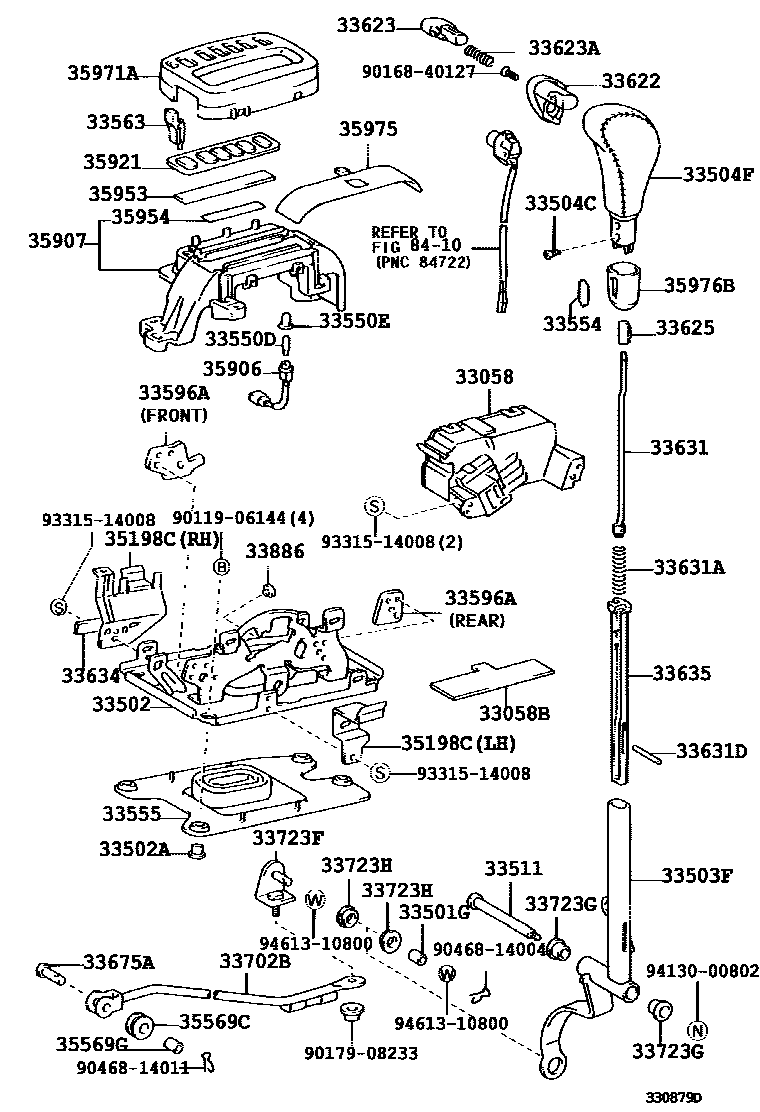

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33058BSEAT, SHIFT LEVER(FOR BRACKET, SHIFT LOCK SOLENOID)
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
sub33542-51020
sub33542-51020
sub33542-51020
sub33542-51020
sub33542-51020
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
33563BUTTON, SHIFT LOCK RELEASE
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33634PROTECTOR, WIRE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33886STOPPER, SHIFT LEVER
35198CBRACKET, WIRE HARNESS CLAMP
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35921PLATE, CONTROL POSITION INDICATOR
35953GUIDE, POSITION INDICATOR LIGHT
35954SHEET, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8410
9011906144
main90119-06144
9016840127
main90168-40127
9017908233
main90179-08233
9046814004
main90468-14004
9046814011
main90468-14011
9331514008
main93315-14008
9413000802
main94130-00802
9461310800
main94613-10800
51 parts on this diagram · 2 diagrams in section
