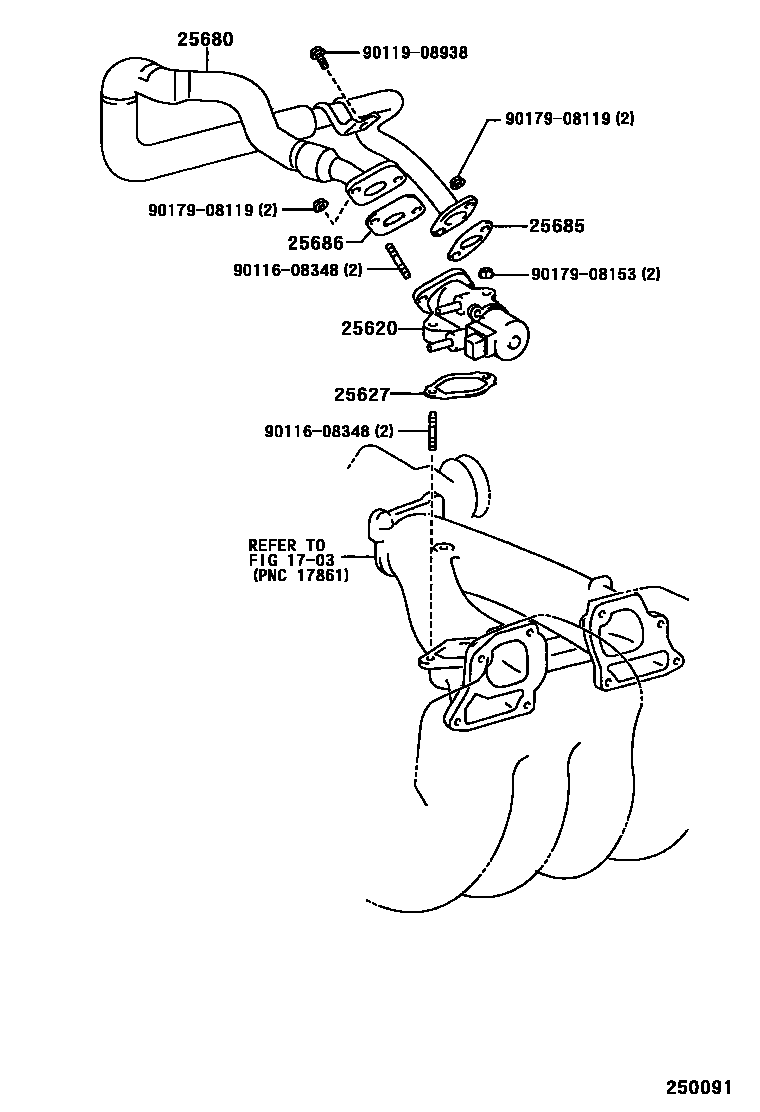

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1703

25620VALVE ASSY, EGR

main25620-46090i1JZFSE,2JZFSE..JCG1#200104

25627GASKET, EGR VALVE

main25627-46020i1JZFSE,2JZFSE..JCG1#200104

25680COOLER ASSY, EGR

main25680-46010i2JZFSE..JCG11200104-200303

sub25680-46011

main25680-46011i2JZFSE..JCG11200303

main25680-46020i1JZFSE..JCG10,15200104-200303

sub25680-46021

main25680-46021i1JZFSE..JCG10,15200303

sub25680-46022

25685GASKET, EGR COOLER, NO.1

main25685-46020i1JZFSE,2JZFSE..JCG1#200104

25686GASKET, EGR COOLER, NO.2

main25686-46010i1JZFSE,2JZFSE..JCG1#200104

9011608348

main90116-08348

9011908938

main90119-08938

9017908119

main90179-08119

9017908153

main90179-08153

10 parts on this diagram · 2 diagrams in section
