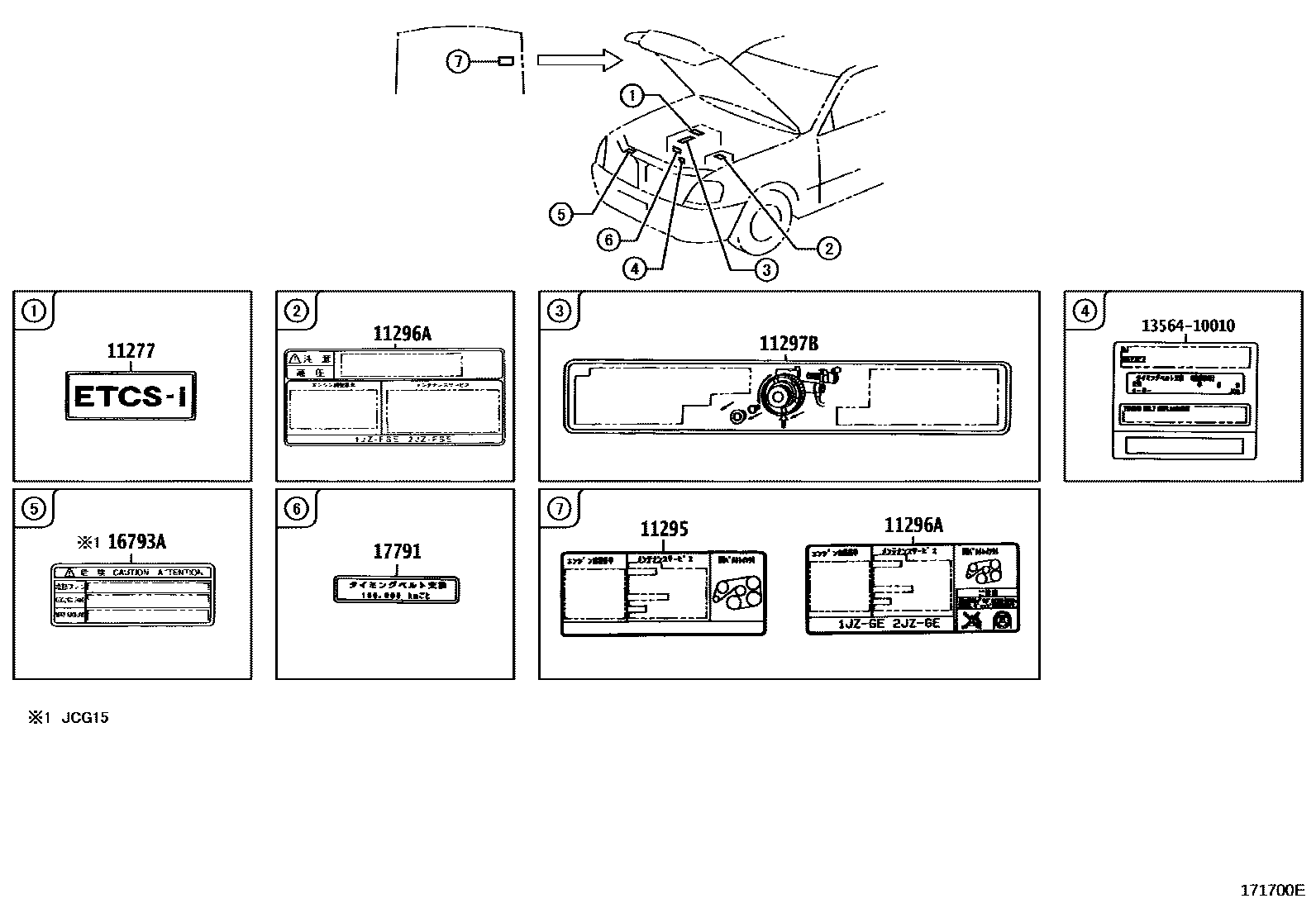

CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-46120i1JZGE,2JZGE..JCG1#199805-200104

11295LABEL, ENGINE SERVICE NOTICE

main11295-46030i1JZGE..JCG15199912-200002

sub11295-46031

main11295-46031i1JZGE..JCG15200002-200104

11296ALABEL, ENGINE SERVICE INFORMATION

main11295-46040i1JZGE,2JZGE..JCG10,11200011-200104

main11296-46300i1JZGE,2JZGE..JCG10,11199805-200010

main11296-46370i1JZFSE,2JZFSE..JCG1#200104-200205

main11296-46371i1JZFSE,2JZFSE..JCG1#200205-200607

sub11296-46372

main11296-46372i1JZFSE,2JZFSE..JCG1#200608

11297BLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-46020i1JZGE,2JZGE..JCG1#199805-200104

16793ALABEL, COOLING FAN CAUTION

main16793-46010i1JZGE..JCG15199912-200104

17791LABEL, MAINTENANCE INFORMATION

main17791-74040i1JZGE,2JZGE..JCG1#199805-200104

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

7 parts on this diagram · 1 diagram in section
