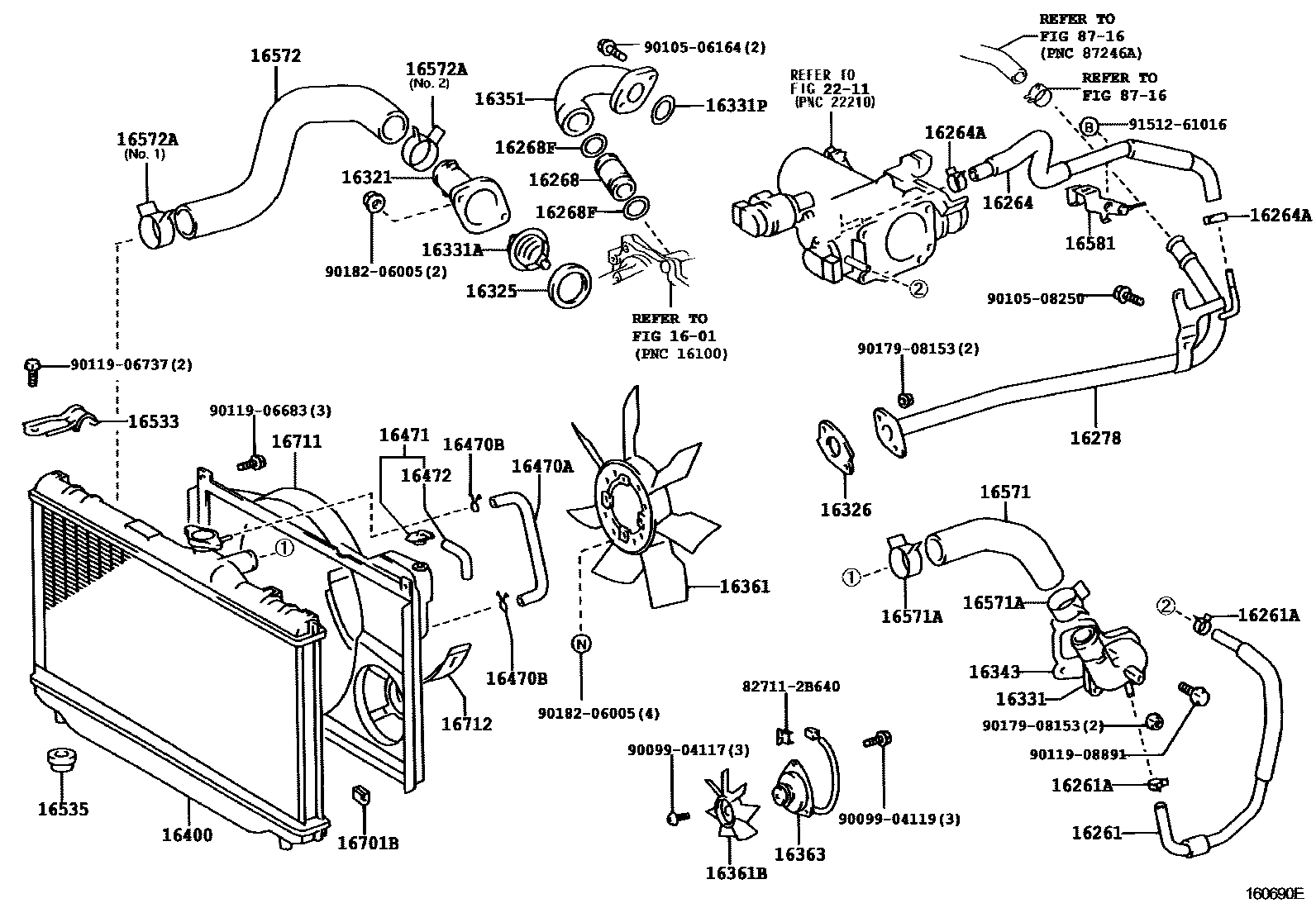

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1601

16261HOSE, WATER BY-PASS

main16261-46020i1JZGE,2JZGE..JCG1#199805-200104

main16261-46070i1JZFSE,2JZFSE..JCG1#200104

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13050i1JZGE,2JZGE..JCG1#199805-200104

sub96135-51300

main96135-51300i1JZFSE,2JZFSE..JCG1#200104

16264HOSE, WATER BY-PASS, NO.2

main16264-46041i1JZGE,2JZGE..JCG1#199805-200104

main16264-46071i1JZFSE,2JZFSE..JCG1#200104

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13050i1JZGE,2JZGE..JCG1#199805-200104

sub96135-51300

main96135-51300i1JZFSE,2JZFSE..JCG1#200104

16268PIPE, WATER BY-PASS, NO.1

main16268-46011i1JZGE,2JZGE..JCG1#199805-200104

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24022i1JZGE,2JZGE..JCG1#199805-200104

16278PIPE, WATER BY-PASS, NO.2

main16278-46040i1JZGE..JCG15199912-200104

main16278-46051i1JZGE,2JZGE..JCG10,11199805-200104

main16278-46070i1JZFSE,2JZFSE..JCG11,15200104-200407

sub16278-46071

main16278-46071i1JZFSE,2JZFSE..JCG11,15200407

main16278-46080i1JZFSE..JCG10200104

16321INLET, WATER

main16321-46040i1JZGE,2JZGE..JCG1#199805-200706

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1JZFSE,2JZFSE..JCG1#199805-200104

16326GASKET, WATER INLET HOUSING, NO.2

main16325-46010i1JZFSE,2JZFSE..JCG1#199805-200104

16331OUTLET, WATER

main16331-46022i1JZGE..JCG10,15199805-200104

main16331-46041i2JZGE..JCG11199805-200104

main16331-46090i2JZFSE..JCG11200104

main16331-46110i1JZFSE..JCG10,15200104

16331ATHERMOSTAT

main90916-03093i1JZGE,2JZGE..JCG1#199805-200104

main90916-03126i1JZFSE,2JZFSE..JCG1#200104

sub90916-03142

16331PRING,O(FOR WATER OUTLET)

main96761-24028i1JZGE,2JZGE..JCG1#199805-200104

main96761-24037i1JZFSE,2JZFSE..JCG1#200104

16343GASKET, WATER OUTLET HOUSING

main16343-46020i1JZGE,2JZGE..JCG1#199805-200104

16351OUTLET, WATER BY-PASS

main16351-46022i2JZGE..JCG11199805-200104

main16351-46050i1JZGE..JCG10,15199805-200104

16361FAN

main16361-46040i1JZFSE,2JZFSE..JCG10,11199805-200104

main16361-46070i1JZFSE,2JZFSE..JCG10,11200104

main16361-46130i1JZGE..JCG15199912-200104

main16361-46130i1JZFSE..JCG15200104

main16361-46150i1JZFSE..JCG15200104

16361BFAN, NO.2

main16361-46070i1JZGE,2JZGE..JCG10,11199805-200104

main16361-46140i1JZGE..JCG15199912-200101

main16361-46150i1JZGE..JCG15200101-200104

16363MOTOR, COOLING FAN

main16363-46110i1JZFSE..JCG15200104

main16363-46140i1JZFSE,2JZFSE..JCG10,11200104

main16363-64080i1JZGE..JCG15199912-200104

main16363-64080i1JZFSE..JCG15200104

main16363-74180i1JZGE,2JZGE..JCG10,11199805-200104

16400RADIATOR ASSY

main16400-46530i1JZGE,2JZGE..JCG10,11199805-200104

sub16400-46550

main16400-46540i1JZGE..JCG15199912-200104

main16400-46690i1JZFSE..JCG10200104

main16400-46700i1JZFSE..JCG15200104

main16400-46710i2JZFSE..JCG11200104

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-46100i1JZGE,2JZGE..JCG10,11199805-200104

main16377-46130i1JZGE..JCG15199912-200104

main16377-46170i1JZFSE..JCG15200104

main16565-46060i1JZFSE,2JZFSE..JCG10,11200104

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1JZGE,2JZGE..JCG1#199805-200104

16471CAP SUB-ASSY, RESERVE TANK

main16376-50030i1JZGE..JCG15199912-200104

main16405-46090i1JZGE,2JZGE..JCG10,11199805-200104

main16405-46150i1JZFSE..JCG15200104-200706

main16405-46200i1JZFSE..JCG15200104-200706

main16471-70010i1JZFSE,2JZFSE..JCG10,11200104-200706

16472HOSE, BREATHER

main16479-74180i1JZGE,2JZGE..JCG10,11199805-200104

main90099-33534i1JZGE..JCG15199912-200104

16533SUPPORT, RADIATOR, UPPER

main16505-46070i1JZGE,2JZGE..JCG10,11199805-200104

main16505-46100i1JZGE..JCG15199912-200104

16535SUPPORT, RADIATOR, LOWER

main90480-40021i1JZGE,2JZGE..JCG1#199805-200104

16571HOSE, RADIATOR, INLET

main16571-46240i1JZGE,2JZGE..JCG10,11199805-200104

main16571-46300i1JZGE..JCG15199912-200104

main16571-46350i1JZFSE..JCG10200104

main16571-46360i1JZFSE..JCG15200104

main16571-46400i2JZFSE..JCG11200104

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i1JZFSE,2JZFSE..JCG1#200104

main90467-37006i1JZGE,2JZGE..JCG1#199805-200104

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-46230i1JZGE,2JZGE..JCG10,11199805-200104

main16572-46280i1JZGE..JCG15199912-200104

main16572-46310i1JZFSE..JCG15200104

main16572-46330i1JZFSE,2JZFSE..JCG10,11200104

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41003i1JZFSE,2JZFSE..JCG1#199911-200307

main90466-41007i1JZFSE,2JZFSE..JCG1#200308-200409

main90467-37005i1JZFSE,2JZFSE..JCG1#200104

main90467-37006i1JZGE,2JZGE..JCG1#199805-200104

sub90467-37005

main90467-41007i1JZGE,2JZGE..JCG1#199805-199910

sub90467-41002

main96136-54801i1JZFSE,2JZFSE..JCG1#200410

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-46040i1JZGE,2JZGE..JCG1#199805-200104

16701BCUSHION, FAN SHROUD

main90541-11002i1JZGE,2JZGE..JCG1#199805-200104

16711SHROUD, FAN

main16711-46280i1JZGE,2JZGE..JCG10,11199805-200104

main16711-46340i1JZGE..JCG15199912-200104

main16711-46390i1JZFSE,2JZFSE..JCG10,11200104

main16711-46400i1JZFSE..JCG15200104-200305

sub16711-46401

main16711-46401i1JZFSE..JCG15200305

16712SHROUD, FAN, NO.2

main16712-46050i1JZGE,2JZGE..JCG10,11199805-200104

2211

8716

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

9009904117

main90099-04117

9009904119

main90099-04119

9010506164

main90105-06164

9010508250

main90105-08250

9011906683

main90119-06683

9011906737

main90119-06737

9011908891

main90119-08891

9017908153

main90179-08153

9018206005

main90182-06005

9151261016

main91512-61016

47 parts on this diagram · 8 diagrams in section
