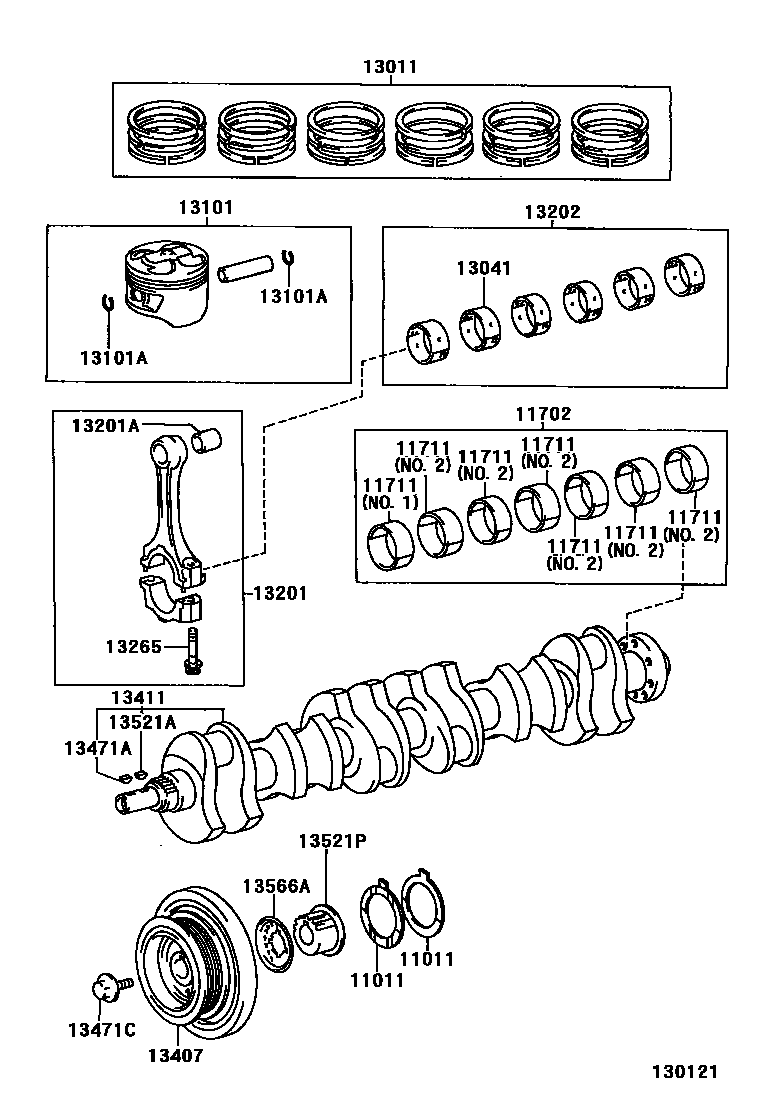

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-46030i1JZGE,2JZGE..JCG1#199805-200104

11702BEARING SET, CRANKSHAFT

main11704-46020i1JZGE,2JZGE..JCG1#199805-199906

sub11704-46030

main11704-46030i1JZGE,2JZGE..JCG1#199906-200107

main11704-46040i1JZFSE,2JZFSE..JCG1#200107

11711BEARING, CRANKSHAFT

main11071-46010-01i1JZGE,2JZGE..JCG1#199805-199906

sub11071-46020

main11071-46010-02i1JZGE,2JZGE..JCG1#199805-199906

sub11071-46020

main11071-46010-03i1JZGE,2JZGE..JCG1#199805-199906

sub11071-46020

main11071-46010-04i1JZGE,2JZGE..JCG1#199805-199906

sub11071-46020

main11071-46010-05i1JZGE,2JZGE..JCG1#199805-199906

sub11071-46020

main11071-46020-01i1JZFSE,2JZFSE..JCG1#199906-200106

main11071-46020-02i1JZFSE,2JZFSE..JCG1#199906-200106

main11071-46020-03i1JZFSE,2JZFSE..JCG1#199906-200106

main11071-46020-04i1JZGE,2JZGE..JCG1#199906-200106

main11071-46020-05i1JZFSE,2JZFSE..JCG1#199906-200106

main11071-46020-06i1JZGE,2JZGE..JCG10,11199909-200104

MARK 6,NO1,MARK 6

main11071-46030-01i1JZFSE,2JZFSE..JCG1#200106

main11071-46030-02i1JZFSE,2JZFSE..JCG1#200106

main11071-46030-03i1JZFSE,2JZFSE..JCG1#200106

main11071-46030-04i1JZFSE,2JZFSE..JCG1#200106

main11071-46030-05i1JZFSE,2JZFSE..JCG1#200106

main11701-46010-01i1JZGE,2JZGE..JCG1#199805-199906

sub11701-46020

main11701-46010-02i1JZGE,2JZGE..JCG1#199805-199906

sub11701-46020

main11701-46010-03i1JZGE,2JZGE..JCG1#199805-199906

sub11701-46020

main11701-46010-04i1JZGE,2JZGE..JCG1#199805-199906

sub11701-46020

main11701-46010-05i1JZGE,2JZGE..JCG1#199805-199906

sub11701-46020

main11701-46020-01i1JZGE..JCG15199906-200104

main11701-46020-02i1JZFSE,2JZFSE..JCG1#199906-200104

main11701-46020-03i1JZGE,2JZGE..JCG1#199906-200104

main11701-46020-04i1JZGE,2JZGE..JCG1#199906-200104

main11701-46020-05i1JZGE,2JZGE..JCG1#199906-200104

main11701-46020-06i1JZGE,2JZGE..JCG10,11199909-200104

MARK 6,NO2,MARK 6

13011RING SET, PISTON

main13011-46030i1JZGE..JCG10,15199805-200104

main13011-46041i2JZGE..JCG11199805-200104

main13011-46060i2JZFSE..JCG11200104-200106

sub13011-46061

main13011-46061i2JZFSE..JCG11200106

main13011-46070i1JZFSE..JCG10,15200104

13041BEARING, CONNECTING ROD

main13041-46012-01i1JZGE,2JZGE..JCG1#199805-199906

sub13041-46013

main13041-46012-02i1JZGE,2JZGE..JCG1#199805-199906

sub13041-46013

main13041-46012-03i1JZGE,2JZGE..JCG1#199805-199906

sub13041-46013

main13041-46012-04i1JZGE,2JZGE..JCG1#199805-199906

sub13041-46013

main13041-46012-05i1JZGE,2JZGE..JCG1#199805-199906

sub13041-46013

main13041-46013-01i1JZGE,2JZGE..JCG1#199906-200107

main13041-46013-02i1JZGE,2JZGE..JCG1#199906-200107

main13041-46013-03i1JZGE,2JZGE..JCG1#199906-200107

main13041-46013-04i1JZGE,2JZGE..JCG1#199906-200107

main13041-46013-05i1JZGE,2JZGE..JCG1#199906-200107

main13041-46020-01i1JZFSE,2JZFSE..JCG1#200108

main13041-46020-02i1JZFSE,2JZFSE..JCG1#200108

main13041-46020-03i1JZFSE,2JZFSE..JCG1#200108

main13041-46020-04i1JZFSE,2JZFSE..JCG1#200108

main13041-46020-05i1JZFSE,2JZFSE..JCG1#200108

13101PISTON SUB-ASSY, W/PIN

main13101-46070i1JZGE..JCG10199805-199908

sub13101-46071

main13101-46071i1JZGE..JCG10,15199908-200104

main13101-46080i2JZGE..JCG11199805-199908

sub13101-46081

main13101-46081i2JZGE..JCG11199908-200104

main13101-46100i2JZFSE..JCG11200104

main13101-46110i1JZFSE..JCG10,15200104

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i1JZFSE,2JZFSE..JCG1#200412

main90521-25004i1JZFSE,2JZFSE..JCG1#199805-200412

sub90520-22025

13201ROD SUB-ASSY, CONNECTING

main13201-46050i1JZGE..JCG10,15199805-200008

sub13201-46051

main13201-46051i1JZFSE..JCG10,15200008-200104

main13201-46060i2JZGE..JCG11199805-199907

sub13201-46061

main13201-46061i2JZFSE..JCG11199907-200104

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73128i1JZFSE,2JZFSE..JCG1#199805-200104

13202BEARING SET, CONNECTING ROD

main13204-46022i1JZGE,2JZGE..JCG1#199805-199909

sub13204-46023

main13204-46023i1JZGE,2JZGE..JCG1#199909-200108

main13204-46030i1JZFSE,2JZFSE..JCG1#200108

13265BOLT, CONNECTING ROD

main13265-46020i1JZGE,2JZGE..JCG1#199805-200104

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-46020i1JZGE,2JZGE..JCG1#199805-200104

main13407-46050i1JZFSE,2JZFSE..JCG1#200104

13411CRANKSHAFT

main13401-46010i1JZGE..JCG10199805-199907

sub13401-46011

main13401-46011i1JZGE..JCG10,15199907-200008

sub13401-46012

main13401-46012i1JZGE..JCG10,15200008-200104

main13401-46020i2JZGE..JCG11199805-199907

sub13401-46021

main13401-46021i2JZGE..JCG11199907-200008

sub13401-46022

main13401-46022i2JZGE..JCG11200008-200104

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i1JZGE,2JZGE..JCG1#199805-200104

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-18002i1JZGE,2JZGE..JCG1#199805-200104

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i1JZGE,2JZGE..JCG1#199805-200104

13521PPULLEY, CRANKSHAFT TIMING

main13521-46040i1JZGE,2JZGE..JCG1#199805-200104

13566AGUIDE, TIMING BELT

main13566-46010i1JZGE,2JZGE..JCG1#199805-200104

18 parts on this diagram · 1 diagram in section
