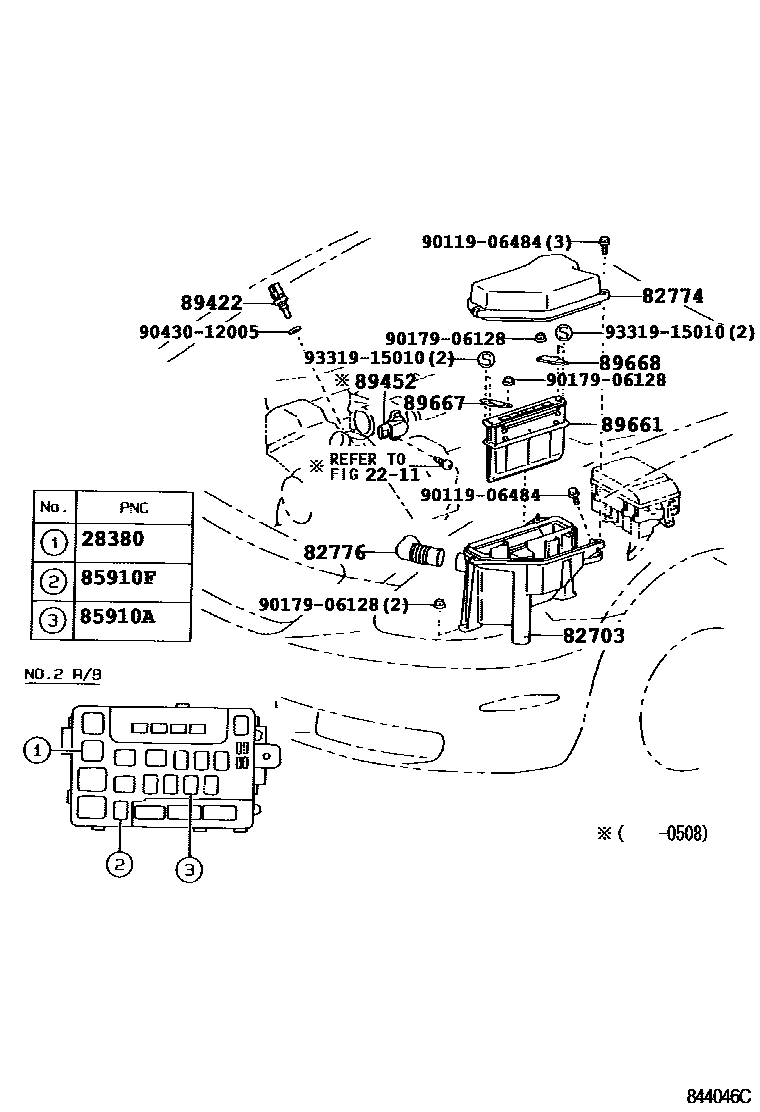

ELECTRONIC FUEL INJECTION SYSTEM

2211

28380RELAY ASSY, FUEL PUMP

main90987-03003i3UZFE..UZZ40200104-200508

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-24020iUZZ40200104-200508

82774COVER, ENGINE ROOM ECU

main82774-30040iUZZ40200104-200508

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30070iUZZ40200104-200508

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iUZZ40200104-200508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iUZZ40200104-200508

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iUZZ40200104-200508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30150iUZZ40200104-200508

89661COMPUTER, ENGINE CONTROL

main89661-24640iUZZ40200104-200508

main89661-24730iUZZ40200508

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30280iUZZ40200104-200508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30230iUZZ40200104-200508

9011906484

main90119-06484

9017906128

main90179-06128

9043012005

main90430-12005

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
