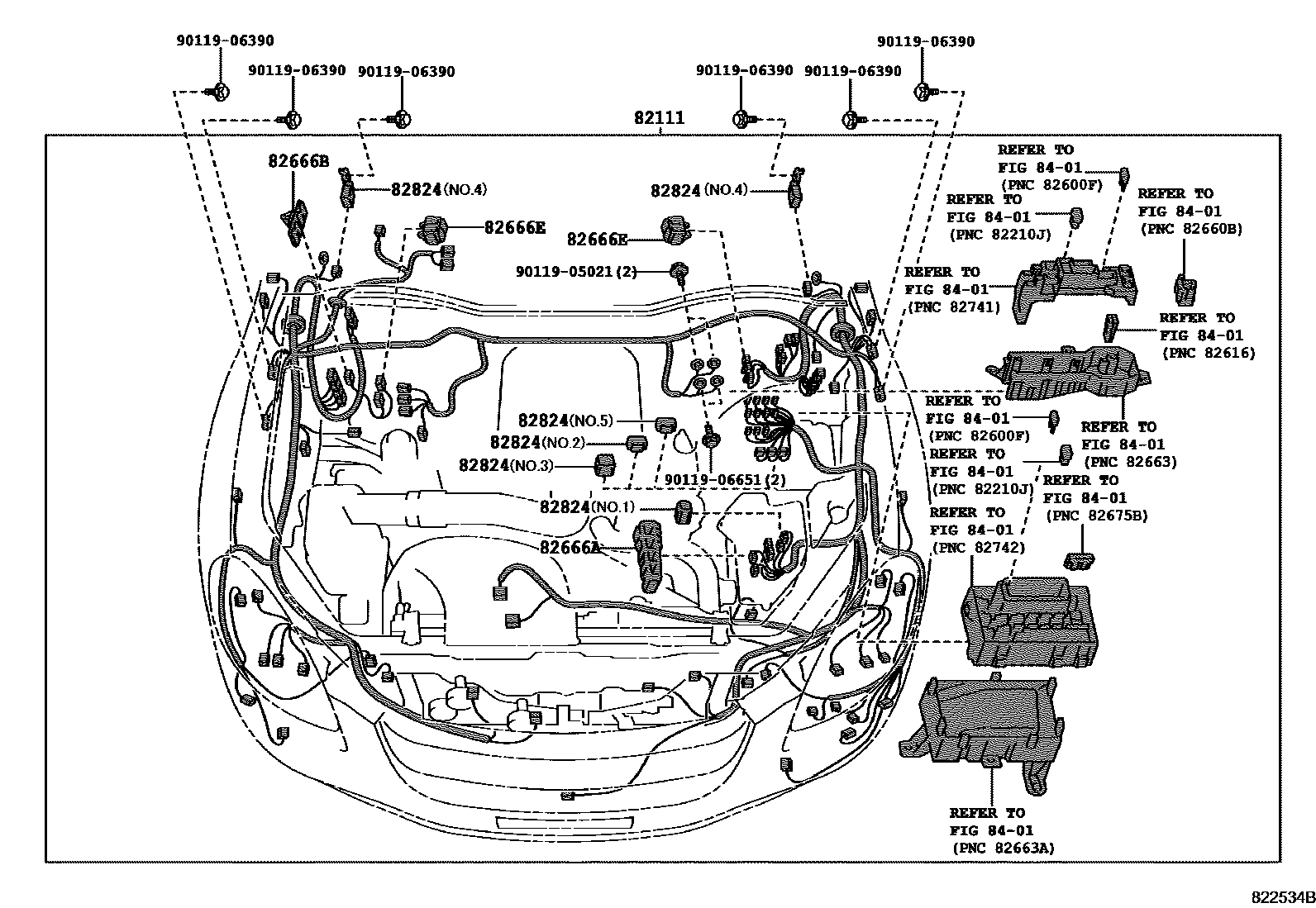

WIRING & CLAMP

0001 1������-� 0002 1����� 0003 1������������ 0004 1���,�-�,��� & ����-�� 0005 1�-� 0006 1�-�������� 0007 1����� & ������ 0008 1����

82111WIRE, ENGINE ROOM MAIN

main82111-2U040iUZZ40200104-200508

main82111-2U041iUZZ40200508-200608

main82111-2U042iUZZ40200608-200808

main82111-2U043iUZZ40200808

82666AHOLDER, CONNECTOR NO.2

main82666-30610iUZZ40200104-200508

82666BHOLDER, CONNECTOR NO.3

main82666-60030iUZZ40200104-200508

82666EHOLDER, CONNECTOR NO.6

main82666-22140iUZZ40200104-200508

82824CONNECTOR, WIRING HARNESS

main82824-12210iUZZ40200104-200508

main82824-22070iUZZ40200104-200508

main82824-30170iUZZ40200508

main82824-30220iUZZ40200104-200508

main82824-48010iUZZ40200104-200508

main82824-50110iUZZ40200104-200508

9011905021

main90119-05021

9011906390

main90119-06390

9011906651

main90119-06651

8 parts on this diagram · 8 diagrams in section
