LOCK CYLINDER SET
55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK
55569ACOVER, GLOVE COMPARTMENT DOOR LOCK
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69570CYLINDER ASSY, IGNITION SWITCH LOCK
69590CYLINDER ASSY, CONSOLE COMPARTMENT LOCK
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89745ABATTERY, TRANSMITTER
"THE ETERNAL JEWEL" *(J)
89786BTRANSMITTER, TRANSPONDER KEY SUB
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9016150007
main90161-50007
9356855012
main93568-55012

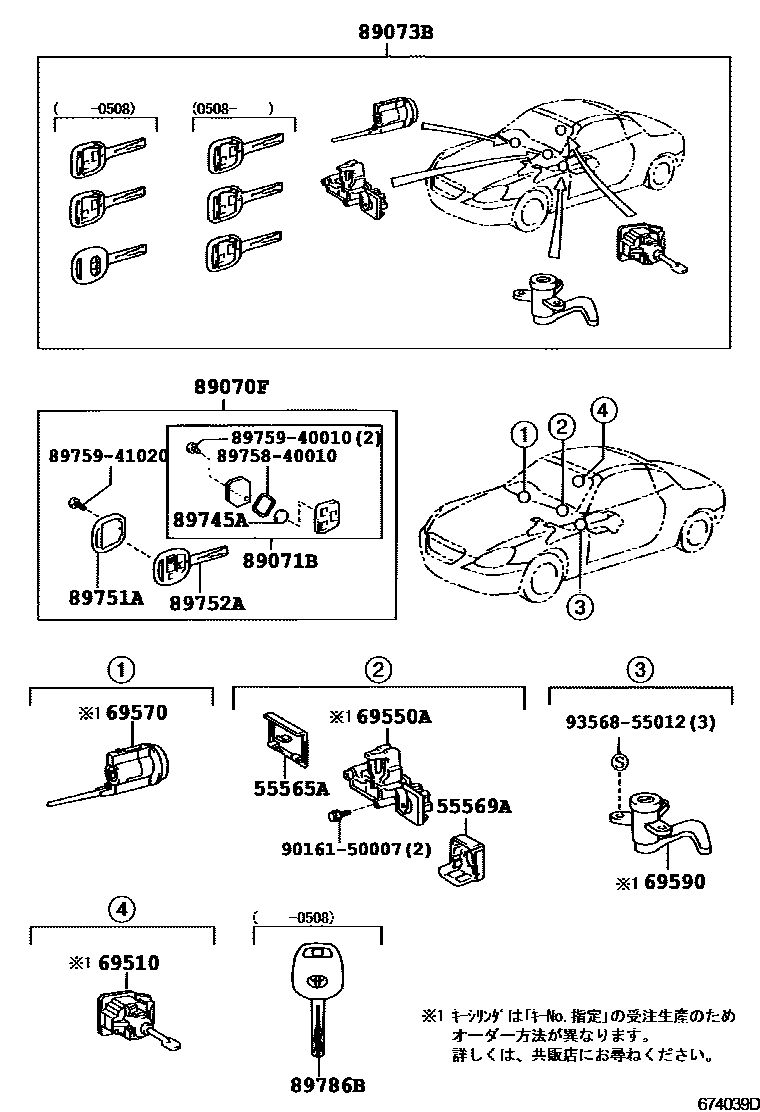

18 parts on this diagram · 1 diagram in section
