FRONT DOOR LOCK & HANDLE

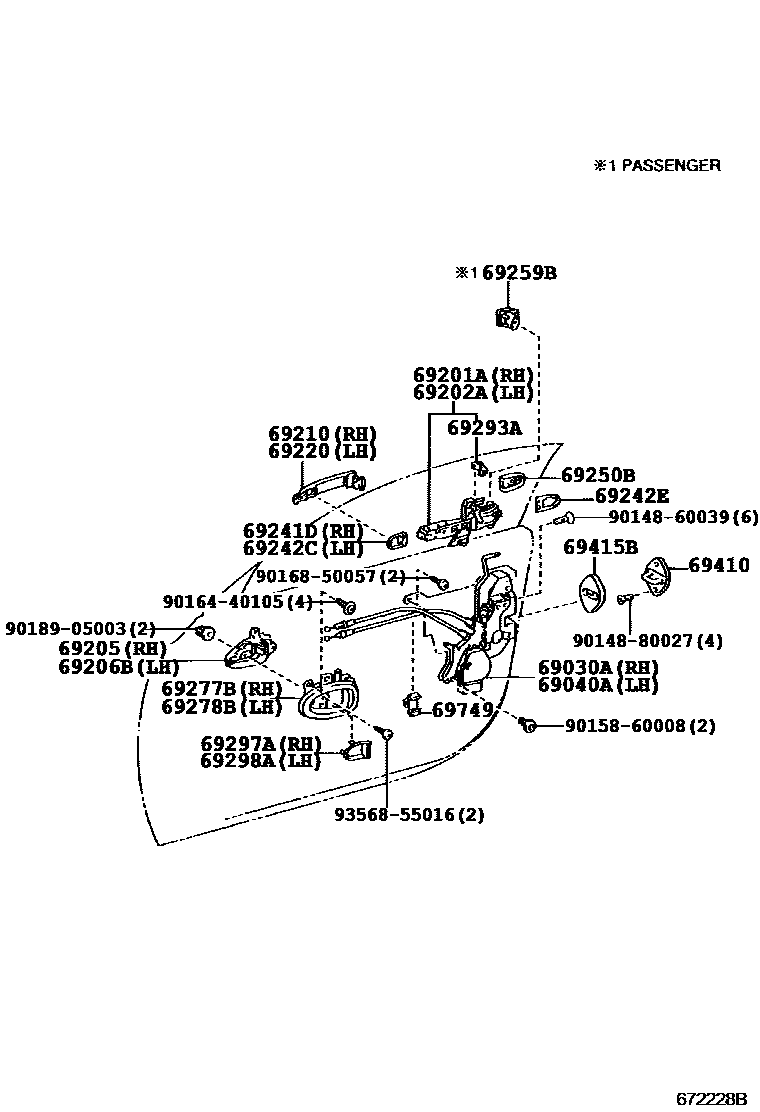

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-24100i200104-200508
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-24110i200104-200508
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-50011i200104-200508
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-50011i200104-200508
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-30140-A0i200104-200508
ECRU,TRIM0#
sub69205-30140
main69205-30140-C0i200508
BLACK,TRIM2#
sub69205-30140
main69205-30140-C0i200104-200508
BLACK,TRIM20,21
sub69205-30140
main69205-30140-D0i200208-200508
RED,TRIM3#
sub69205-30140
main69205-30140-E1i200508
CAMEL,TRIM4#
sub69205-30140
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-30140-A0i200104-200508
ECRU,TRIM0#
sub69206-30140
main69206-30140-C0i200104-200508
BLACK,TRIM20,21
sub69206-30140
main69206-30140-C0i200508
BLACK,TRIM2#
sub69206-30140
main69206-30140-D0i200208-200508
RED,TRIM3#
sub69206-30140
main69206-30140-E1i200508
CAMEL,TRIM4#
sub69206-30140
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-50050-A2i200104-200608
WHITE PEARL CS.,065
sub69210-50050
main69210-50050-A4i200608
WHITE PEARL CS.,077
sub69210-50050
main69210-50050-A4i201003-201007
"THE ETERNAL JEWEL" *(J),WHITE PEARL CS.,2KF ,2KG
sub69210-50050
main69210-50050-B1i200104-200508
SILVER ME.,1C0
sub69210-50050
main69210-50050-B2i200104-200508
COSMO SILVER,1F1
sub69210-50050
main69210-50050-B4i201003-201007
"THE ETERNAL JEWEL" *(J),PREMIUM SILVER,2KJ
sub69210-50050
main69210-50050-B4i200508
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-B5i200508
DK.GRAY MC.,1G0
sub69210-50050
main69210-50050-C0i200104-200508
BLACK,202 ,3P0
sub69210-50050
main69210-50050-C0i200508-200608
BLACK,202
sub69210-50050
main69210-50050-C2i201003-201007
"THE ETERNAL JEWEL" *(J),BLACK,2KK
sub69210-50050
main69210-50050-C2i200608
BLACK,212
sub69210-50050
main69210-50050-D2i200104-200508
SUPER RED 5,3P0
sub69210-50050
main69210-50050-D3i200104-200808
BLACKISH RED MC.,3P6
sub69210-50050
main69210-50050-D4i200508
RED MC.CS.,3R1
sub69210-50050
main69210-50050-D4i201003-201007
"THE ETERNAL JEWEL" *(J),RED MC.CS.,2KM ,2KN
sub69210-50050
main69210-50050-D5i200808
SHELL M.M.,3R4
sub69210-50050
main69210-50050-E1i200104-200508
BEIGE M.M.,4Q8
sub69210-50050
main69210-50050-E3i200508-200708
PREMIUM BEIGE,4S7
sub69210-50050
main69210-50050-E4i200508-200908
PREMIUM BROWN,4T2
sub69210-50050
main69210-50050-E5i200708
BEIGE ME.,4T1
sub69210-50050
main69210-50050-G1i200104-200508
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-G3i200508
PREMIUM YELLOW GREEN,6U8
sub69210-50050
main69210-50050-J1i200104-200608
DK.BLUE M.M.,8P4
sub69210-50050
main69210-50050-J4i200508-200808
LT.BLUE ME.,8R6
sub69210-50050
main69210-50050-J5i200608
DK.BLUE MC. CC.,8U0
sub69210-50050
main69210-50050-J6i200908
BLUE M.M.,8U4
sub69210-50050
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-50050-A2i200104-200608
WHITE PEARL CS.,065
sub69210-50050
main69210-50050-A4i200608
WHITE PEARL CS.,077
sub69210-50050
main69210-50050-A4i201003-201007
"THE ETERNAL JEWEL" *(J),WHITE PEARL CS.,2KF ,2KG
sub69210-50050
main69210-50050-B1i200104-200508
SILVER ME.,1C0
sub69210-50050
main69210-50050-B2i200104-200508
COSMO SILVER,1F1
sub69210-50050
main69210-50050-B4i201003-201007
"THE ETERNAL JEWEL" *(J),PREMIUM SILVER,2KJ
sub69210-50050
main69210-50050-B4i200508
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-B5i200508
DK.GRAY MC.,1G0
sub69210-50050
main69210-50050-C0i200104-200508
BLACK,202 ,3P0
sub69210-50050
main69210-50050-C0i200508-200608
BLACK,202
sub69210-50050
main69210-50050-C2i200608
BLACK,212
sub69210-50050
main69210-50050-C2i201003-201007
"THE ETERNAL JEWEL" *(J),BLACK,2KK
sub69210-50050
main69210-50050-D2i200104-200508
SUPER RED 5,3P0
sub69210-50050
main69210-50050-D3i200104-200808
BLACKISH RED MC.,3P6
sub69210-50050
main69210-50050-D4i201003-201007
"THE ETERNAL JEWEL" *(J),RED MC.CS.,2KM ,2KN
sub69210-50050
main69210-50050-D4i200508
RED MC.CS.,3R1
sub69210-50050
main69210-50050-D5i200808
SHELL M.M.,3R4
sub69210-50050
main69210-50050-E1i200104-200508
BEIGE M.M.,4Q8
sub69210-50050
main69210-50050-E3i200508-200708
PREMIUM BEIGE,4S7
sub69210-50050
main69210-50050-E4i200508-200908
PREMIUM BROWN,4T2
sub69210-50050
main69210-50050-E5i200708
BEIGE ME.,4T1
sub69210-50050
main69210-50050-G1i200104-200508
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-G3i200508
PREMIUM YELLOW GREEN,6U8
sub69210-50050
main69210-50050-J1i200104-200608
DK.BLUE M.M.,8P4
sub69210-50050
main69210-50050-J4i200508-200808
LT.BLUE ME.,8R6
sub69210-50050
main69210-50050-J5i200608
DK.BLUE MC. CC.,8U0
sub69210-50050
main69210-50050-J6i200908
BLUE M.M.,8U4
sub69210-50050
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-50020i200104-200508
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-50020i200104-200508
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-50020i200104-200508
69250BCOVER ASSY, DOOR OUTSIDE HANDLE
main69250-50011-A2i200104-200608
sub69250-50011
main69250-50011-A4i200608
sub69250-50011
main69250-50011-A4i201003-201007
sub69250-50011
main69250-50011-B1i200104-200508
sub69250-50011
main69250-50011-B2i200104-200508
sub69250-50011
main69250-50011-B4i200508
sub69250-50011
main69250-50011-B4i201003-201007
sub69250-50011
main69250-50011-B5i200508
sub69250-50011
main69250-50011-C0i200508-200608
sub69250-50011
main69250-50011-C0i200104-200508
sub69250-50011
main69250-50011-C2i200608
sub69250-50011
main69250-50011-C2i201003-201007
sub69250-50011
main69250-50011-D2i200104-200508
sub69250-50011
main69250-50011-D3i200104-200808
sub69250-50011
main69250-50011-D4i200508
sub69250-50011
main69250-50011-D4i201003-201007
sub69250-50011
main69250-50011-D5i200808
sub69250-50011
main69250-50011-E1i200104-200508
sub69250-50011
main69250-50011-E3i200508-200708
sub69250-50011
main69250-50011-E4i200508-200908
sub69250-50011
main69250-50011-E5i200708
sub69250-50011
main69250-50011-G1i200104-200508
sub69250-50011
main69250-50011-G3i200508
sub69250-50011
main69250-50011-J1i200104-200608
sub69250-50011
main69250-50011-J4i200508-200808
sub69250-50011
main69250-50011-J5i200608
sub69250-50011
main69250-50011-J6i200908
sub69250-50011
main69250-50021-A2i200104-200608
sub69250-50021
main69250-50021-A4i201003-201007
sub69250-50021
main69250-50021-A4i200608
sub69250-50021
main69250-50021-B1i200104-200508
sub69250-50021
main69250-50021-B2i200104-200508
sub69250-50021
main69250-50021-B4i200508
sub69250-50021
main69250-50021-B4i201003-201007
sub69250-50021
main69250-50021-B5i200508
sub69250-50021
main69250-50021-C0i200508-200608
sub69250-50021
main69250-50021-C0i200104-200508
sub69250-50021
main69250-50021-C2i201003-201007
sub69250-50021
main69250-50021-C2i200608
sub69250-50021
main69250-50021-D2i200104-200508
sub69250-50021
main69250-50021-D3i200104-200808
sub69250-50021
main69250-50021-D4i200508
sub69250-50021
main69250-50021-D4i201003-201007
sub69250-50021
main69250-50021-D5i200808
sub69250-50021
main69250-50021-E1i200104-200508
sub69250-50021
main69250-50021-E3i200508-200708
sub69250-50021
main69250-50021-E4i200508-200908
sub69250-50021
main69250-50021-E5i200708
sub69250-50021
main69250-50021-G1i200104-200508
sub69250-50021
main69250-50021-G3i200508
sub69250-50021
main69250-50021-J1i200104-200608
sub69250-50021
main69250-50021-J4i200508-200808
sub69250-50021
main69250-50021-J5i200608
sub69250-50021
main69250-50021-J6i200908
sub69250-50021
69259BRETAINER, DOOR OUTSIDE HANDLE, LH
main69259-50011i200104-200508
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-24040-A0i200104-200508
ECRU,TRIM0#
main69277-24040-C0i200508
BLACK,TRIM2#
main69277-24040-C0i200104-200508
BLACK,TRIM20,21
main69277-24040-D0i200208-200508
RED,TRIM3#
main69277-24040-E0i200508
CAMEL,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-24040-A0i200104-200508
ECRU,TRIM0#
main69278-24040-C0i200104-200508
BLACK,TRIM20,21
main69278-24040-C0i200508
BLACK,TRIM2#
main69278-24040-D0i200208-200508
RED,TRIM3#
main69278-24040-E0i200508
CAMEL,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050i200104-200508
main69293-12060i200104-200508
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
main69297-24020-A0i200104-200508
ECRU,TRIM0#
main69297-24020-C0i200508
BLACK,TRIM2#
main69297-24020-C0i200104-200508
BLACK,TRIM20,21
main69297-24020-D0i200208-200508
RED,TRIM3#
main69297-24020-E0i200508
CAMEL,TRIM4#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
main69298-24020-A0i200104-200508
ECRU,TRIM0#
main69298-24020-C0i200508
BLACK,TRIM2#
main69298-24020-C0i200104-200508
BLACK,TRIM20,21
main69298-24020-D0i200208-200508
RED,TRIM3#
main69298-24020-E0i200508
CAMEL,TRIM4#
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-51010i200104-200508
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-30020i200104-200508
69749CLAMP, FRONT DOOR LOCK LINK
main69749-30050i200104-200508
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016440105
main90164-40105
9016850057
main90168-50057
9018905003
main90189-05003
9356855016
main93568-55016

28 parts on this diagram · 1 diagram in section
