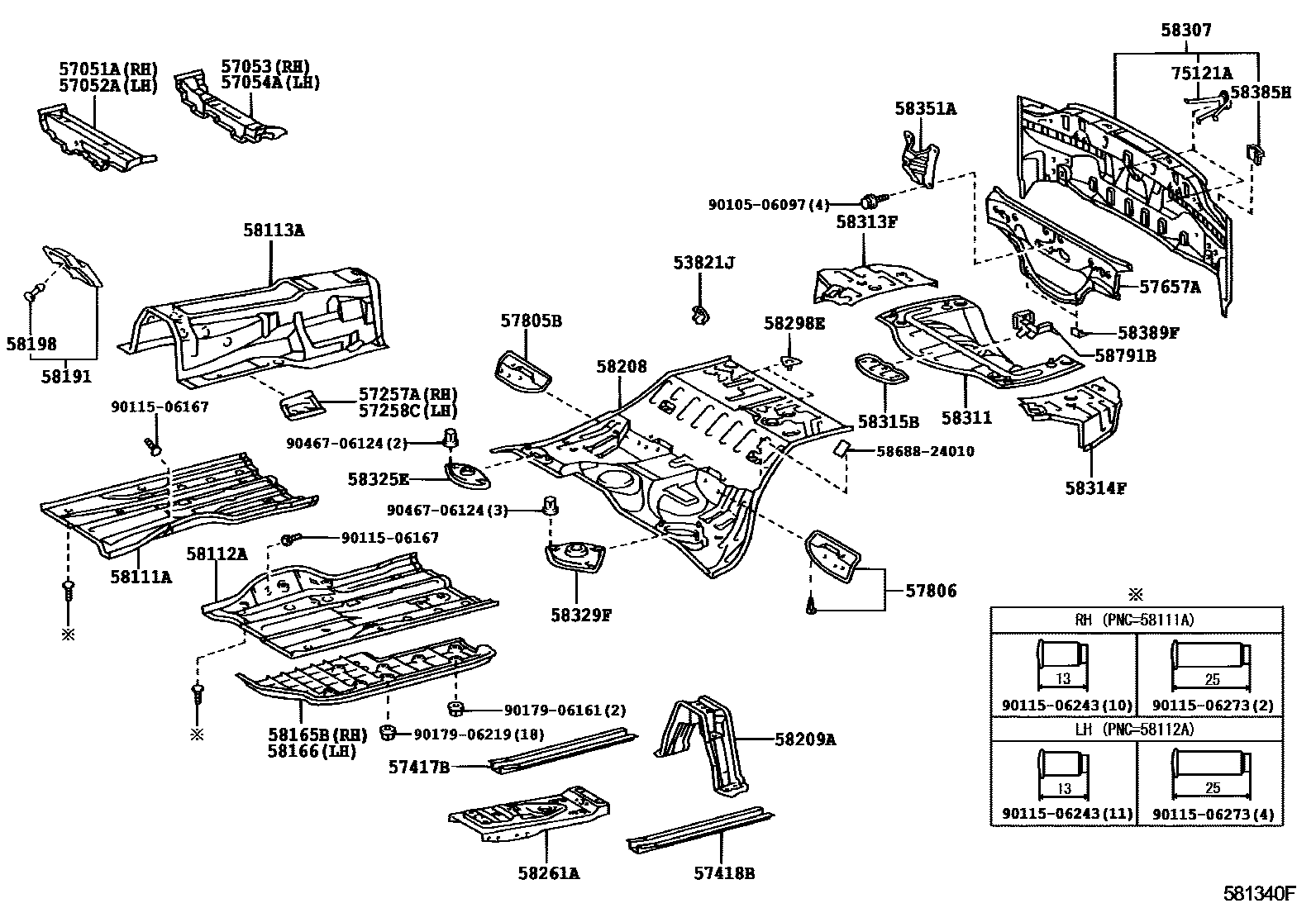

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1������-�

53821JBRACKET, CENTER FLOOR PAN

main53821-16010iUZZ40200104-200508

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-24010iUZZ40200104-200508

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-24010iUZZ40200104-200508

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-24010iUZZ40200104-200508

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-24010iUZZ40200104-200508

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30030iUZZ40200104-200508

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-30070iUZZ40200104-200508

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-24030iUZZ40200104-200508

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-24030iUZZ40200104-200508

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-24010iUZZ40200104-200802

sub57657-24011

main57657-24011iUZZ40200803

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-24020iUZZ40200104-200508

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-24900iUZZ40200104-200508

58111APAN, FRONT FLOOR, RH

main58111-24900iUZZ40..5FC200104-200405

sub58111-24901

main58111-24901iUZZ40200405-200508

58112APANEL, FRONT FLOOR, LH

main58112-24902iUZZ40..5FC200104-200405

sub58112-24903

main58112-24903iUZZ40200405-200508

58113APANEL, FRONT FLOOR, CENTER

main58113-24050iUZZ40200104-200508

main58113-24051iUZZ40200508

58165BCOVER, FRONT FLOOR, RH

main58165-24020iUZZ40200104-200508

58166COVER, FRONT FLOOR, LH

main58166-24010iUZZ40200104-200508

58191FOOTREST, FRONT FLOOR

main58191-24040iUZZ40200608-200907

sub58191-24041

main58191-24041iUZZ40200908

main58191-30070iUZZ40200104-200608

58198CLIP, FOOTREST

main58198-33010iUZZ40200104-200508

58208PAN, CENTER FLOOR

main58211-24060iUZZ40200104-200508

main58211-24902iUZZ40200508

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-24020iUZZ40200104-200508

58261ACOVER, TRANSMISSION

main58261-24050iUZZ40200104-200508

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30021iUZZ40200104-200508

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-24070iUZZ40200104-200804

sub58307-24071

sub90950-01864

main58307-24071iUZZ40200804

58311PAN, REAR FLOOR

main58311-24050iUZZ40200104-200508

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-24040iUZZ40200104-200508

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-24040iUZZ40200104-200508

58315BPANEL, REAR FLOOR, FRONT

main58315-24020iUZZ40200104-200508

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iUZZ40200104-200508

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30020iUZZ40200104-200508

58351ABRACKET, SPARE WHEEL CARRIER

main51938-24010iUZZ40200104-200508

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-53010iUZZ40200104-200508

58389FBRACKET, LOWER BACK COVER

main58389-30020iUZZ40200104-200508

58791BCARRIER, JACK

main58791-30030iUZZ40200104-200508

75121ABRACKET, REAR LICENSE PLATE

main75121-24030iUZZ40200104-200508

5868824010

main58688-24010

9010506097

main90105-06097

9011506167

main90115-06167

9011506243

main90115-06243

9011506273

main90115-06273

9017906161

main90179-06161

9017906219

main90179-06219

9046706124

main90467-06124

43 parts on this diagram · 3 diagrams in section
