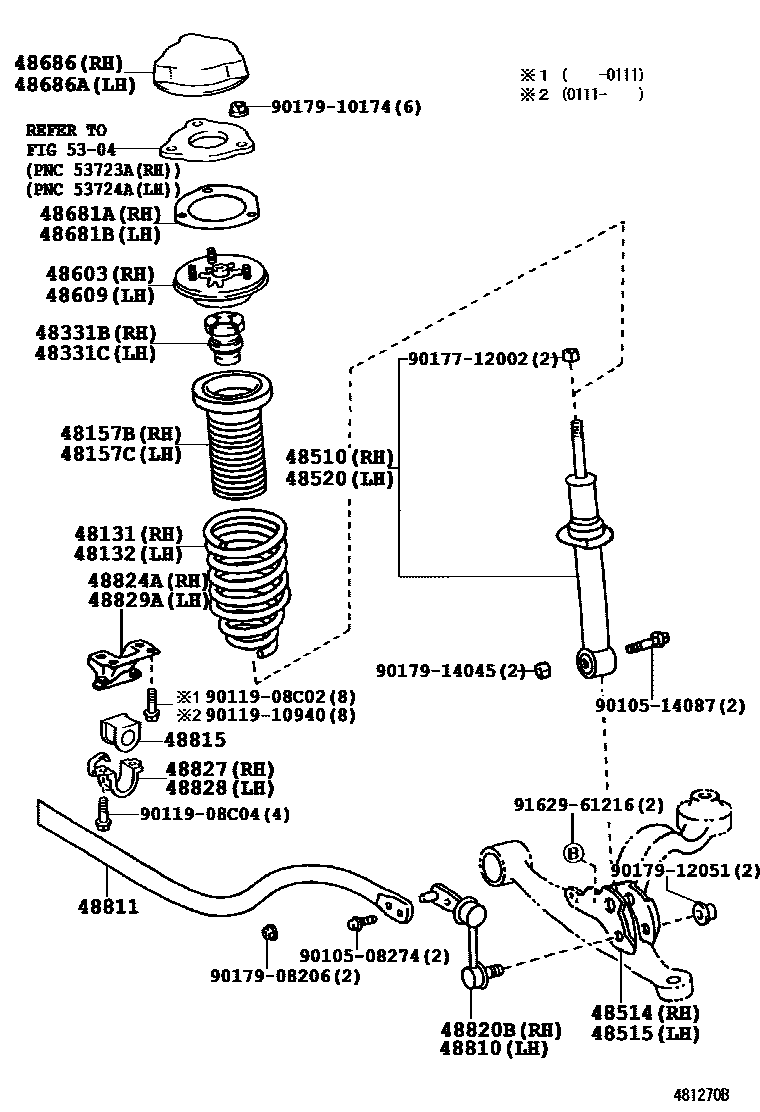

FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48681AGASKET, FRONT SUSPENSION SUPPORT, RH
48681BGASKET, FRONT SUSPENSION SUPPORT, LH
48686COVER, FRONT SUSPENSION SUPPORT, RH
48686ACOVER, FRONT SUSPENSION SUPPORT, LH
48810LINK ASSY, FRONT STABILIZER, LH
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
sub48824-30110
48828BRACKET, FRONT STABILIZER, NO.2 LH
sub48824-30110
48829ABRACKET, FRONT STABILIZER, NO.1 LH
5304
9010508274
main90105-08274
9010514087
main90105-14087
9011908C02
main90119-08C02
9011908C04
main90119-08C04
9011910940
main90119-10940
9017712002
main90177-12002
9017908206
main90179-08206
9017910174
main90179-10174
9017912051
main90179-12051
9017914045
main90179-14045
9162961216
main91629-61216
36 parts on this diagram · 1 diagram in section
