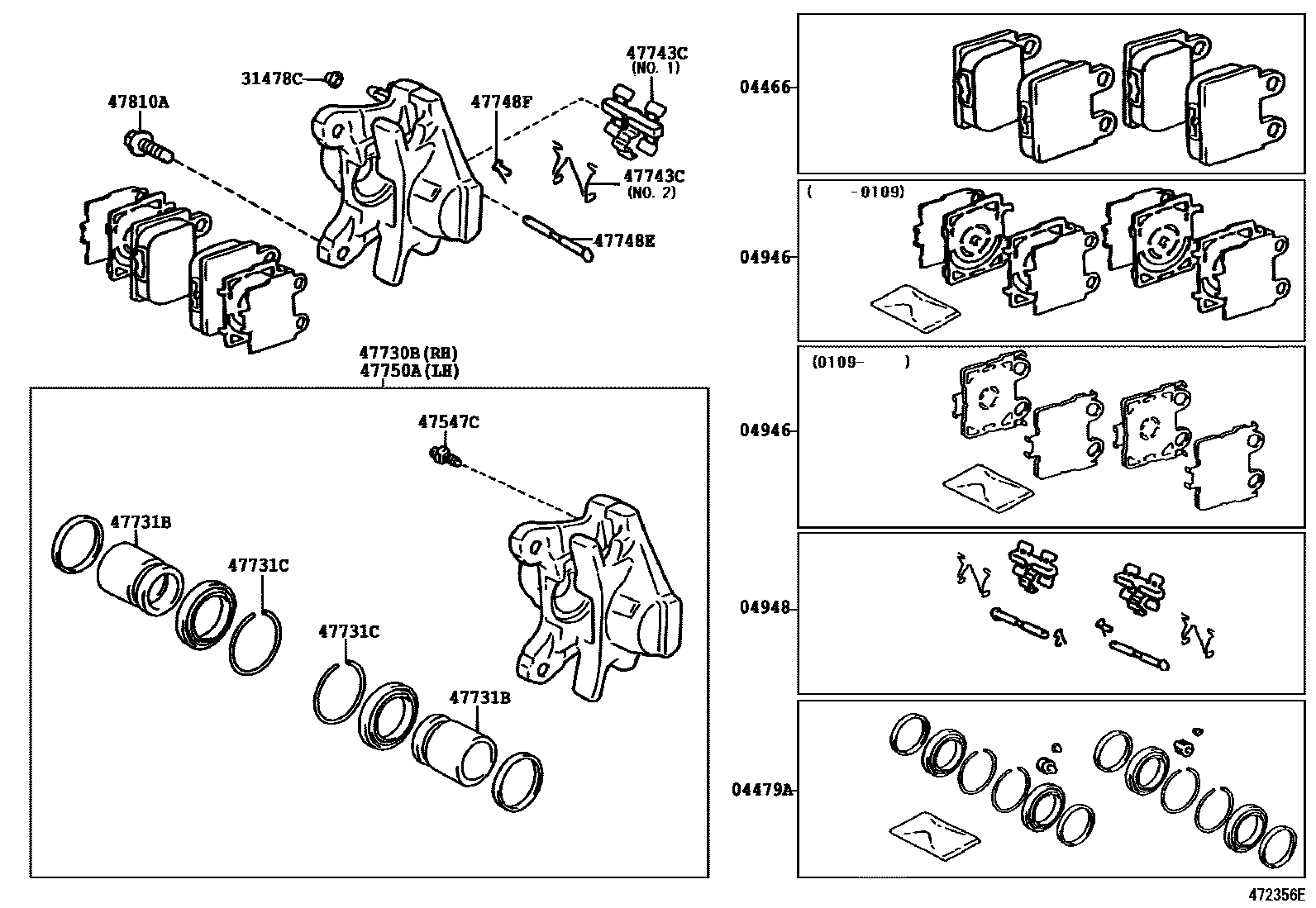

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30161iUZZ40..5FC200104-200208

main04466-30170iUZZ40200208-201007

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30221iUZZ40200104-200508

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30071iUZZ40..5FC200104-200109

main04946-53010iUZZ40200109-200508

04948FITTING KIT, DISC BRAKE, REAR

main04948-30080iUZZ40200104-200508

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iUZZ40200104-200508

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iUZZ40200104-200508

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30410iUZZ40200104-200508

47731BPISTON, REAR DISC BRAKE

main47731-30100iUZZ40200104-200508

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iUZZ40200104-200508

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30030iUZZ40200104-200508

main47743-30050iUZZ40200104-200508

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-30011iUZZ40200104-200508

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12028iUZZ40200104-200508

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30410iUZZ40200104-200508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iUZZ40200104-200508

14 parts on this diagram · 1 diagram in section
