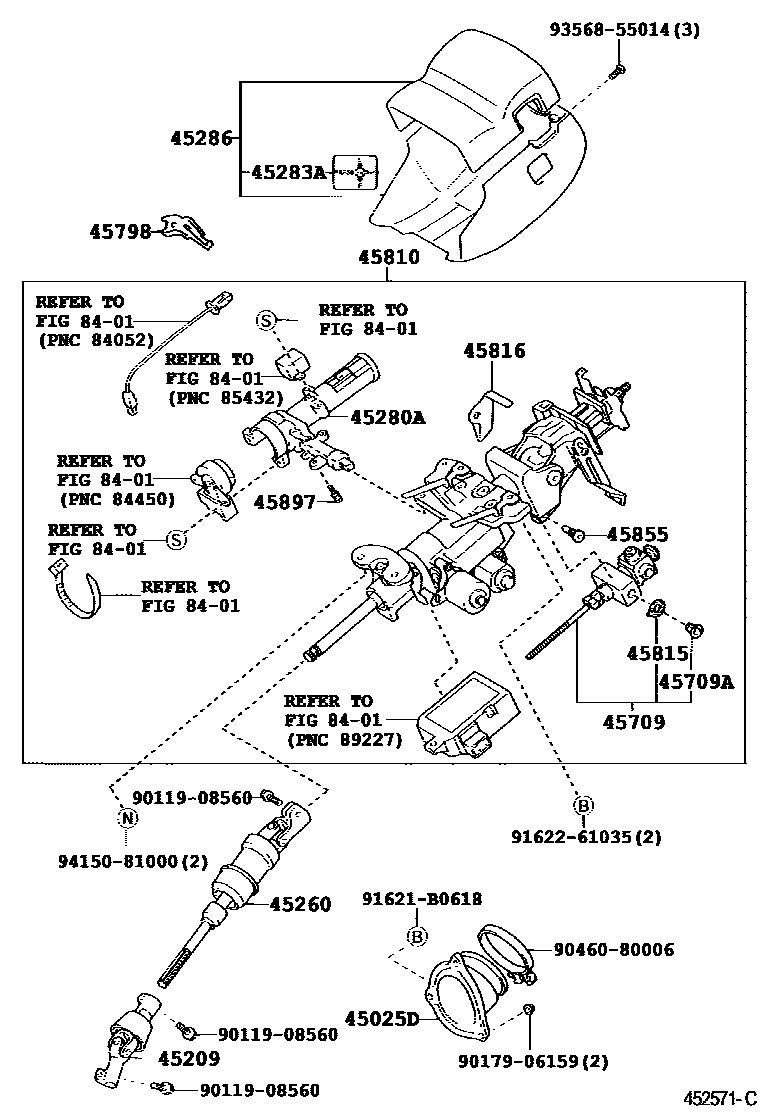

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
BLACK,TRIM0#,2#,3#
DK.BROWN,TRIM4#
45709SLIDER SUB-ASSY, TILT STEERING
45709ABUSH(FOR TILT STEERING SLIDER)
45798CLAMP, STEERING INTERMEDIATE SHAFT, RH
45810GEAR ASSY, TILT STEERING, W/MOTOR
45815SHIM, TILT STEERING SUPPORT
45816BRACKET, WIRE HARNESS
45855BOLT, TILT STEERING, NO.1
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9017906159
main90179-06159
9046080006
main90460-80006
91621B0618
main91621-B0618
9162261035
main91622-61035
9356855014
main93568-55014
9415081000
main94150-81000
22 parts on this diagram · 1 diagram in section
