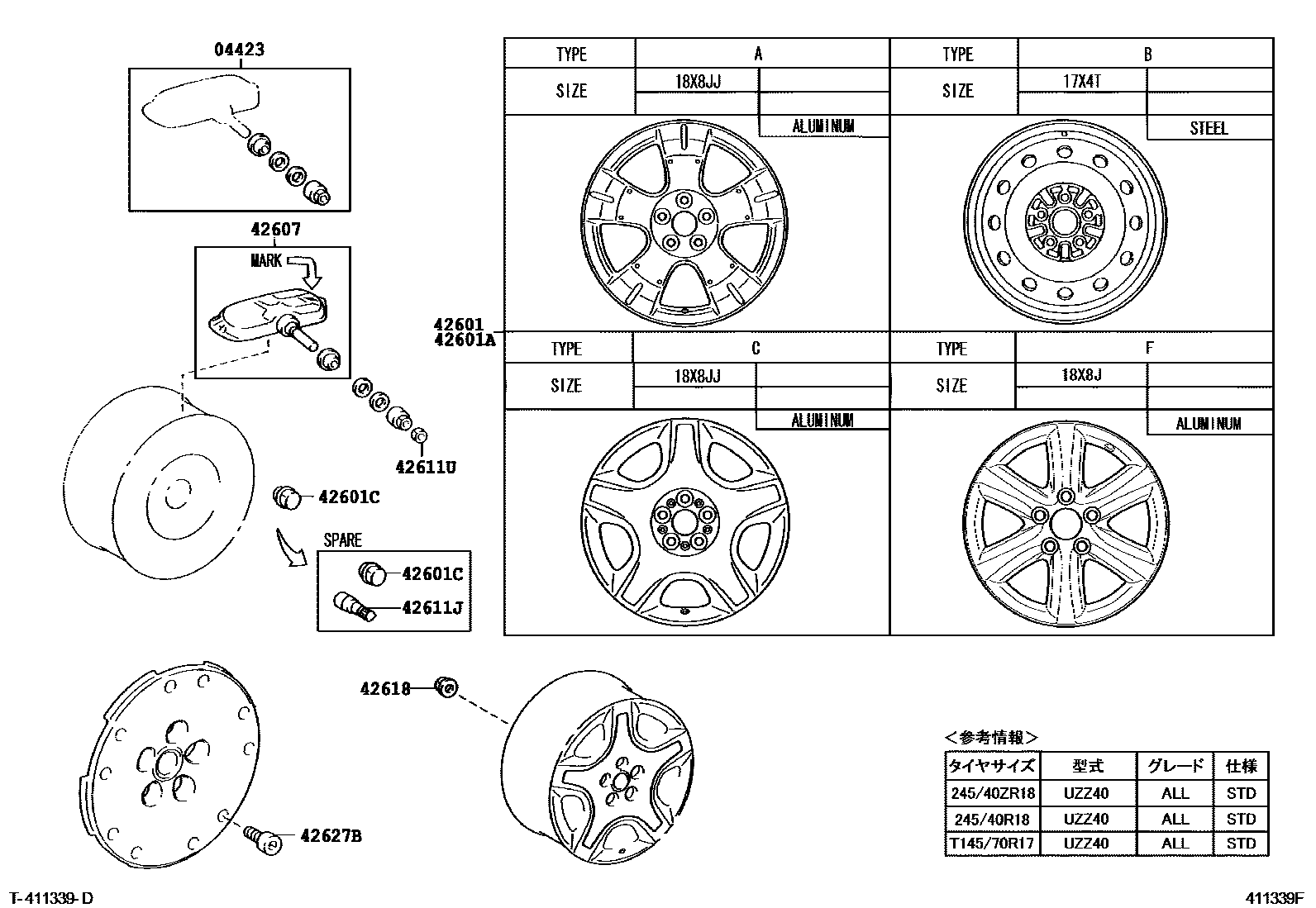

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-24010iUZZ40200104-200306

sub04423-24030

main04423-24030iUZZ40200306-200608

main04423-33030iUZZ40200608-201007

sub04423-33060

42601WHEEL, DISC

main42611-24420iUZZ40200104-200410

sub42611-24470

main42611-24450iUZZ40200208-200410

sub42611-24480

main42611-24470iUZZ40200411-200508

sub42611-24500

main42611-24480iUZZ40200411-200508

main42611-24490iUZZ40200508-200908

main42611-24500iUZZ40200508-200908

sub42611-24530

main4261A-24020iUZZ40200908

sub4261A-24021

main4261A-24040iUZZ40200908

sub4261A-24041

42601AWHEEL, DISC (FOR SPARE)

main42611-50090iUZZ40200104-200508

sub42611-50091

42601CNUT, HUB (FOR AXLE)

main90942-01033iUZZ40200908

main90942-01058iUZZ40200104-200908

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-24050iUZZ40200104-200608

sub42607-24011

main42607-24060iUZZ40200104-200608

sub42607-24021

main42607-24070iUZZ40200104-200608

sub42607-24031

main42607-24080iUZZ40200104-200608

sub42607-24041

main42607-30050iUZZ40200608

sub42607-33022

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iUZZ40200104-200508

42611UCAP, TIRE VALVE

main90942-05037iUZZ40200104-200508

42618RETAINER, WHEEL CAP

main42618-24010iUZZ40200508-200908

42627BBOLT, WHEEL CAP SET

main42627-24010iUZZ40200104-200908

9 parts on this diagram · 3 diagrams in section
