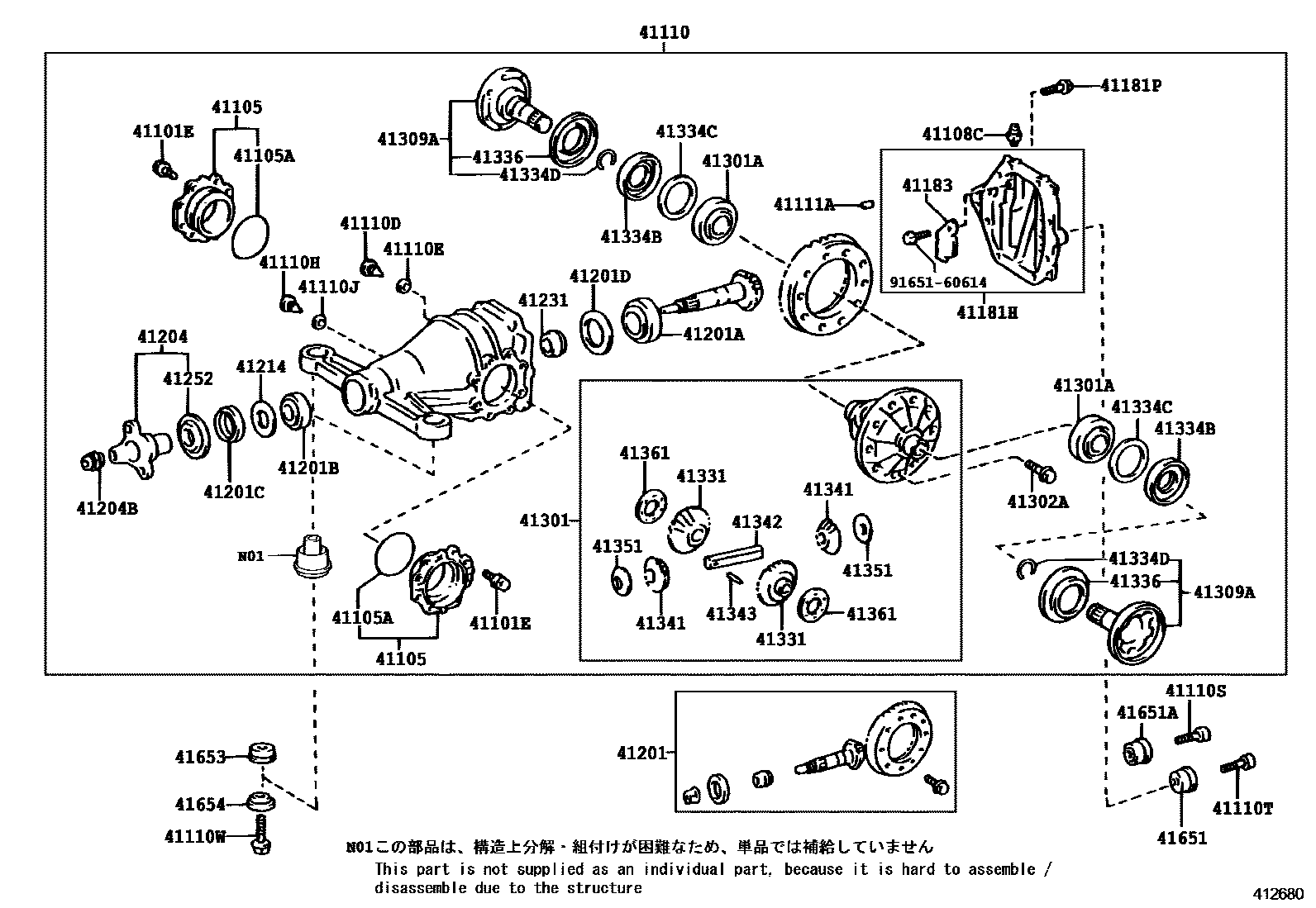

REAR AXLE HOUSING & DIFFERENTIAL
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41105RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER
41105ARING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110WBOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET)
41111CARRIER, REAR DIFFERENTIAL
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
sub90201-70002
sub90201-70004
sub90201-70006
sub90201-70008
sub90201-70010
sub90201-70012
sub90201-70014
sub90201-70016
sub90201-70018
sub90201-70020
sub90201-70022
sub90201-70024
sub90201-70026
sub90201-70028
sub90201-70030
sub90201-70032
sub90201-70034
sub90201-70036
sub90201-70038
sub90201-70040
sub90201-70042
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41331GEAR, REAR DIFFERENTIAL SIDE
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
NO.2,T=3.66
NO.2,T=3.68
NO.2,T=3.70
NO.2,T=3.72
NO.2,T=3.74
NO.2,T=3.76
NO.2,T=3.78
NO.2,T=3.82
NO.2,T=3.84
NO.2,T=3.86
NO.2,T=3.88
NO.2,T=3.90
NO.2,T=3.92
NO.2,T=3.94
NO.2,T=3.96
NO.2,T=3.98
NO.2,T=4.00
NO.2,T=4.02
NO.2,T=4.04
NO.2,T=4.06
NO.2,T=4.08
NO.2,T=4.10
NO.2,T=4.12
NO.2,T=4.14
NO.2,T=4.16
NO.2,T=4.18
NO.2,T=4.20
NO.2,T=4.22
NO.2,T=4.24
NO.2,T=4.26
NO.2,T=4.28
NO.2,T=4.30
NO.2,T=4.32
NO.2,T=4.34
NO.2,T=4.36
NO.2,T=4.38
NO.2,T=4.40
NO.2,T=4.42
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
9165160614
main91651-60614
46 parts on this diagram · 3 diagrams in section
