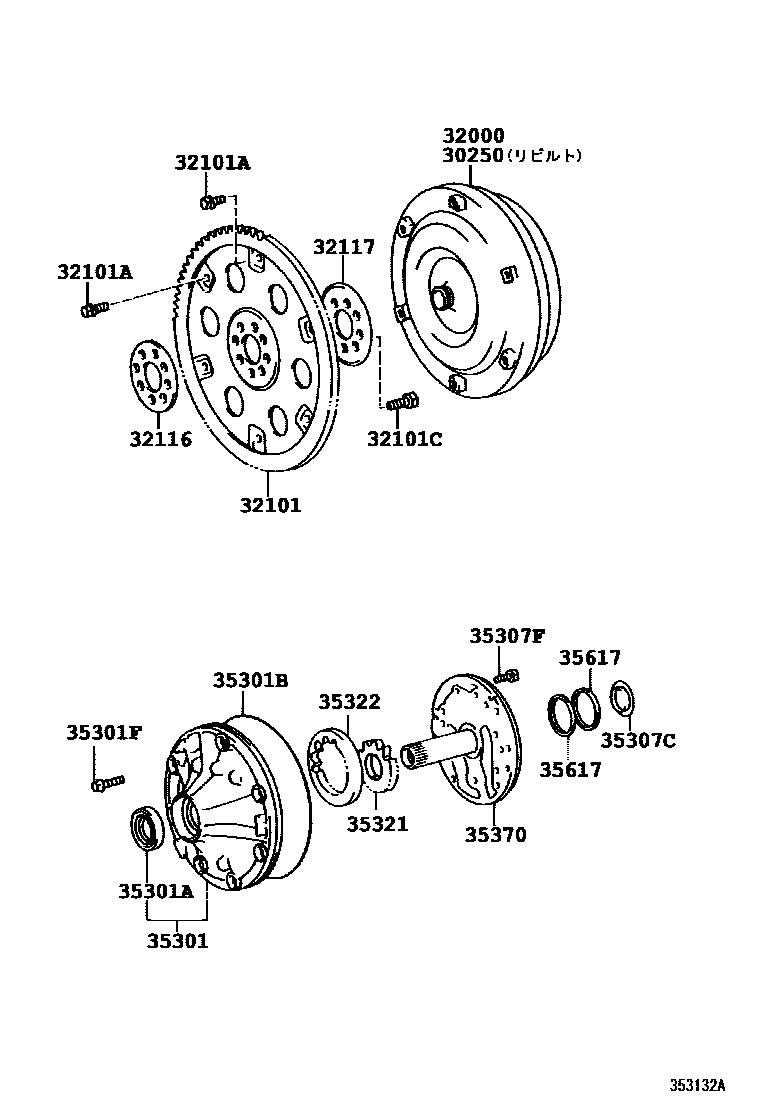

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A650E 0002 1A761E

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-50030iUZZ40200104-200508

main30250-50040iUZZ40200508

32000CONVERTER ASSY, TORQUE

main32000-50030iUZZ40200104-200508

main32000-50040iUZZ40200508

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50010iUZZ40200104-200508

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iUZZ40200104-200508

main90105-09006iUZZ40200104-200508

main90105-09006iUZZ40200508

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90910-02129iUZZ40200104-200508

main90910-02129iUZZ40200508

main90910-A2002iUZZ40200508

32116SPACER, DRIVE PLATE, FRONT

main32116-50010iUZZ40200104-200508

32117SPACER, DRIVE PLATE, REAR

main32117-50010iUZZ40200104-200508

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-50020iUZZ40200104-200508

main35301-60030iUZZ40200508

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iUZZ40..5FC200104-200210

sub90311-38020

main90311-38083iUZZ40200508

main90311-38087iUZZ40200210-200508

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iUZZ40200104-200508

main90301-99139iUZZ40200508

main90301-99148iUZZ40200508

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iUZZ40200104-200508

main90105-08451iUZZ40200610

main91511-K0840iUZZ40200508-200610

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iUZZ40200104-200508

35307FBOLT (FOR STATOR SHAFT)

main90105-06126iUZZ40200104-200508

main90148-60079iUZZ40200508

35321GEAR, FRONT OIL PUMP DRIVE

main35321-30030iUZZ40200104-200508

main35321-30040iUZZ40200104-200508

main35321-30050iUZZ40200104-200508

main35321-30060iUZZ40200104-200508

main35321-30070iUZZ40200104-200508

main35321-50010iUZZ40200508

main35321-50020iUZZ40200508

main35321-50030iUZZ40200508

main35321-50040iUZZ40200508

main35321-50050iUZZ40200508

main35321-50060iUZZ40200508

main35321-50070iUZZ40200508

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-30020iUZZ40200104-200508

main35322-30030iUZZ40200104-200508

main35322-30040iUZZ40200104-200508

main35322-30050iUZZ40200104-200508

main35322-30060iUZZ40200104-200508

main35322-50010iUZZ40200508

main35322-50020iUZZ40200508

main35322-50030iUZZ40200508

main35322-50040iUZZ40200508

main35322-50050iUZZ40200508

main35322-50060iUZZ40200508

main35322-50070iUZZ40200508

35370SHAFT ASSY, STATOR

main35370-50020iUZZ40200104-200508

main35370-50030iUZZ40200508

35617RING, CLUTCH DRUM OIL SEAL

main35617-50010iUZZ40200104-200508

main35617-50030iUZZ40200709

main35617-60020iUZZ40200508-200708

17 parts on this diagram · 2 diagrams in section
