STANDARD TOOL

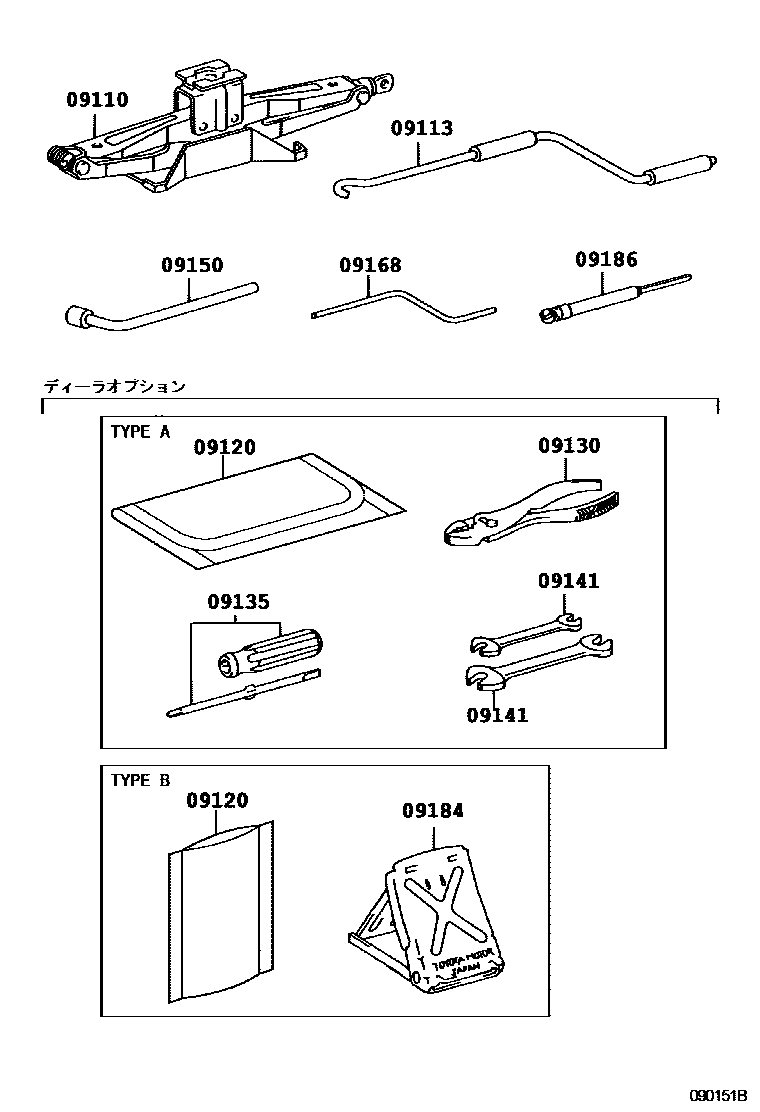

Parts diagram
09110JACK ASSY
main09111-50050i200104-200112
sub09111-50051
main09111-50051i200112-200508
sub09111-76011
09113HANDLE, JACK
main09113-14030i200104-200508
09120BAG, TOOL
main09120-24010i200104-200508
main09120-24020i200508
main09120-28040i200104-200508
09130PLIERS
main09130-50030i200508-200908
main09130-50040i200908
main99913-11500i200104-200508
09135DRIVER, SCREW
main09135-50040i200508-200908
main99915-10700i200104-200508
09141SPANNER
main09141-50050i200508-200908
main09141-50060i200508-200908
main09141-60010i200908
main09141-60020i200908
main99914-10810i200104-200508
main99914-11214i200104-200508
09150WRENCH, HUB NUT BOX
main09150-26010i200104-200508
main09150-50010i200508-200907
sub09150-53010
main09150-53010i200908
sub09150-76020
09168WRENCH, ROOF PANEL
main09168-24010i200104-200508
09184STOPPER, WHEEL
main09184-00010i200104-200508
09186GAGE, TIRE
main09186-24010i200104-200508

10 parts on this diagram · 2 diagrams in section
