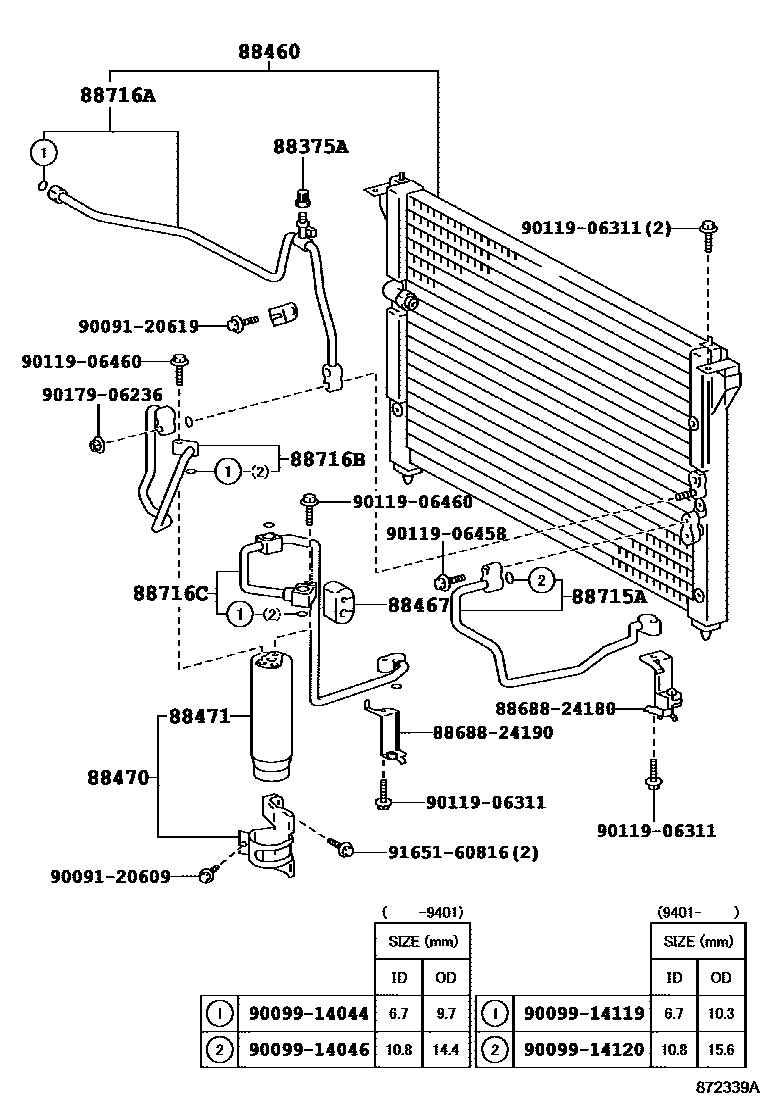

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-24010iJZZ30,UZZ3#199105-199401

main88375-30280iJZZ3#,UZZ3#199401

88460CONDENSER ASSY, COOLER

main88460-24070iJZZ30,UZZ3#199105-199401

main88460-24080iJZZ3#,UZZ3#199401

88467CUSHION, COOLER CONDENSER, NO.1

main88467-24040iJZZ30,UZZ3#199105-199401

88470RECEIVER & DRYER ASSY, COOLER

main88470-24010iJZZ30,UZZ3#199105-199401

main88470-24020iUZZ32199401-199608

main88470-24030iJZZ3#,UZZ31199401

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iJZZ3#,UZZ3#199401

main88471-50010iJZZ30,UZZ3#199105-199401

sub88471-16040

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-24030iJZZ30,UZZ3#199105-199401

main88715-24040iJZZ3#,UZZ3#199401-199608

sub88715-24050

main88715-24050iJZZ3#,UZZ31199608

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-24210iJZZ30,UZZ3#199105-199401

main88716-24240iJZZ3#,UZZ3#199401

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-24190iJZZ30,UZZ3#199105-199401

main88716-24220iJZZ3#,UZZ3#199401-199608

main88716-24250iJZZ3#,UZZ31199608

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-24200iJZZ30,UZZ3#199105-199401

main88716-24230iJZZ3#,UZZ3#199401

8868824180BRACKET, COOLER DIAPHRAGM

main88688-24180

8868824190BRACKET, COOLER DIAPHRAGM

main88688-24190

9009120609

main90091-20609

9009120619

main90091-20619

9009914044

main90099-14044

9009914046

main90099-14046

9009914119

main90099-14119

9009914120

main90099-14120

9011906311

main90119-06311

9011906458

main90119-06458

9011906460

main90119-06460

9017906236

main90179-06236

9165160816

main91651-60816

22 parts on this diagram · 6 diagrams in section
