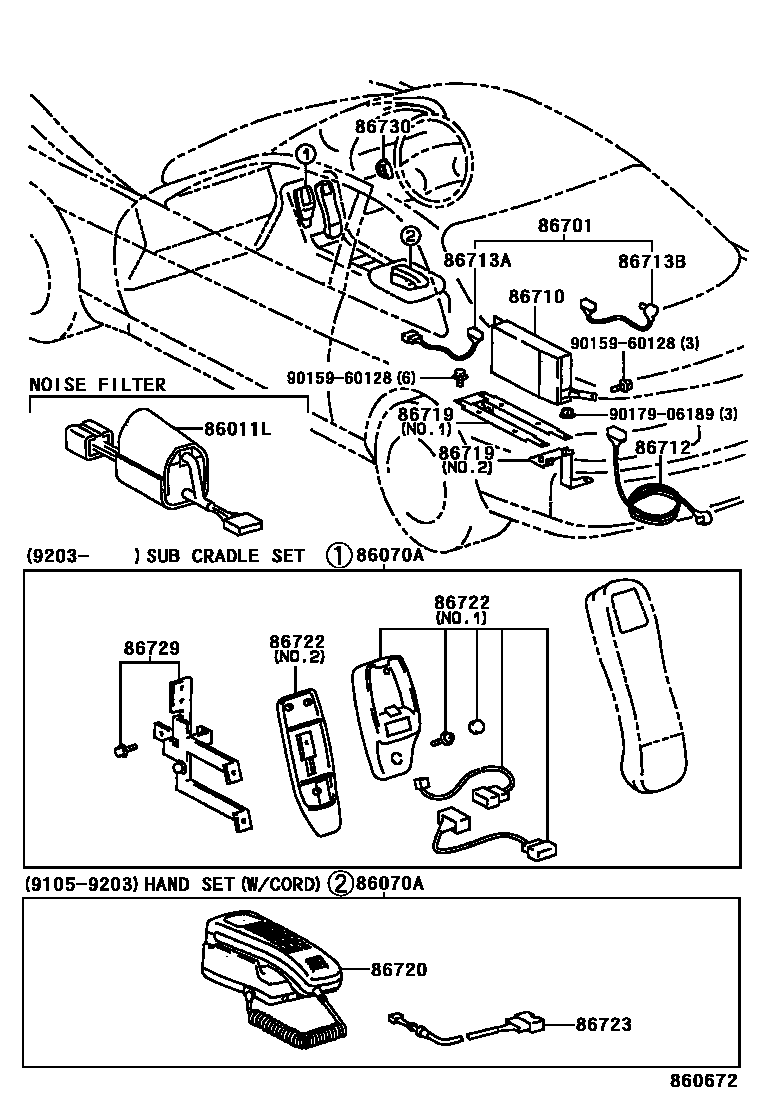

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1 0004 1

86011LFILTER, NOISE

main90980-05203iUZZ31,32199205-199304

sub90980-05280

main90980-05280iUZZ31,32199304-199401

86070AMOBILEPHONE & ACCESSORY ASSY (HANDSET)

main86070-24020iUZZ31,32199203-199401

main86070-30030iUZZ31,32199105-199203

sub86070-30160

sub86723-30030

main86070-30150iUZZ31,32199203-199401

main86070-30160iUZZ31,32199203-199401

86701WIRE SET, TRANSCEIVER COVER

main86701-24030iUZZ31,32199205-199401

86710COMPUTER ASSY, TELEPHONE

main86710-24030iUZZ31,32199105-199401

main86710-24040iUZZ31,32199105-199401

86712WIRE, TELEPHONE

main86712-24050iUZZ31,32199105-199401

main86712-50040iUZZ31,32199203-199401

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-24010iUZZ31,32199205-199401

86713BWIRE, TELEPHONE COMPUTER, (TO FRAM W/H)

main86713-24020iUZZ31,32199205-199401

86719BRACKET, TELEPHONE

main86719-24010iUZZ31,32199105-199311

sub86719-24011

main86719-24011iUZZ31,32199311-199401

main86719-24020iUZZ31,32199105-199401

86720MOBILEPHONE ASSY

main86720-30051iUZZ31,32199105-199203

sub86720-30080

main86720-30060iUZZ31,32199203-199401

main86720-30080iUZZ31,32199203-199401

86722CRADLE, MOBILEPHONE

main86722-24010iUZZ31,32199203-199401

main86722-30010iUZZ31,32199203-199401

86723WIRE, MOBILEPHONE

main86723-30030iUZZ31,32199105-199203

main86723-30050iUZZ31,32199203-199205

main86723-30060iUZZ31,32199203-199401

main86723-30080iUZZ31,32199205-199401

main86723-30130iJZZ3#,UZZ31199608

main86723-30140iJZZ3#,UZZ31199608

main86723-30150iJZZ3#,UZZ31199608

main86723-50030iUZZ31,32199203-199401

86729BRACKET, MOBILEPHONE

main86729-24040iUZZ31,32199203-199401

86730MICROPHONE ASSY, TELEPHONE

main86730-24030iUZZ31,32199105-199401

main86730-30080iUZZ31,32199203-199401

main86730-30110iJZZ3#,UZZ31199608

main86730-30120iJZZ3#,UZZ31199608

9015960128

main90159-60128

9017906189

main90179-06189

15 parts on this diagram · 4 diagrams in section
