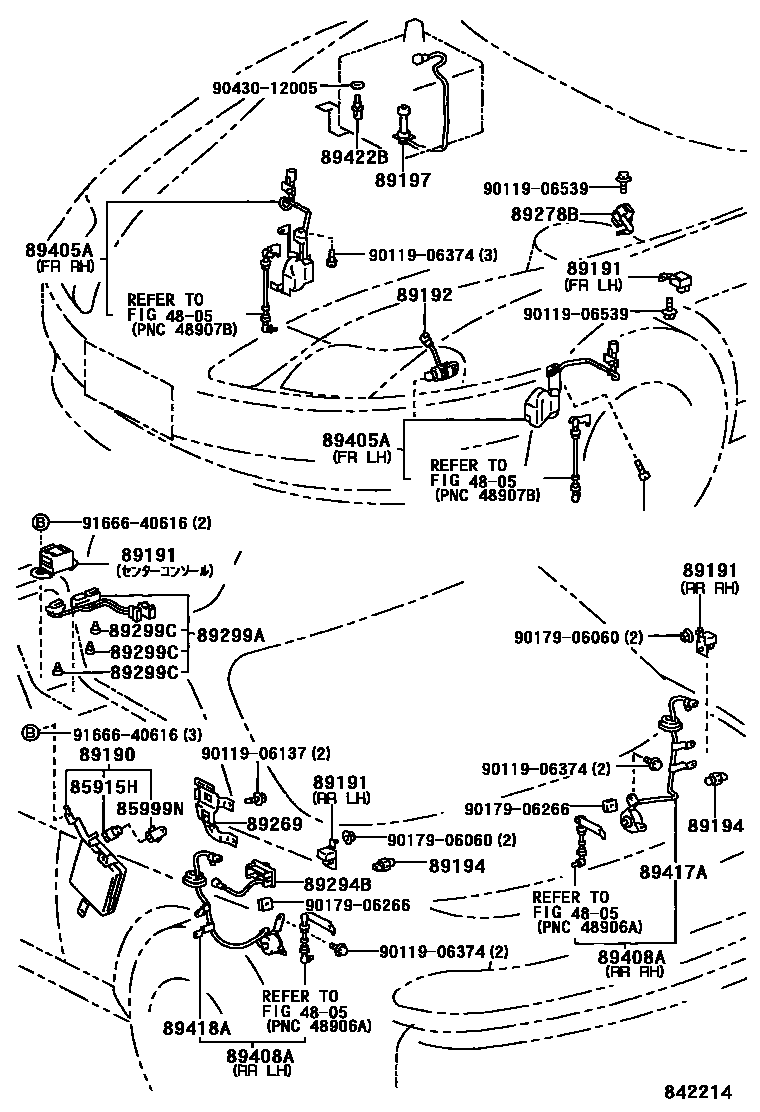

ACTIVE CONTROL SUSPENSION (ELECTRICAL PARTS)
4805
85915HRELAY, HYDROPNEUMATIC SUSPENSION
85999NBRACKET, RELAY
89191SENSOR, ACCELERATION
89194SENSOR, PRESSURE ABSORBER, NO.1
89197SENSOR, OIL LEVEL
89269BRACKET, SUSPENSION CONTROL
89278BRELAY, HEIGHT CONTROL
89294BSWITCH, SUSPENSION CONTROL INHIBITION
89299ASWITCH, SUSPENSION CONTROL
89299CBULB (FOR SUSPENSION CONTROL SWITCH)
89405ASENSOR SUB-ASSY, HEIGHT CONTROL, FRONT
89422BSENSOR, WATER TEMPERATURE
9011906137
main90119-06137
9011906374
main90119-06374
9011906539
main90119-06539
9017906060
main90179-06060
9017906266
main90179-06266
9043012005
main90430-12005
9166640616
main91666-40616
25 parts on this diagram · 2 diagrams in section
