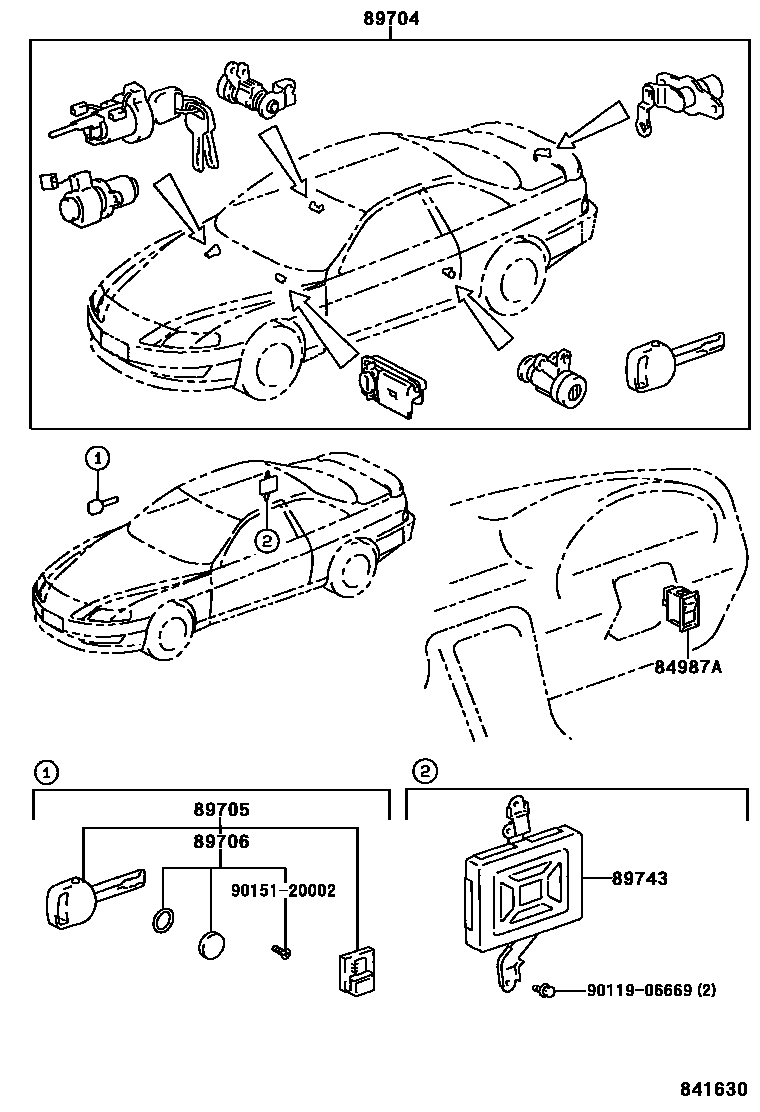

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-24030-A2iUZZ3#199105-199401

IVORY,TRIM0#

main84987-24030-B0iUZZ3#199105-199401

MIDIUM GRAY,TRIM1#

main84987-24030-G0iUZZ3#199105-199401

SPRUCE,TRIM6#

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-24051iUZZ3#199105-199401

sub89708-24010

main89704-24070iJZZ30,UZZ3#199401-199505

sub89708-24030

89705TRANSMITTER, DOOR CONTROL

main89705-24020iUZZ3#199105-199401

89706BATTERY SET, TRANSMITTER

main89706-50010iUZZ3#199105-199401

sub89745-48020

sub90151-20002

sub90301-14005

89743RECEIVER, DOOR CONTROL

main89743-24020iUZZ3#199105-199401

9011906669

main90119-06669

9015120002

main90151-20002

7 parts on this diagram · 4 diagrams in section
