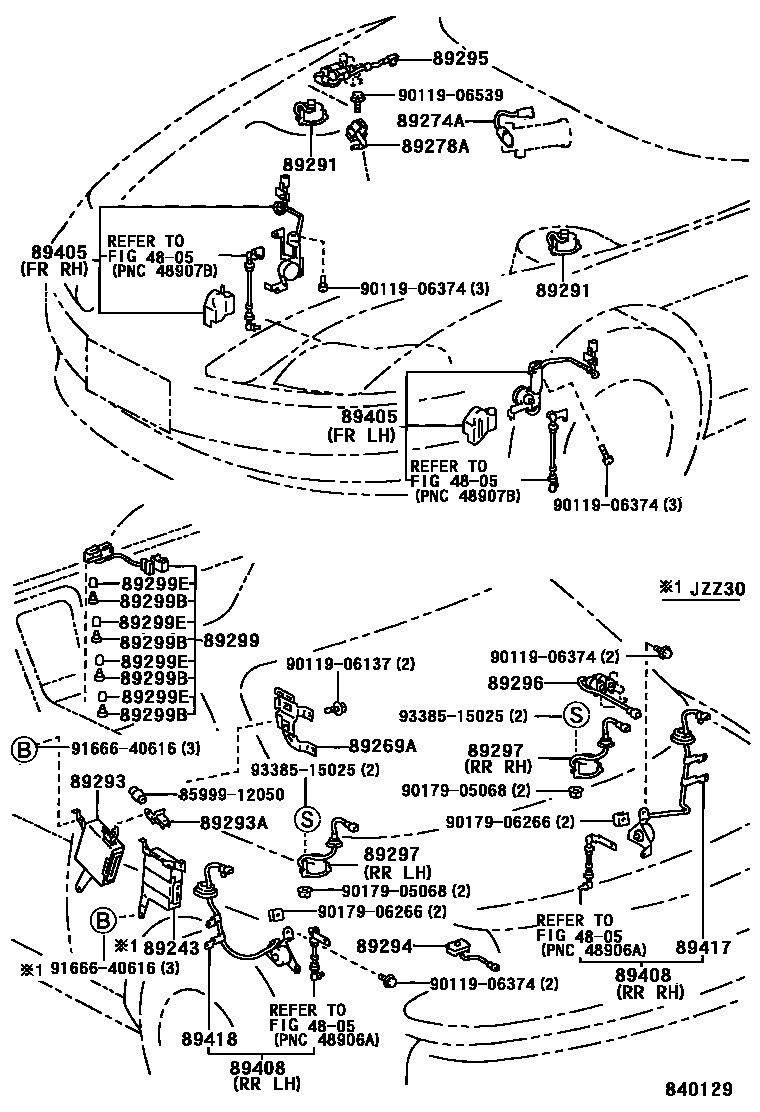

ELECTRONIC MODULATED SUSPENSION
4805
89243COMPUTER, ABSORBER CONTROL
89269ABRACKET, SUSPENSION CONTROL
89274ASOLENOID, AIR VALVE
89278ARELAY, HEIGHT CONTROL
89291ACTUATOR, SUSPENSION CONTROL, FRONT
89293COMPUTER, SUSPENSION CONTROL
89293ARELAY, SUSPENSION CONTROL
89294SWITCH, SUSPENSION CONTROL INHIBITION
89295SOLENOID, SUSPENSION CONTROL, FRONT
89296SOLENOID, SUSPENSION CONTROL, REAR
89297ACTUATOR, SUSPENSION CONTROL, REAR
89299BBULB(FOR SUSPENSION CONTROL SWITCH)
89299ECAP, SUSPENSION CONTROL SWITCH BULB
89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT
89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89417SENSOR, HEIGHT CONTROL, REAR RH
89418SENSOR, HEIGHT CONTROL, REAR
8599912050BRACKET, COMBINATION RELAY
main85999-12050
9011906137
main90119-06137
9011906374
main90119-06374
9011906539
main90119-06539
9017905068
main90179-05068
9017906266
main90179-06266
9166640616
main91666-40616
9338515025
main93385-15025
27 parts on this diagram · 3 diagrams in section
