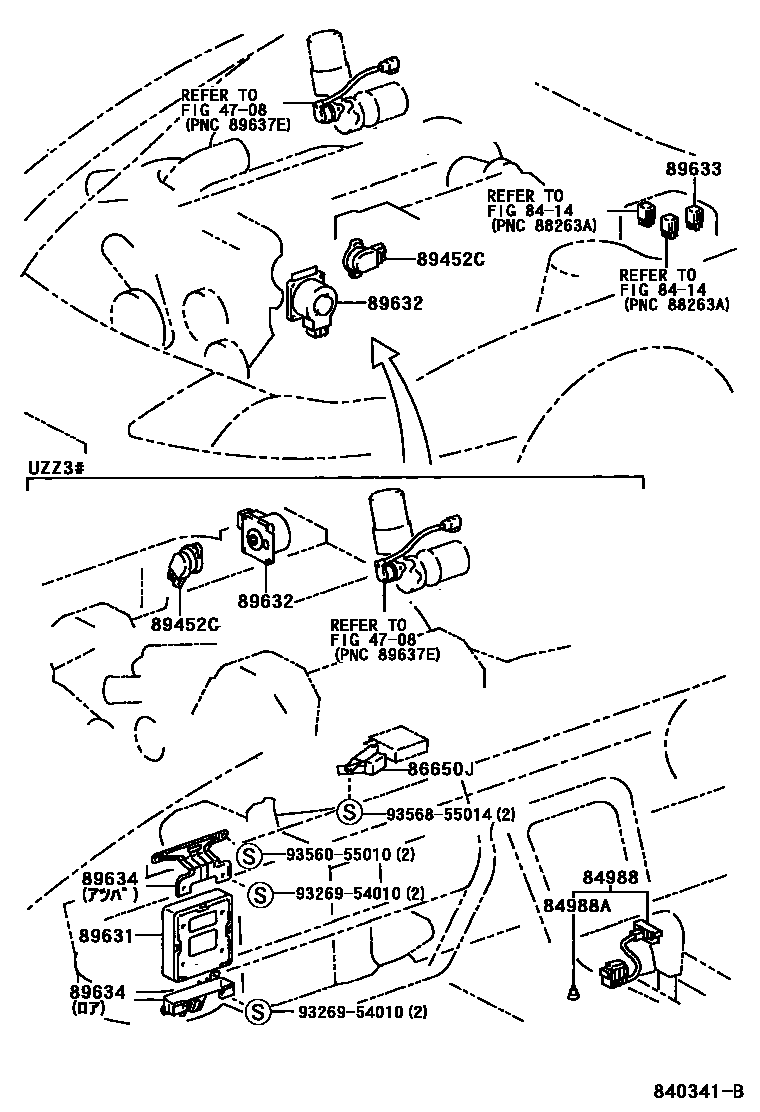

TRACTION CONTROL

0001 1 0002 1

4708

8414

84988SWITCH, TRACTION CONTROL

main84988-24010iJZZ30,UZZ30..ATM199105-199608

84988ABULB, TRACTION CONTROL SWITCH

main84999-10310iJZZ30,UZZ30..ATM199105-199608

86650JBUZZER ASSY

main86650-24010iJZZ30..ATM..GTT199105-199608

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZZ30..ATM199105-199608

main89452-50010iUZZ3#199105-199210

sub89452-50020

main89452-50020iUZZ3#199210-199709

89631COMPUTER, TRACTION CONTROL

main89631-24010iJZZ30,UZZ3#..ATM199105-199401

sub89631-30080

main89631-24020iUZZ31199608-199709

main89631-30080iJZZ30,UZZ3#..ATM199401-199608

89632MOTOR, TRACTION THROTTLE VALVE

main89632-22030iJZZ30..ATM199105-199608

main89632-50010iUZZ3#199105-199210

sub89632-50020

main89632-50020iUZZ3#199210-199709

89633RELAY, TRACTION CONTROL

main89633-24010iUZZ31199105-199709

89634BRACKET, TRACTION CONTROL COMPUTER

main88268-24080iUZZ31199608-199709

main89634-24010iJZZ30,UZZ3#..ATM199105-199608

main89634-24020iJZZ30,UZZ3#..ATM199105-199608

main89634-24070iUZZ31199608-199709

9326954010

main93269-54010

9356055010

main93560-55010

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
