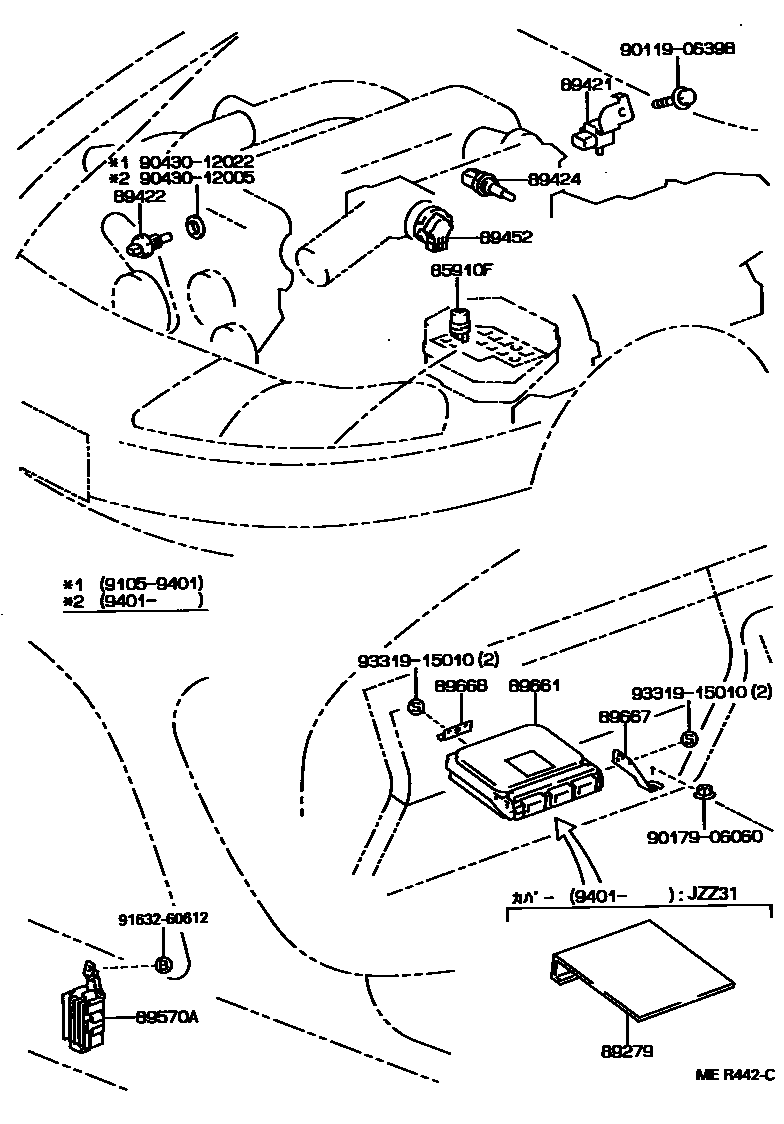

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1 0005 1

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iJZZ30,UZZ3#199105-199401

main90987-02009iJZZ3#,UZZ3#199401-199405

89279COVER, ENGINE CONTROL COMPUTER

main89279-24020iJZZ31,UZZ3#199401-199709

main89279-24030iJZZ30199608

main89279-24040iJZZ31199709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-24040iJZZ30199105-199608

main89420-24060iJZZ31199401-199709

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZZ3#,UZZ3#199105-199608

main89422-35010iJZZ30199608

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iJZZ31199401-199709

main89424-24010iJZZ30199105-199608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12050iUZZ3#199105-199210

sub89452-33010

main89452-22080iJZZ30199105-199608

main89452-22090iJZZ31,UZZ3#199408-199709

main89452-24020iJZZ30199608

main89452-30150iJZZ31199709

main89452-33010iJZZ31,UZZ3#199210-199408

sub89452-22090

sub89452-32060

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-24010iJZZ3#,UZZ3#199105

89661COMPUTER, ENGINE CONTROL

main89661-24220iUZZ30,31199105-199401

main89661-24250iUZZ32199105-199205

main89661-24251iUZZ32199205-199401

main89661-24260iJZZ30..ATM199401-199608

main89661-24270iJZZ30..MTM199401-199608

main89661-24280iJZZ30..ATM199105-199208

main89661-24281iJZZ30..ATM199208-199401

main89661-24290iJZZ30..MTM199105-199208

main89661-24291iJZZ30..MTM199208-199401

main89661-24340iJZZ31199401-199709

main89661-24390iUZZ31199401-199505

main89661-24400iUZZ32199401-199505

main89661-24430iUZZ31199505-199709

main89661-24440iUZZ32199505-199608

main89661-24490iJZZ30..ATM199608-199908

main89661-24500iJZZ30..MTM199608-200012

main89661-24540iJZZ31199709-199810

main89661-24541iJZZ31199810-200011

sub89661-24542

main89661-24542iJZZ31200011-200012

main89661-24590iJZZ30..ATM199908-200012

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-14080iJZZ31199709

main89667-24030iJZZ30,UZZ3#199105-199608

main89667-24050iJZZ31,UZZ3#199401-199709

main89667-24060iJZZ30199608

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-14040iJZZ31199709

main89668-14060iJZZ31199709

main89668-24060iJZZ30199105-199608

main89668-24080iJZZ31,UZZ3#199401-199709

main89668-24090iJZZ30199608

9011906398

main90119-06398

9017906060

main90179-06060

9043012005

main90430-12005

9043012022

main90430-12022

9163260612

main91632-60612

9331915010

main93319-15010

16 parts on this diagram · 4 diagrams in section
