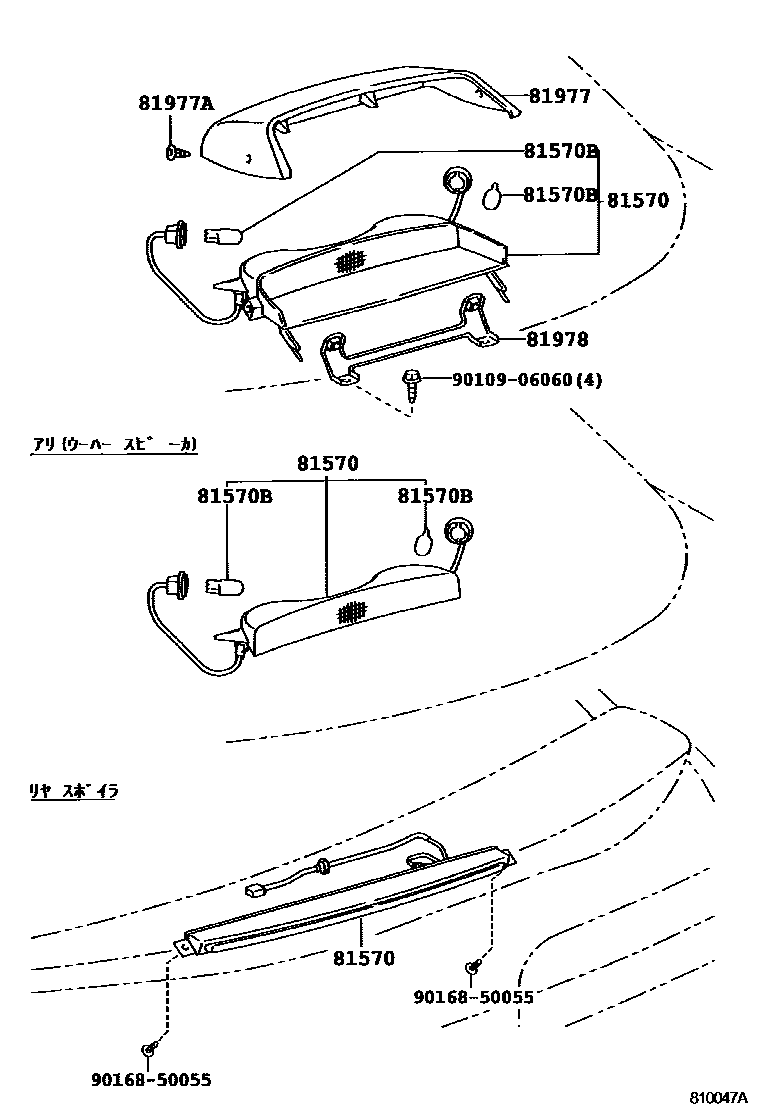

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-24020iJZZ3#,UZZ3#199105-199608

main81570-24030-03iJZZ30,UZZ30,31199105-199401

SHADOW GRAY,TRIM1#

main81570-24030-05iJZZ30,UZZ30,31199105-199401

GRAIGE,TRIM0#

main81570-24030-07iJZZ30,UZZ30,31199105-199401

DARK SPRUCE,TRIM6#

main81570-24030-C0iJZZ3#199401

BLACK,TRIM2#

main81570-24030-E0iJZZ3#199401-199808

OAK,TRIM0#

main81570-24030-E1iJZZ3#199808

SANDAL WOOD,TRIM0#

main81570-24030-G0iJZZ3#199401-199808

DARK SPRUCE,TRIM6#

main81570-24040iJZZ3#,UZZ3#199105

main81570-24050iJZZ3#,UZZ31199608

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039×2iJZZ3#,UZZ3#199105-199806

main90981-11059×2iJZZ3#199806

81977COVER, CENTER STOP LAMP

main81977-24010-03iJZZ30,UZZ30,31199105-199401

SHADOW GRAY,TRIM1#

main81977-24010-05iJZZ30,UZZ30,31199105-199401

GRAIGE,TRIM0#

main81977-24010-07iJZZ30,UZZ30,31199105-199401

DARK SPRUCE,TRIM6#

main81977-24010-C0iJZZ3#199401

BLACK,TRIM2#

main81977-24010-E0iJZZ3#199401-199808

OAK,TRIM0#

main81977-24010-E1iJZZ3#199808

SANDAL WOOD,TRIM0#

main81977-24010-G0iJZZ3#199401-199808

DARK SPRUCE,TRIM6#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07055-17×2iJZZ30,UZZ30,31199105-199208

DARK SPRUCE,TRIM6#

main90467-07055-35×2iJZZ30,UZZ30,31199105-199401

LIGHT GREIGE,TRIM0#

main90467-07055-B2×2iJZZ30,UZZ30,31199105-199401

SHADOW GRAY,TRIM1#

main90467-07055-C0×2iJZZ3#199401

BLACK,TRIM2#

main90467-07055-E3×2iJZZ3#199401

ROSEWOOD,TRIM0#

main90467-07055-G0×2iJZZ30,UZZ30,31199208-199401

SPRUCE,TRIM6#

81978BRACKET, STOP CENTER

main81978-24010iJZZ30,UZZ30,31199105-199401

9010906060

main90109-06060

9016850055

main90168-50055

7 parts on this diagram · 1 diagram in section
