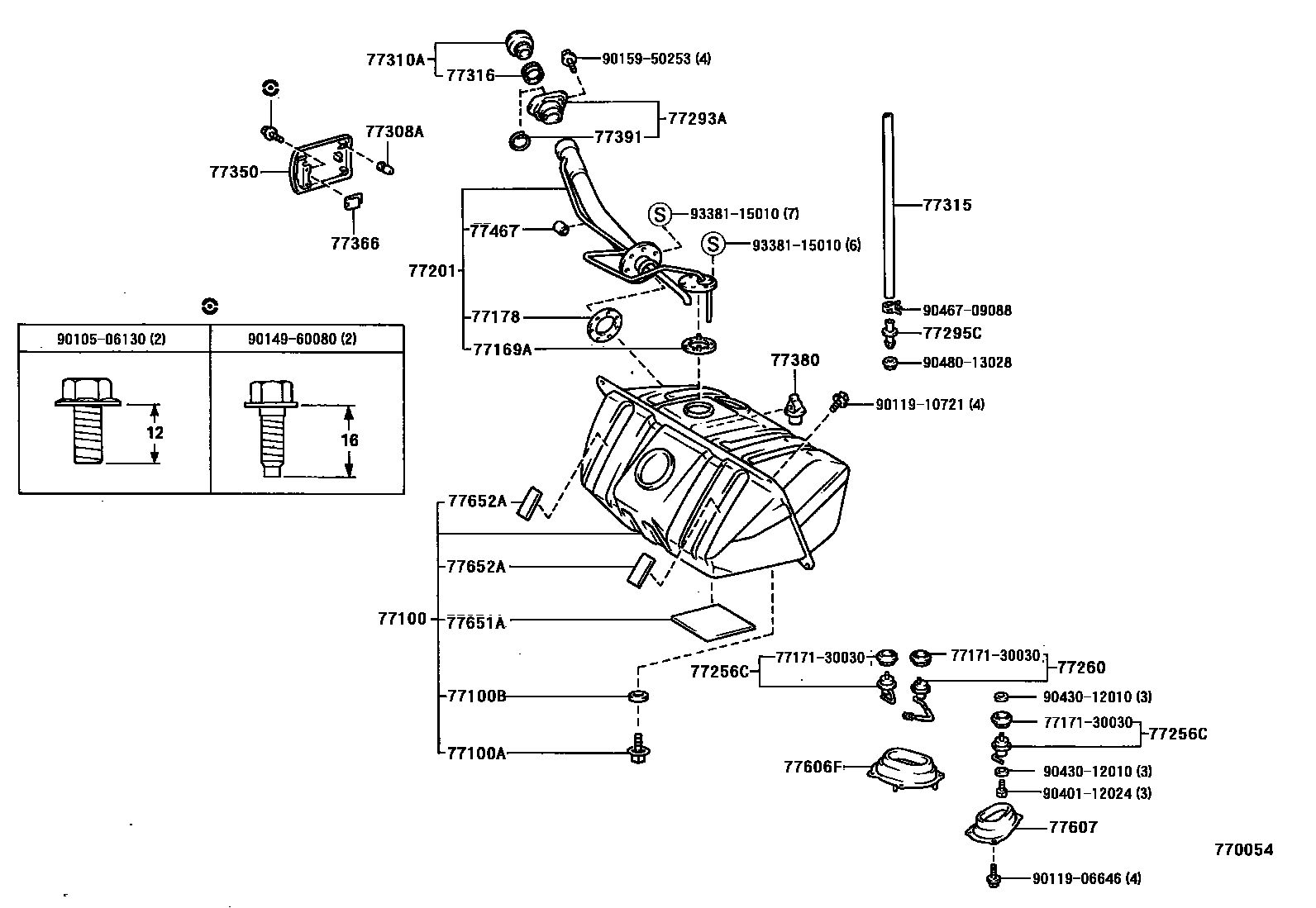

FUEL TANK & TUBE
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77295CGROMMET, FUEL TUBE
77308ACUSHION(FOR FUEL INLET BOX COVER)
77315HOSE, FUEL FILLER OPENING
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77467PROTECTOR, FUEL TUBE, NO.5
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
7717130030GASKET, FUEL TANK TUBE, NO.1
main77171-30030
9010506130
main90105-06130
9011906646
main90119-06646
9011910721
main90119-10721
9014960080
main90149-60080
9015950253
main90159-50253
9040112024
main90401-12024
9043012010
main90430-12010
9046709088
main90467-09088
9048013028
main90480-13028
9338115010
main93381-15010
34 parts on this diagram · 2 diagrams in section
