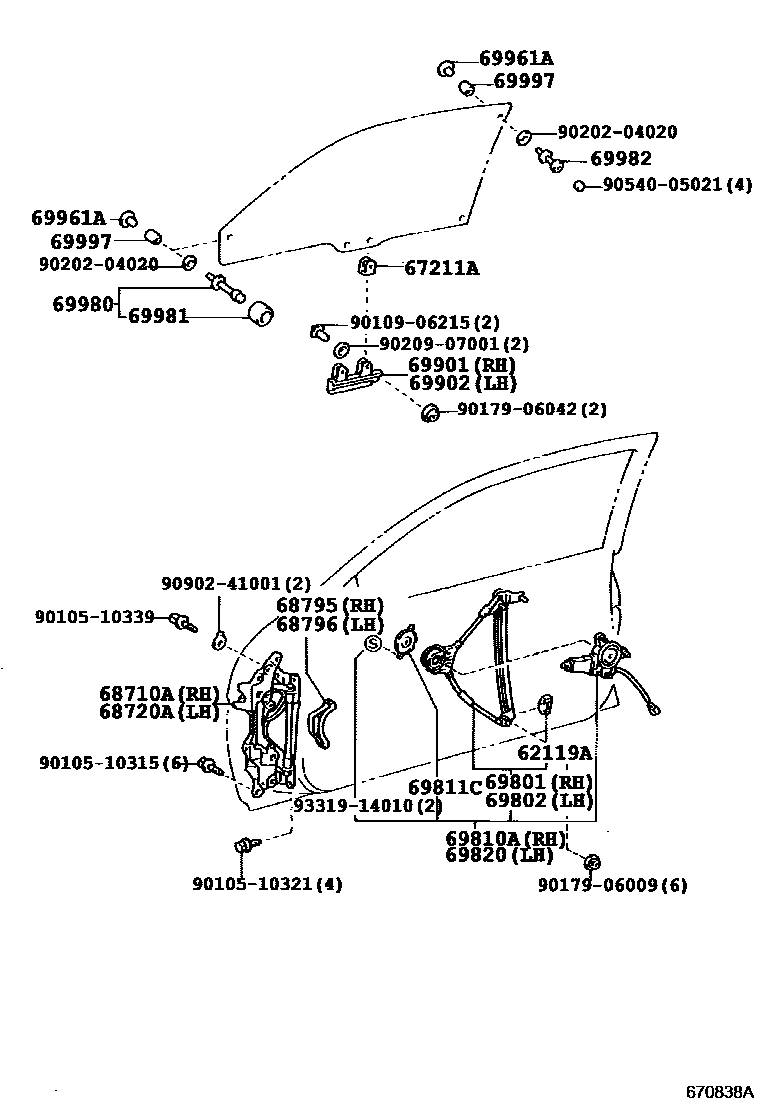

FRONT DOOR WINDOW REGULATOR & HINGE

62119ACUSHION, DOOR GLASS DOWN STOP

main68119-24010iJZZ3#,UZZ3#199105

main68119-24020iJZZ3#,UZZ3#199105

67211ASTOP, FRONT DOOR WINDOW, UPPER

main69915-24010×4iJZZ3#,UZZ3#199105

68710AHINGE ASSY, FRONT DOOR, RH

main68710-24030iJZZ30,UZZ3#199105-199308

main68710-24031iJZZ3#,UZZ3#199308

68720AHINGE ASSY, FRONT DOOR, LH

main68720-24030iJZZ30,UZZ3#199105-199308

main68720-24031iJZZ3#,UZZ3#199308

68795COVER, DOOR HINGE, NO.1 RH

main68795-24020iJZZ3#,UZZ3#199105

68796COVER, DOOR HINGE, NO.1 LH

main68796-24020iJZZ3#,UZZ3#199105

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-24030iJZZ30,UZZ3#199105-199307

sub69801-24033

main69801-24031iJZZ30,UZZ3#199307-199401

sub69801-24032

main69801-24040iJZZ3#,UZZ3#199401-199505

main69801-24041iJZZ3#,UZZ3#199505

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-24030iJZZ30,UZZ3#199105-199307

sub69802-24033

main69802-24031iJZZ30,UZZ3#199307-199401

sub69802-24032

main69802-24040iJZZ3#,UZZ3#199401-199505

main69802-24041iJZZ3#,UZZ3#199505

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-24040iJZZ30,UZZ3#199105-199307

main69810-24041iJZZ30,UZZ3#199307-199401

main69810-24050iJZZ3#,UZZ3#199401

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-24010iJZZ3#,UZZ3#199505

main69813-32030×2iJZZ3#,UZZ3#199105-199505

main69814-24010iJZZ3#,UZZ3#199505

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-24040iJZZ30,UZZ3#199105-199307

main69820-24041iJZZ30,UZZ3#199307-199401

main69820-24050iJZZ3#,UZZ3#199401

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-24020iJZZ3#,UZZ3#199105

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-24010iJZZ3#,UZZ3#199105

69961ARETAINER, FRONT DOOR GLASS

main69961-50020×6iJZZ30,UZZ3#199105-199401

69980ROLLER ASSY, FRONT DOOR GLASS GUIDE

main69980-24020×2iJZZ30,UZZ3#199105-199401

69981ROLLER, FRONT DOOR GLASS GUIDE

main69981-14020×2iJZZ30,UZZ3#199105-199401

69982ROLLER, FRONT DOOR GLASS GUIDE, NO.2

main69982-50020×4iJZZ30,UZZ3#199105-199401

69997SPACER, FRONT DOOR GLASS GUIDE

main69997-24010×6iJZZ30,UZZ3#199105-199401

9010510315

main90105-10315

9010510321

main90105-10321

9010510339

main90105-10339

9010906215

main90109-06215

9017906009

main90179-06009

9017906042

main90179-06042

9020204020

main90202-04020

9020907001

main90209-07001

9054005021

main90540-05021

9090241001

main90902-41001

9331914010

main93319-14010

29 parts on this diagram · 1 diagram in section
