ROOF PANEL & BACK WINDOW GLASS

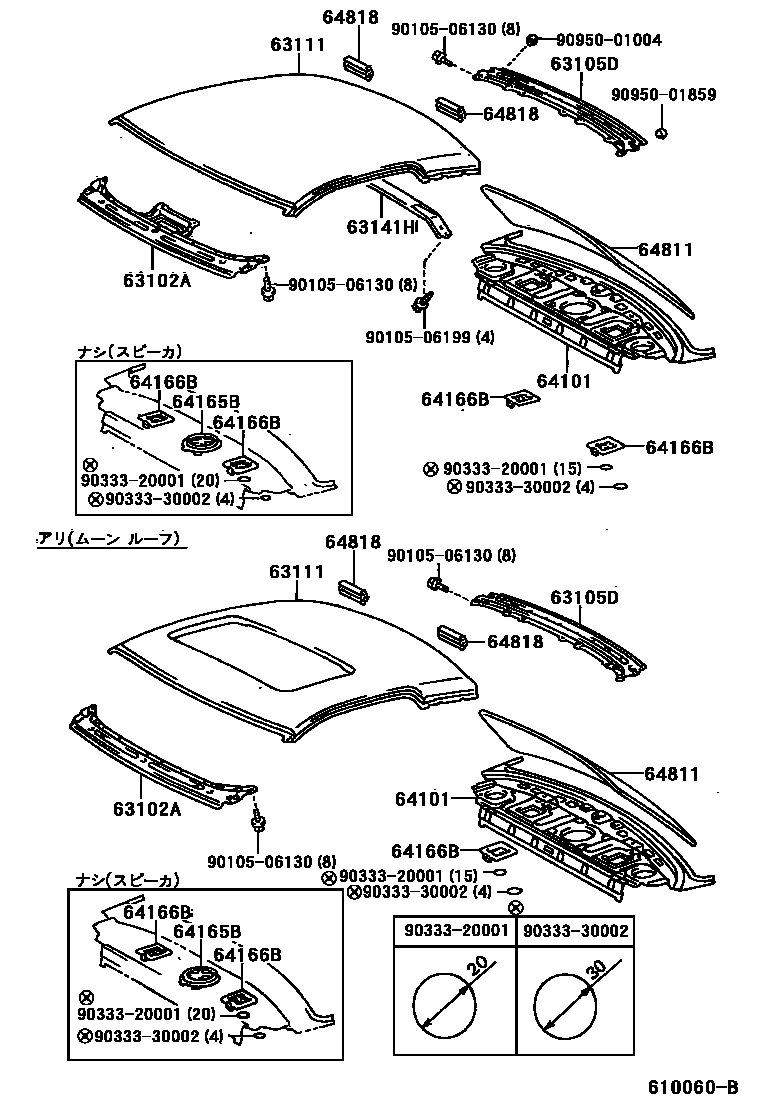

Parts diagram
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-24010i199105
main63102-24020i199105
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
main63105-24010i199105
63111PANEL, ROOF
main63111-24050i199105
main63111-24900i199105
63141HREINFORCEMENT, ROOF PANEL, CENTER
main63141-24030i199105
64101PANEL SUB-ASSY, UPPER BACK
main64101-24030i199105-199903
main64101-24031i199903
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
main64165-24020i199105-199401
64166BCOVER, UPPER BACK PANEL HOLE, NO.2
main64166-24020i199105-199401
main64166-24021×2i199903
64811GLASS, BACK WINDOW
main64801-24010i199105-199511
sub75571-24051
main64801-24020i199105-199511
sub75571-24051
sub85347-12010
sub85391-22010
sub90179-10015
main64801-24030i199105-199511
sub75571-24051
main64801-24040i199105-199511
sub75571-24051
sub85347-12010
sub85391-22010
sub90179-10015
main64801-24050i199105-199511
sub75571-24051
main64801-24060i199207-199209
sub75571-24051
sub85347-12010
sub85391-22010
sub90179-10015
main64801-24100i199505-199511
sub75571-24051
main64801-24110i199505-199511
sub75571-24051
sub85347-12010
sub85391-22010
sub90179-10015
main64811-24142i199511-199608
main64811-24162i199511-199608
main64811-24182i199511-199608
main64811-24232i199511-199608
main64811-24250i199608
main64811-24270i199608
main64811-24300i199608
main64811-24320i199608
main64811-24900i199511-199608
main64811-24901i199511-199608
main64811-24902i199511-199608
main64811-24903i199511-199608
main64811-24904i199608
main64811-24905i199608
main64811-24906i199608
main64811-24907i199608
64818SPACER, BACK WINDOW GLASS
main64818-24040×2i199105
9010506130
main90105-06130
9010506199
main90105-06199
9033320001
main90333-20001
9033330002
main90333-30002
9095001004
main90950-01004
9095001859
main90950-01859

15 parts on this diagram · 2 diagrams in section
