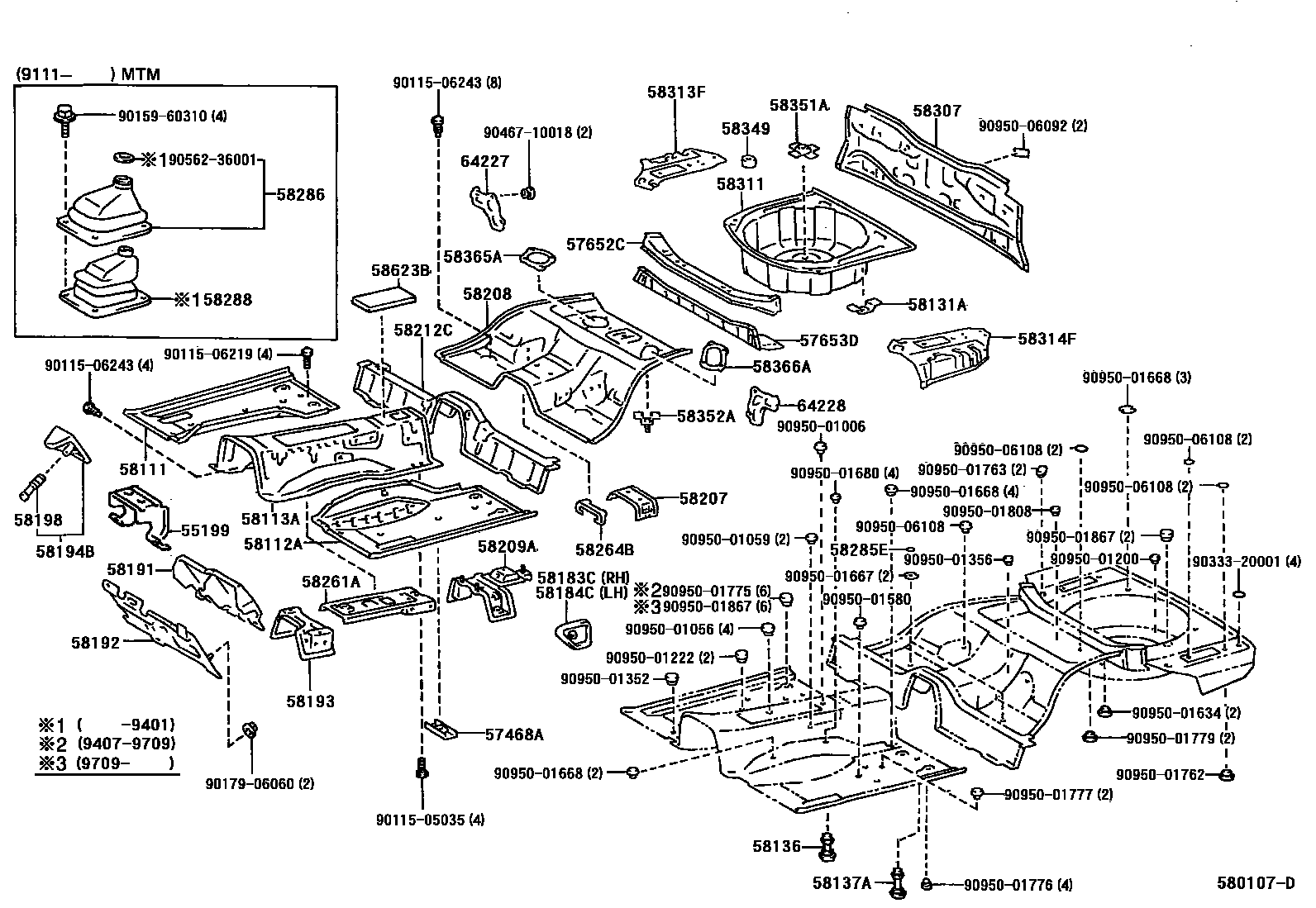

FLOOR PAN & LOWER BACK PANEL
55199COVER, DASH PANEL COMPUTER
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
58111PAN, FRONT FLOOR
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58136COVER, FRONT FLOOR HOLE
58137ASEAL, FRONT FLOOR HOLE
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58192PANEL, FOOTREST
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58194BFOOTREST, FRONT FLOOR, NO.3
58198CLIP, FOOTREST
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58261ACOVER, TRANSMISSION
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58285ECOVER, CENTER FLOOR HOLE
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58349CUSHION, REAR FLOOR SIDE
58351ABRACKET, SPARE WHEEL CARRIER
58352ABRACKET, REAR FLOOR STAY
58365ABRACKET, FUEL TANK SUPPORT, RH
58366ABRACKET, FUEL TANK SUPPORT, LH
58623BPAD, FRONT FLOOR SILENCER, CENTER
64227EXTENSION, CENTER FLOOR TO BRACE
64228EXTENSION, CENTER FLOOR TO BRACE, NO.2
9011505035
9011506219
9011506243
9015960310
9017906060
9033320001
9046710018
9056236001
9095001006
9095001056
9095001059
9095001200
9095001222
9095001352
9095001356
9095001580
9095001634
9095001667
9095001668
9095001680
9095001762
9095001763
9095001775
9095001776
9095001777
9095001779
9095001808
9095001867
9095006092
9095006108
68 parts on this diagram · 2 diagrams in section
