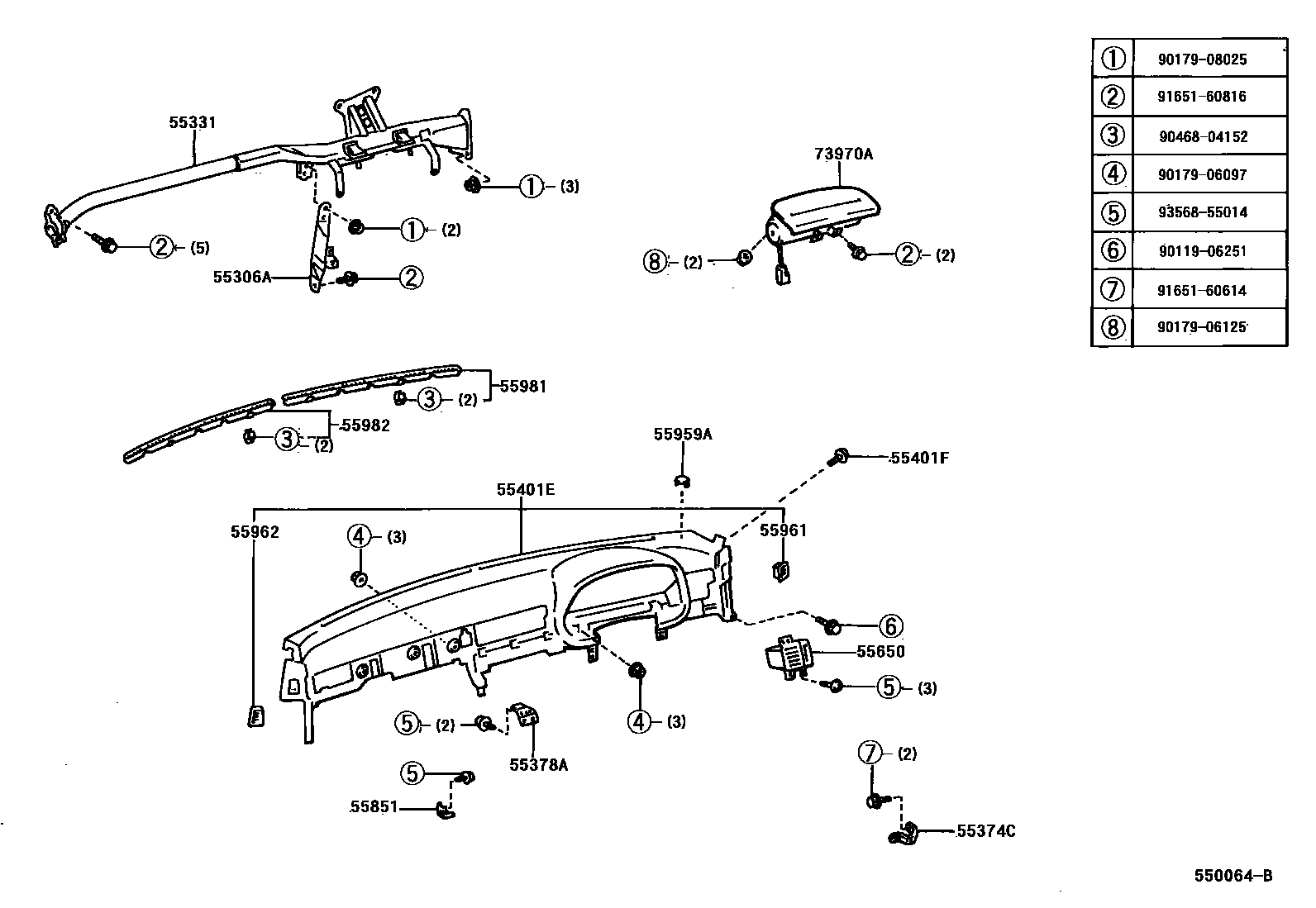

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM2#
OAK,TRIM0#
DK.SPRUCE GRAY,TRIM6#
55401FCLIP(FOR SAFETY PAD)
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55851RETAINER, AIR DUCT NO.1
55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
BLACK,TRIM2#
OAK,TRIM0#
DK.SPRUCE GRAY,TRIM6#
BLACK,TRIM2#
OAK,TRIM0#
9011906251
main90119-06251
9017906097
main90179-06097
9017906125
main90179-06125
9017908025
main90179-08025
9046804152
main90468-04152
9165160614
main91651-60614
9165160816
main91651-60816
9356855014
main93568-55014
22 parts on this diagram · 2 diagrams in section
