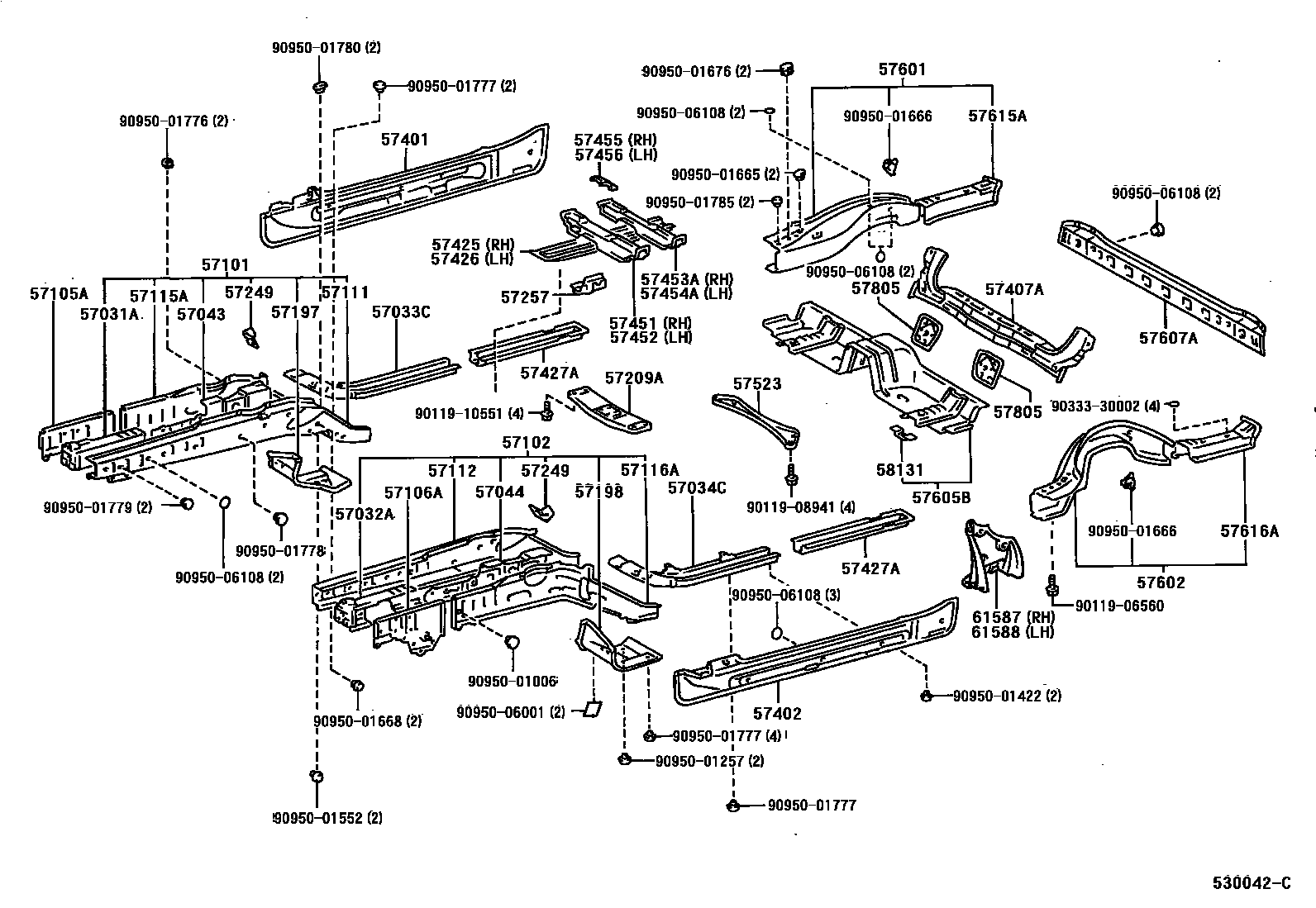

FLOOR SIDE MEMBER

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-24010iJZZ3#,UZZ3#199105-199608

main57031-24020iJZZ3#,UZZ31199608

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-24010iJZZ3#,UZZ3#199105-199608

main57032-24020iJZZ3#,UZZ31199608

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-24010iJZZ30,UZZ3#199105-199209

main57033-24011iJZZ3#,UZZ3#199209-199505

main57033-24012iJZZ3#,UZZ3#199505

57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH

main57034-24010iJZZ30,UZZ3#199105-199209

main57034-24011iJZZ3#,UZZ3#199209-199505

main57034-24012iJZZ3#,UZZ3#199505

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-24010iJZZ3#,UZZ3#199105

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-24010iJZZ3#,UZZ3#199105

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-24050iUZZ32199105-199401

main57101-24904×2iJZZ30,UZZ30199105-199401

sub90950-01832

main57101-24905iUZZ31199105-199401

sub90950-01832

main57101-24906iJZZ3#199401-199608

main57101-24907iUZZ3#199401-199608

main57101-24908iJZZ3#199608

main57101-24909iUZZ31199608-199709

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-24050iUZZ32199105-199401

main57102-24905iJZZ30,UZZ30199105-199401

sub90950-01832

main57102-24906iUZZ31199105-199401

sub90950-01832

main57102-24907iJZZ3#199401-199608

main57102-24908iUZZ3#199401-199608

main57102-24909iJZZ3#199608

main57102-24910iUZZ31199608-199709

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-24020iJZZ3#,UZZ3#199105-199608

main57105-24021iJZZ3#,UZZ31199608

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-24020iJZZ3#,UZZ3#199105

57111MEMBER, FRONT SIDE, RH

main57111-24030iUZZ31199401-199505

sub90950-01832

main57111-24031iJZZ3#,UZZ32199401-199505

57112MEMBER, FRONT SIDE, LH

main57112-24020iJZZ3#,UZZ30199105-199505

sub90950-01832

main57112-24021iJZZ3#199505

main57112-24030iUZZ31199401-199505

sub90950-01832

main57112-24031iUZZ3#199505-199709

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-24020iJZZ3#,UZZ30199105

main57115-24030iUZZ31,32199105-199709

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-24020iJZZ3#,UZZ3#199105

57197BOX, TORQUE, FRONT RH

main57197-24020iJZZ3#,UZZ3#199105

57198BOX, TORQUE, FRONT LH

main57198-24020iJZZ3#,UZZ3#199105

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-24060iJZZ3#,UZZ3#199105-199505

main57255-24061iJZZ3#,UZZ3#199505

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-24010iJZZ3#,UZZ3#199105

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-24020iJZZ3#,UZZ3#199105

main57258-24020iJZZ3#,UZZ3#199105

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-24030iJZZ3#,UZZ3#199105

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-24030iJZZ3#,UZZ3#199105

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-24020iJZZ3#,UZZ3#199105

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-24030iJZZ3#,UZZ3#199105

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57425-24030iJZZ3#,UZZ3#199105

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-24010×2iJZZ3#,UZZ3#199105

57451MEMBER, FRONT FLOOR CROSS

main57451-24020iJZZ3#,UZZ3#199105

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-24010iJZZ3#,UZZ3#199105

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-24010iJZZ3#,UZZ3#199105

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-24010iJZZ3#,UZZ3#199105

57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-24020iJZZ3#,UZZ3#199105

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-24020iJZZ3#,UZZ3#199105

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-24010iJZZ3#,UZZ3#199105

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-24900iJZZ30,UZZ3#199105-199401

main57601-24901iJZZ3#,UZZ3#199401

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-24900iJZZ30,UZZ3#199105-199401

main57602-24901iJZZ3#,UZZ3#199401

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-24010iJZZ3#,UZZ3#199105

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-24010iJZZ3#,UZZ3#199105

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-24900iJZZ3#,UZZ3#199105

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-24900iJZZ3#,UZZ3#199105

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-24010iJZZ3#,UZZ3#199105

main57806-24010iJZZ3#,UZZ3#199105

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

61587GUSSET, CENTER DOOR PILLAR, FRONT LH

main61587-24010iJZZ3#,UZZ3#199401

61588GUSSET, CENTER DOOR PILLAR, REAR LH

main61588-24010iJZZ3#,UZZ3#199401

9011906560

main90119-06560

9011908941

main90119-08941

9011910551

main90119-10551

9033330002

main90333-30002

9095001006

main90950-01006

9095001257

main90950-01257

9095001422

main90950-01422

9095001552

main90950-01552

9095001665

main90950-01665

9095001666

main90950-01666

9095001668

main90950-01668

9095001676

main90950-01676

9095001776

main90950-01776

9095001777

main90950-01777

9095001778

main90950-01778

9095001779

main90950-01779

9095001780

main90950-01780

9095001785

main90950-01785

9095006001

main90950-06001

9095006108

main90950-06108

62 parts on this diagram · 1 diagram in section
