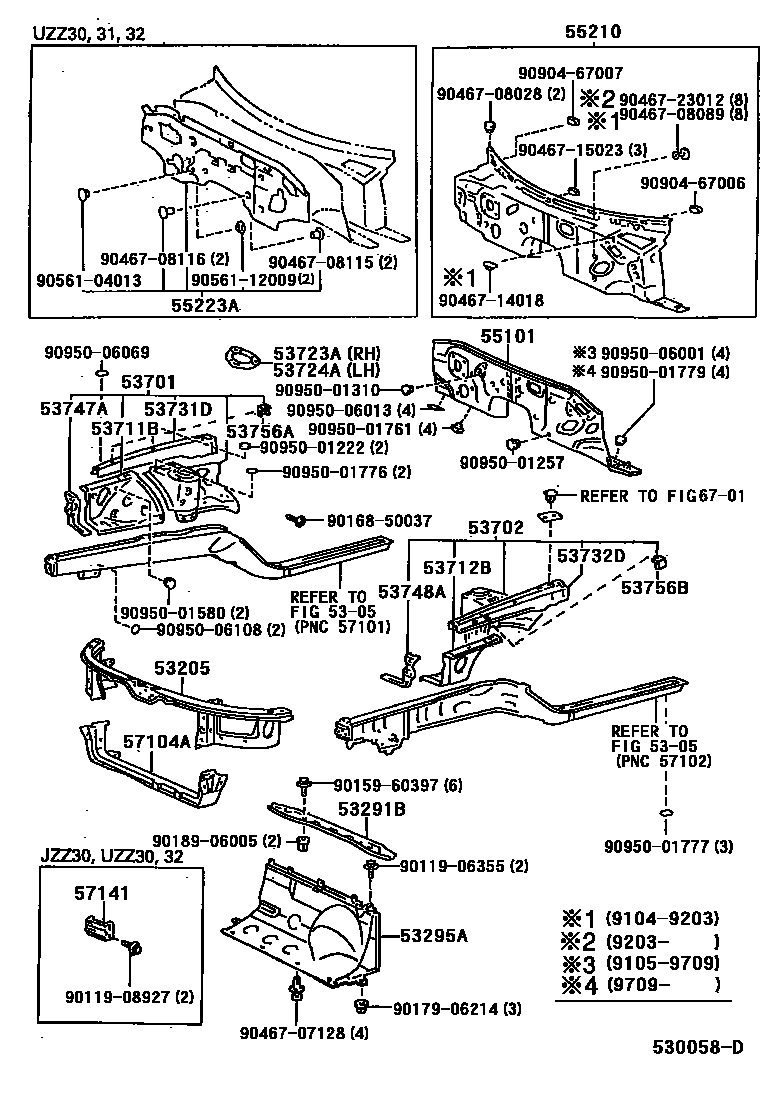

FRONT FENDER APRON & DASH PANEL
5305
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53291BPLATE, RADIATOR COVER
53295ADEFLECTOR, RADIATOR UPPER AIR
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53756ABRACKET, SPEED CONTROL MOUNTING
53756BBRACKET, SPEED, CONTROL MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
57141SUPPORT, FRONT BUMPER ARM, RH
6701
9011906355
main90119-06355
9011908927
main90119-08927
9015960397
main90159-60397
9016850037
main90168-50037
9017906214
main90179-06214
9018906005
main90189-06005
9046707128
main90467-07128
9046708028
main90467-08028
9046708089
main90467-08089
9046708115
main90467-08115
9046708116
main90467-08116
9046714018
main90467-14018
9046715023
main90467-15023
9046723012
main90467-23012
9056104013
main90561-04013
9056112009
main90561-12009
9090467006
main90904-67006
9090467007
main90904-67007
9095001222
main90950-01222
9095001257
main90950-01257
9095001310
main90950-01310
9095001580
main90950-01580
9095001761
main90950-01761
9095001776
main90950-01776
9095001777
main90950-01777
9095001779
main90950-01779
9095006001
main90950-06001
9095006013
main90950-06013
9095006069
main90950-06069
9095006108
main90950-06108
52 parts on this diagram · 1 diagram in section
