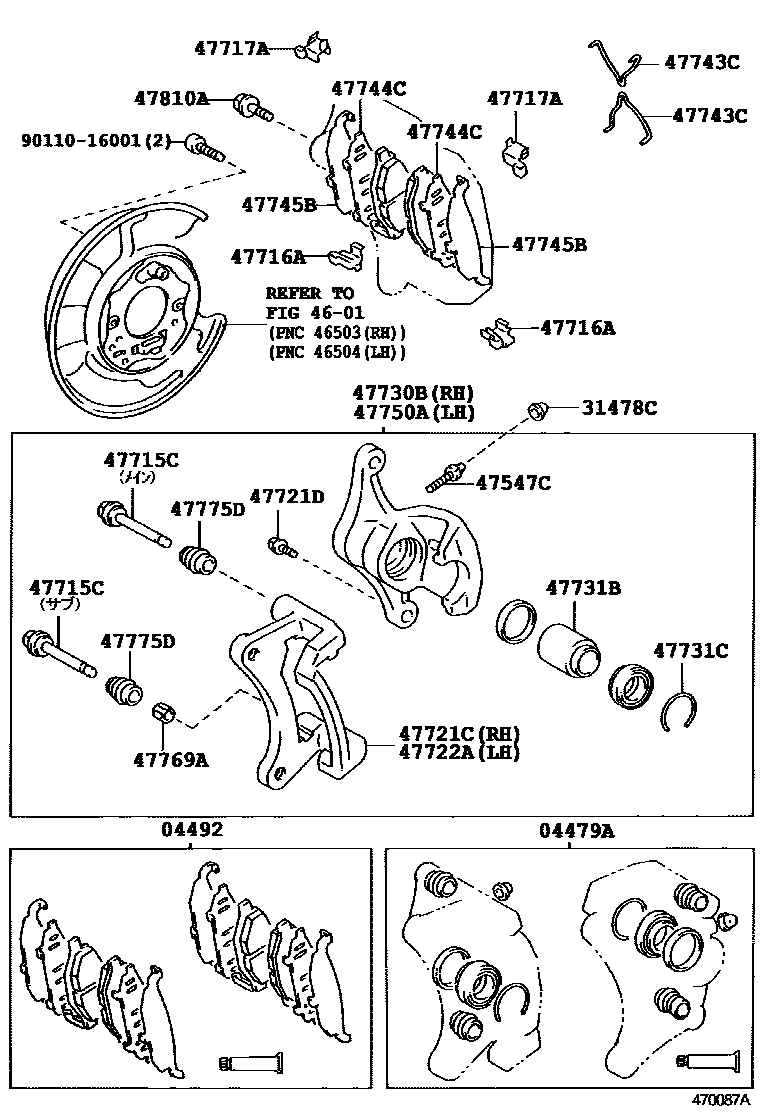

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-24030iJZZ3#,UZZ3#199105

04492PAD KIT, DISC BRAKE, REAR

main04492-24060iUZZ30,31199105-199401

sub04492-24100

main04492-24070iJZZ30,UZZ32199202-199401

sub04492-24080

main04492-24090iJZZ31,UZZ31199401-199505

sub04466-30020

main04492-50040iJZZ30,UZZ32199401-199505

sub04466-30030

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iJZZ3#,UZZ3#199105

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJZZ30199105-199905

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-50010iJZZ30199208-199905

main47715-50010iJZZ30,UZZ3#199105-199208

main47715-50030iJZZ30199208-199905

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-50020iJZZ3#,UZZ3#199105

main47716-50040iJZZ3#,UZZ3#199105

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-50020iJZZ3#,UZZ3#199105

main47717-50040iJZZ3#,UZZ3#199105

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-24050iJZZ30,UZZ30,31..GT,GTL,GTT199105-199908

main47721-24060iJZZ30,UZZ32199105-199608

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iJZZ30199105-199905

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-24050iJZZ30,UZZ30,31..GT,GTL,GTT199105-199908

main47722-24060iJZZ30,UZZ32199105-199608

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-24060iJZZ30,UZZ30,31..GT,GTL,GTT199105-199908

main47730-24070iJZZ3#199105-199608

47731BPISTON, REAR DISC BRAKE

main47731-50040iJZZ30199105-199905

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-50002iJZZ30199105-199905

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020iJZZ3#,UZZ3#199105

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-24020iJZZ3#,UZZ3#199105-199608

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-24020iJZZ3#,UZZ3#199105-199608

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-24060iJZZ31,UZZ30,31199105-199908

main47750-24070iJZZ3#199105-199608

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iJZZ3#,UZZ3#199105-199905

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-30070iJZZ3#200001

sub47775-50010

main47775-50010iJZZ3#,UZZ3#199105-200001

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJZZ3#,UZZ3#199105

9011016001

main90110-16001

22 parts on this diagram · 2 diagrams in section
