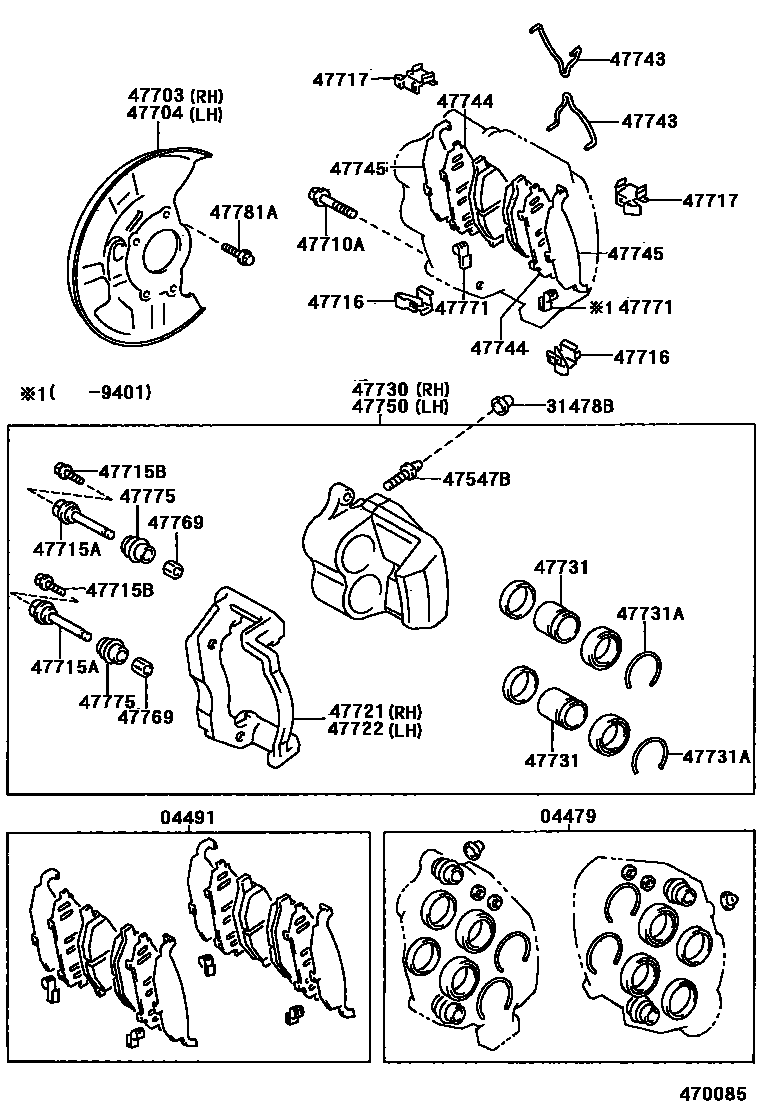

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-24011iJZZ30,UZZ32199105-199203

main04479-50030iJZZ30,UZZ30,31..GT,GTL,GTT199105-199203

04491PAD KIT, DISC BRAKE, FRONT

main04491-24031iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

main04491-24041iJZZ30,UZZ32199105-199401

main04491-24060iJZZ31,UZZ31199401-199503

main04491-24070iJZZ30199401-199505

main04491-24080iJZZ31,UZZ31199503-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-24030×2iJZZ30,UZZ32199105

main31478-30010×2iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

main47547-27040×2iJZZ31199608

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-24010iJZZ31,UZZ30,31199204-199908

main47703-24020iJZZ30,UZZ32199105-199401

main47781-14150iJZZ30,UZZ32199401-199608

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-24010iJZZ31,UZZ30,31199204-199908

main47704-24020iJZZ30,UZZ32199105-199401

main47782-14150iJZZ30,UZZ32199401-199608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iJZZ3#,UZZ3#199105

main90110-12005×4iJZZ30199204-199304

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-24010×4iJZZ3#199608-200012

main47715-50020×4iJZZ31,UZZ30,31199204-199908

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

main90109-08214×4iJZZ31199608

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010×2iJZZ30,UZZ32199105

main47716-24020×2iJZZ31199608

main47716-50010×2iJZZ31,UZZ30,31199204-199908

main47716-50030×2iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-24010×2iJZZ31199608

main47717-24020×2iJZZ31199608

main47717-50011×2iJZZ31,UZZ30,31199204-199908

main47717-50031×2iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14170iJZZ30,UZZ32199301-199608

main47721-24030iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

main47721-24040iJZZ30,UZZ32199105-199301

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-14060iJZZ3#199608

main47722-24030iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

main47722-24040iJZZ30,UZZ32199105-199301

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14250iJZZ30199304-199508

main47730-24040iUZZ30,31199204-199304

main47730-24041iJZZ31,UZZ30,31199304-199908

main47730-24050iJZZ30199105-199301

main47730-24051iJZZ30199301-199304

main47730-24080iJZZ30,UZZ32..ATM199105-199301

main47730-24081iJZZ30,UZZ32..ATM199301-199304

main47730-24082iJZZ30..ATM199608

47731PISTON, FRONT DISC BRAKE

main47731-14130×4iJZZ30,UZZ32199304-199608

main47731-24010×4iJZZ30,UZZ32199105-199304

main47731-50030×4iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50002×4iJZZ3#,UZZ3#199105-199908

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-24020×4iJZZ30,UZZ32199105

main47743-50030×4iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14130×4iJZZ30,UZZ32199304-199608

main47744-24010×4iJZZ30,UZZ32199105-199304

main47744-50010×4iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060×4iJZZ30,UZZ32199304-199608

main47745-24010×4iJZZ30,UZZ32199105-199304

main47745-50010×4iJZZ30,UZZ30,31..GT,GTL,GTT199105-199204

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14260iJZZ30199304-199508

main47750-24040iUZZ30,31199204-199304

main47750-24041iJZZ31,UZZ30,31199304-199908

main47750-24050iJZZ30199105-199301

main47750-24051iJZZ30199301-199304

main47750-24080iJZZ30,UZZ32..ATM199105-199301

main47750-24081iJZZ30,UZZ32..ATM199301-199304

main47750-24082iJZZ30..ATM199608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iJZZ30199908

main47769-50020×2iJZZ3#,UZZ3#199105-199908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010×2iJZZ31,UZZ31199401-199908

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010×2iJZZ30,UZZ3#199105-199401

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×8iJZZ3#,UZZ3#199111

main91611-60610×8iJZZ30,UZZ3#199105-199111

sub91611-B0610

24 parts on this diagram · 3 diagrams in section
